4
Getting Started
Getting StartedGetting Started
Getting Started
FS-SD550(A)/ GNT0008-010A/ English
CAUTION:
• Make all connections before plugging the System into an AC power outlet.

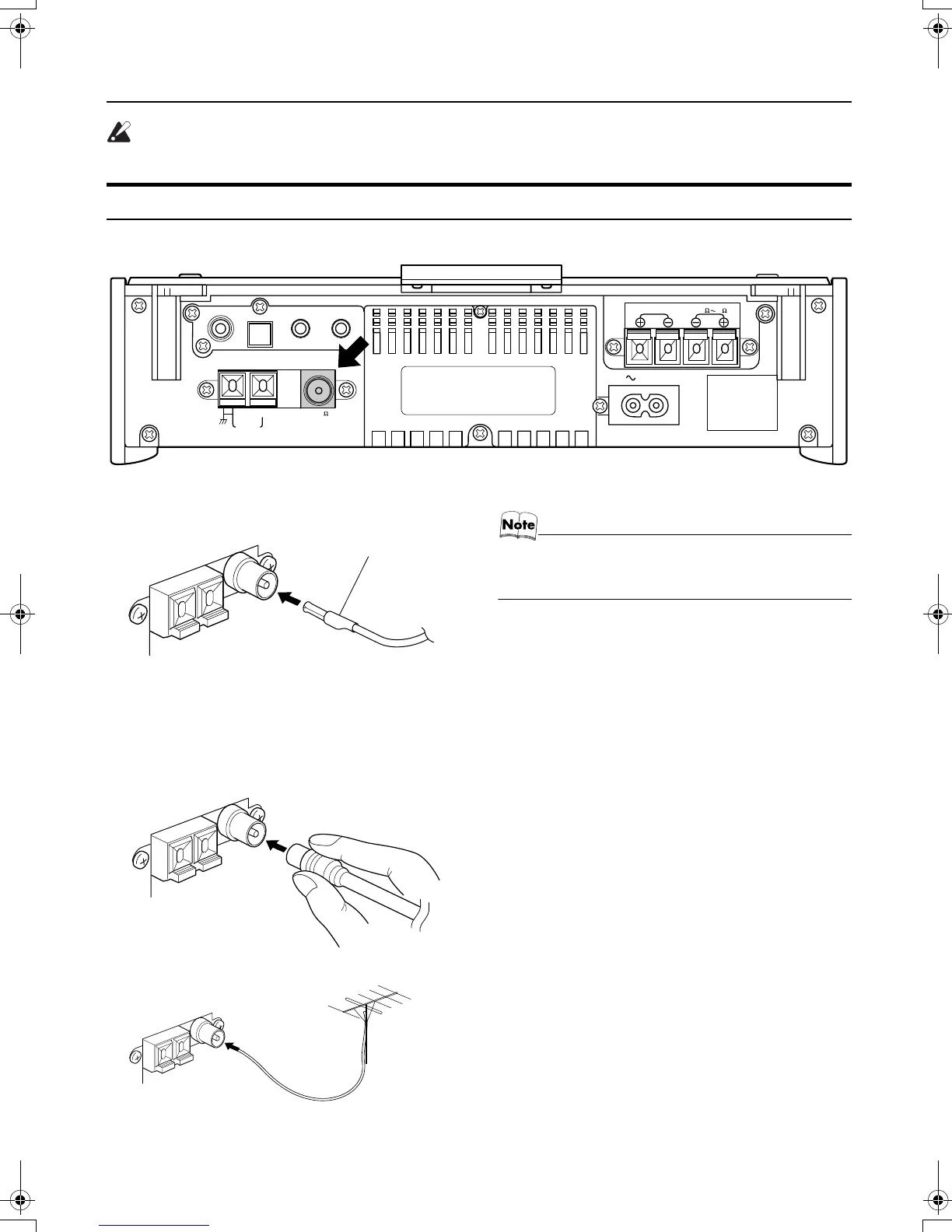

Connecting the FM Antenna
Rear Panel of the Unit
Using the Supplied Wire Antenna
Using the Coaxial Type Connector
(Not Supplied)
A 75-ohm antenna with coaxial type connector (IEC or
DIN45 325) should be connected to the FM 75-ohm CO-
AXIAL terminal.
If reception is poor, connect the outdoor antenna.
• Before attaching a 75 ohm coaxial lead (the kind with a
round wire going to an outdoor antenna), disconnect the
supplied FM Wire Antenna.
SUB WOOFER
CD DIGITAL OUT
ANTENNA
AM EXT FM
(
75
)
COAXIAL
AM LOOP
OUT IN
MD
/
AUX
SPEAKERS IMPEDANCE 4 16
R
AC IN
L
FM wire antenna (supplied)
Coaxial cable
FM outdoor
antenna
(Not supplied)
FS-SD5_01A.book Page 4 Friday, February 9, 2001 6:20 PM
To Next Page
