FS-SD5R/FS-SD7R/FS-SD9R

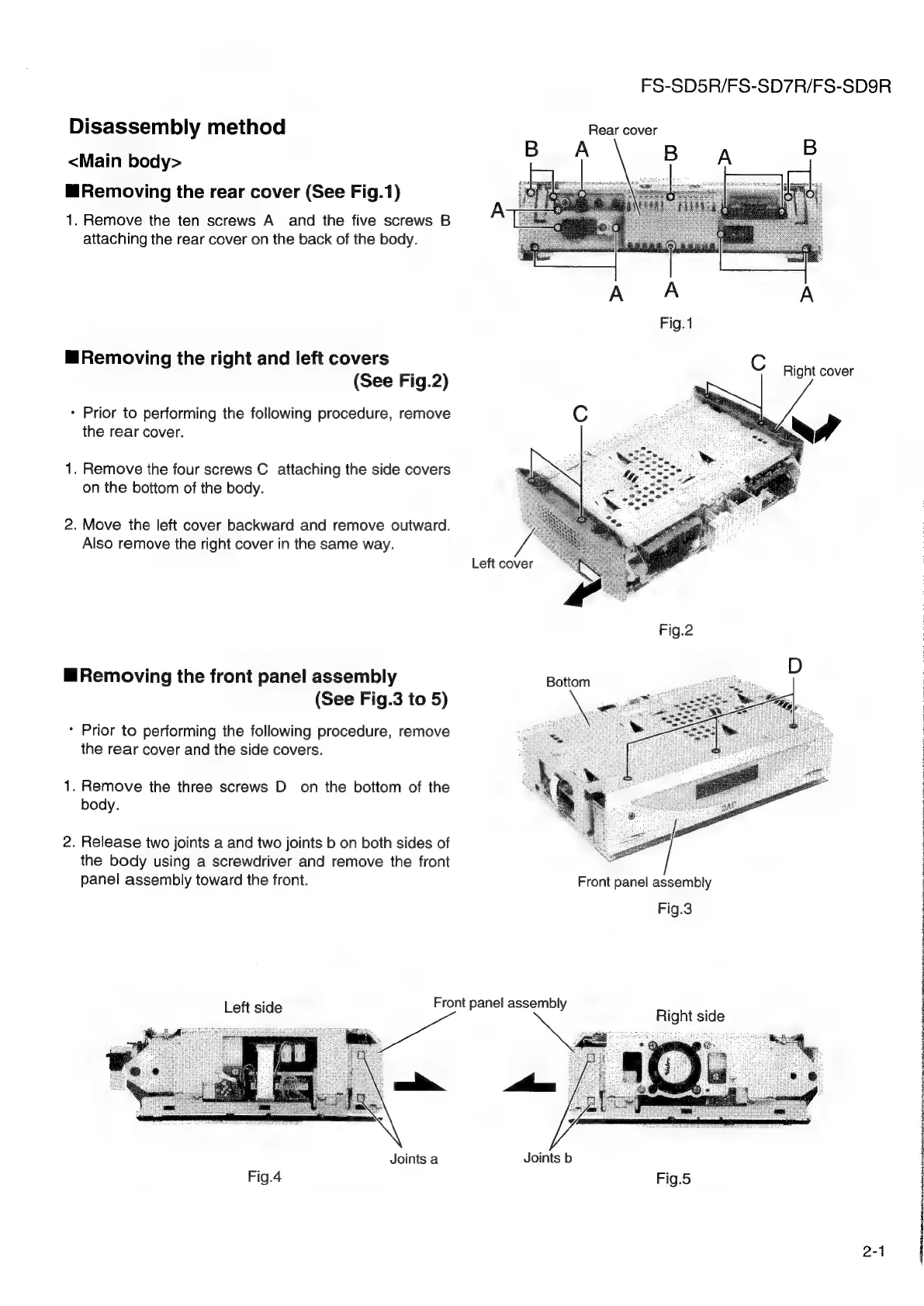

Disassembly method Rear cover
<Main body>
MRemoving the rear cover (See Fig.1)
1. Remove the ten screws A_ and the five screws B
attaching the rear cover on the back of the body.
A A A
MRemoving the right and left covers
(See Fig.2)
: Prior to performing the following procedure, remove
the rear cover.
1. Remove the four screws C attaching the side covers
on the bottom of the body.
2. Move the left cover backward and remove outward.
Also remove the right cover in the same way.
Left cover
Removing the front panel assembly
(See Fig.3 to 5)
* Prior to performing the following procedure, remove
the rear cover and the side covers.
1. Remove the three screws D on the bottom of the
body.
2. Release two joints a and two joints b on both sides of
the body using a screwdriver and remove the front
panel assembly toward the front. Front panel assembly
Fig.3
Left side Front panel assembly
Right side
Joints a Joints b
Fig.4 Fig.5
2-1
