FS-SD5R/FS-SD7R/FS-SD9R

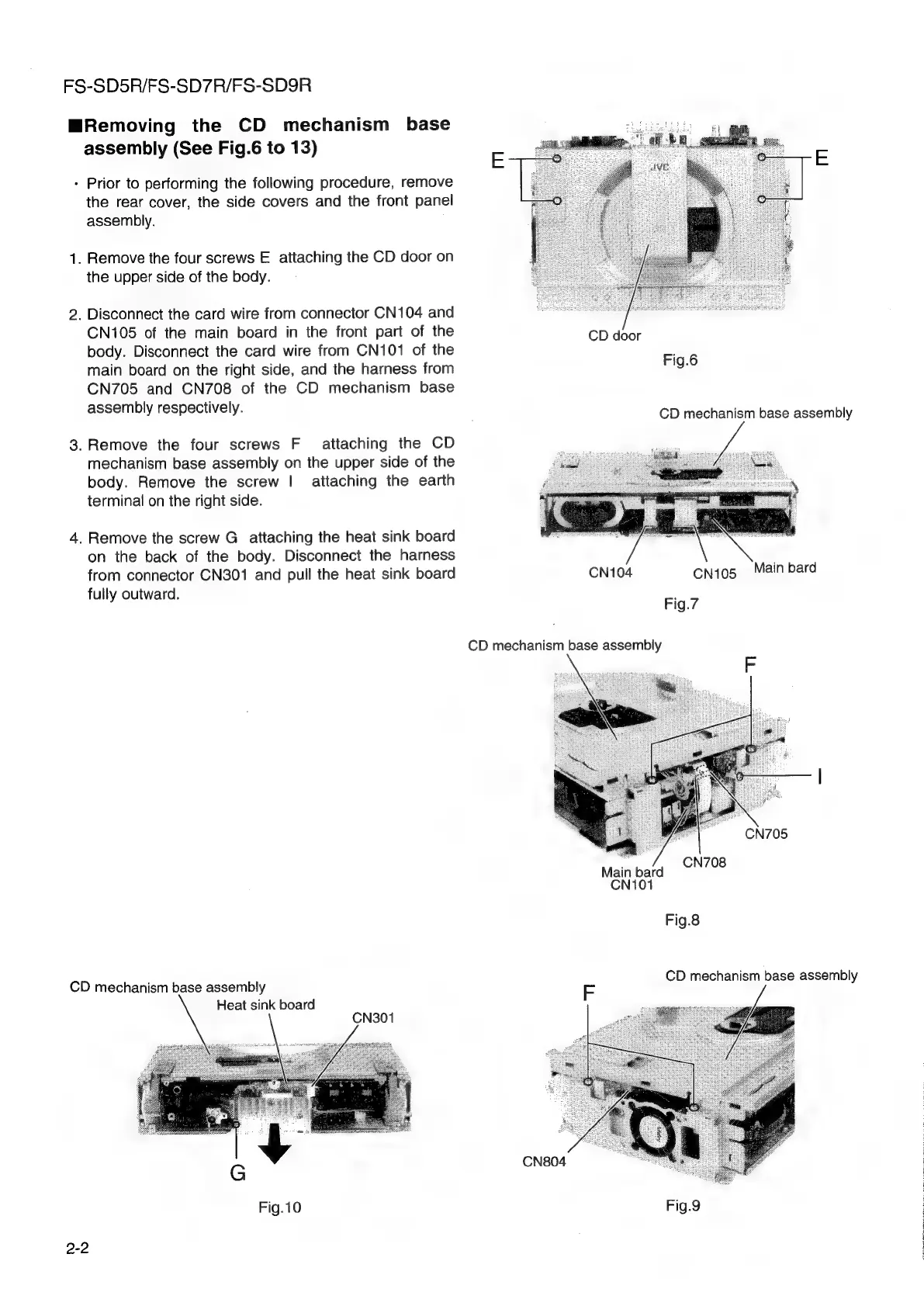

mMRemoving the CD mechanism base
assembly (See Fig.6 to 13)
- Prior to performing the following procedure, remove
the rear cover, the side covers and the front panel
assembly.
—_
. Remove the four screws E attaching the CD door on
the upper side of the body.
. Disconnect the card wire from connector CN104 and
CN105 of the main board in the front part of the
body. Disconnect the card wire from CN101 of the
main board on the right side, and the harness from
CN705 and CN708 of the CD mechanism base
assembly respectively.
iw)
3. Remove the four screws F_ attaching the CD
mechanism base assembly on the upper side of the
body. Remove the screw | attaching the earth
terminal on the right side.
4. Remove the screw G attaching the heat sink board
on the back of the body. Disconnect the harness
from connector CN301 and pull the heat sink board
fully outward.
CD mechanism base assembly
Heat sink board
CN301
2-2
CD door
Fig.6
CD mechanism base assembly
“\
Fig.7
CD mechanism base assembly
Main bard ON
CN101
Fig.8
CD mechanism base assembly
Fig.9
