4
CAUTION: Make all connections before plugging the System into an AC power outlet.

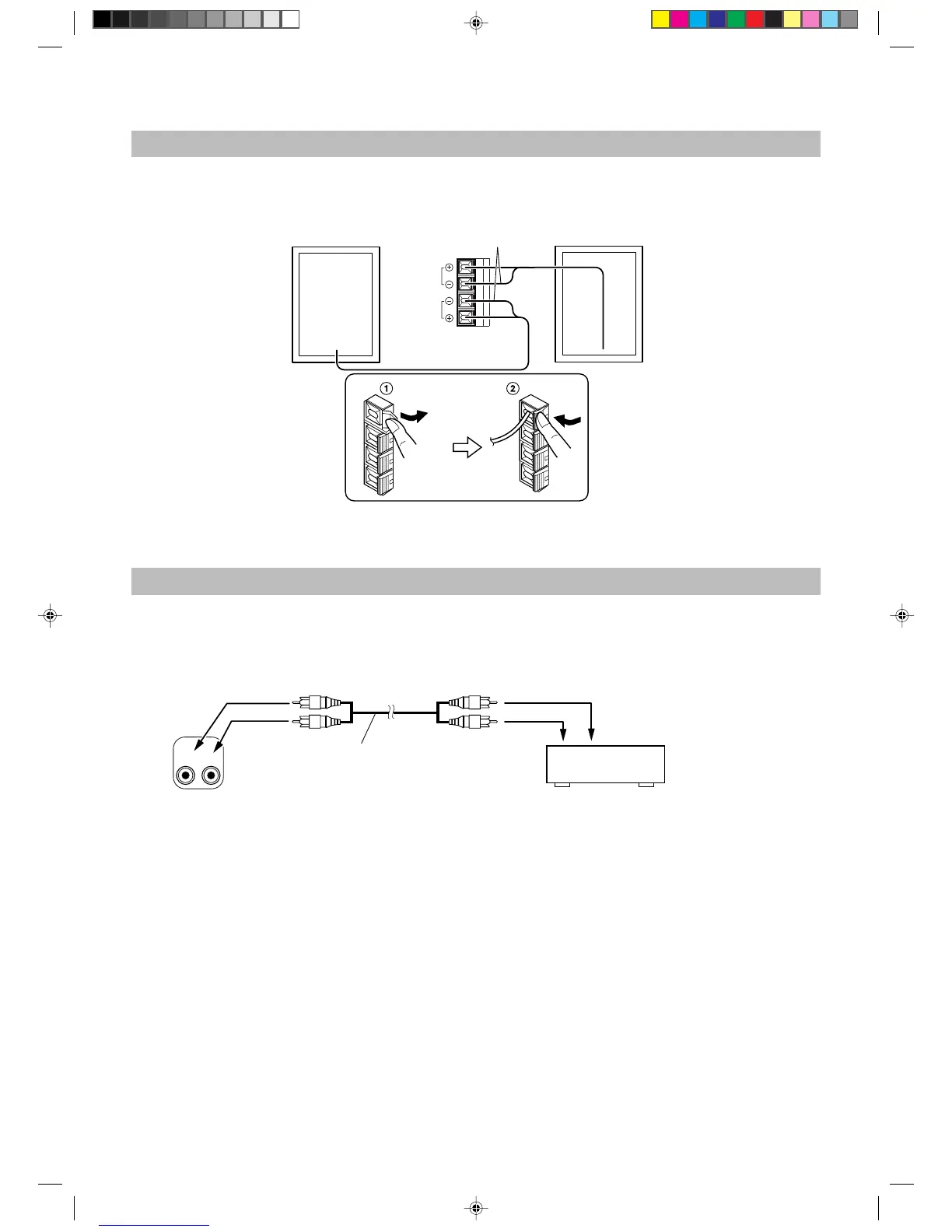

Connecting the Speakers
For each speaker, connect one end of the speaker wire to the speaker terminals on the back of the System.
1. Open each of the terminals and insert the speaker wires firmly, then close the terminals.
2. Connect the red (+) and black (–) wires of the right side speaker to the red (+) and black (–) terminals marked R on the System.
Connect the red (+) and black (–) wires of the left side speaker to the red (+) and black (–) terminals marked L on the System.
CAUTION:
If a TV is installed near the speakers, the picture on the TV may be distorted. If this happens, set the
speakers away from the TV.
Connecting External Equipment
You can connect an audio equipment — used only as a playback device.
Connect the audio output terminals on the other equipment and the LINE IN (AUX) terminals on the rear, using an audio cord (not supplied).
L
R
SPEAKERS
IMPEDANCE
MIN 4Ω
Right speaker (rear side)
Left speaker (rear side)
Black
LINE IN
(AUX)
RL
To audio output
Signal cord (not supplied)
MD recorder or
cassette deck (not supplied)
Pin-plug x 2Pin-plug x 2
EN01-09.FS-V100[J]f 12/12/00, 10:33 AM4
