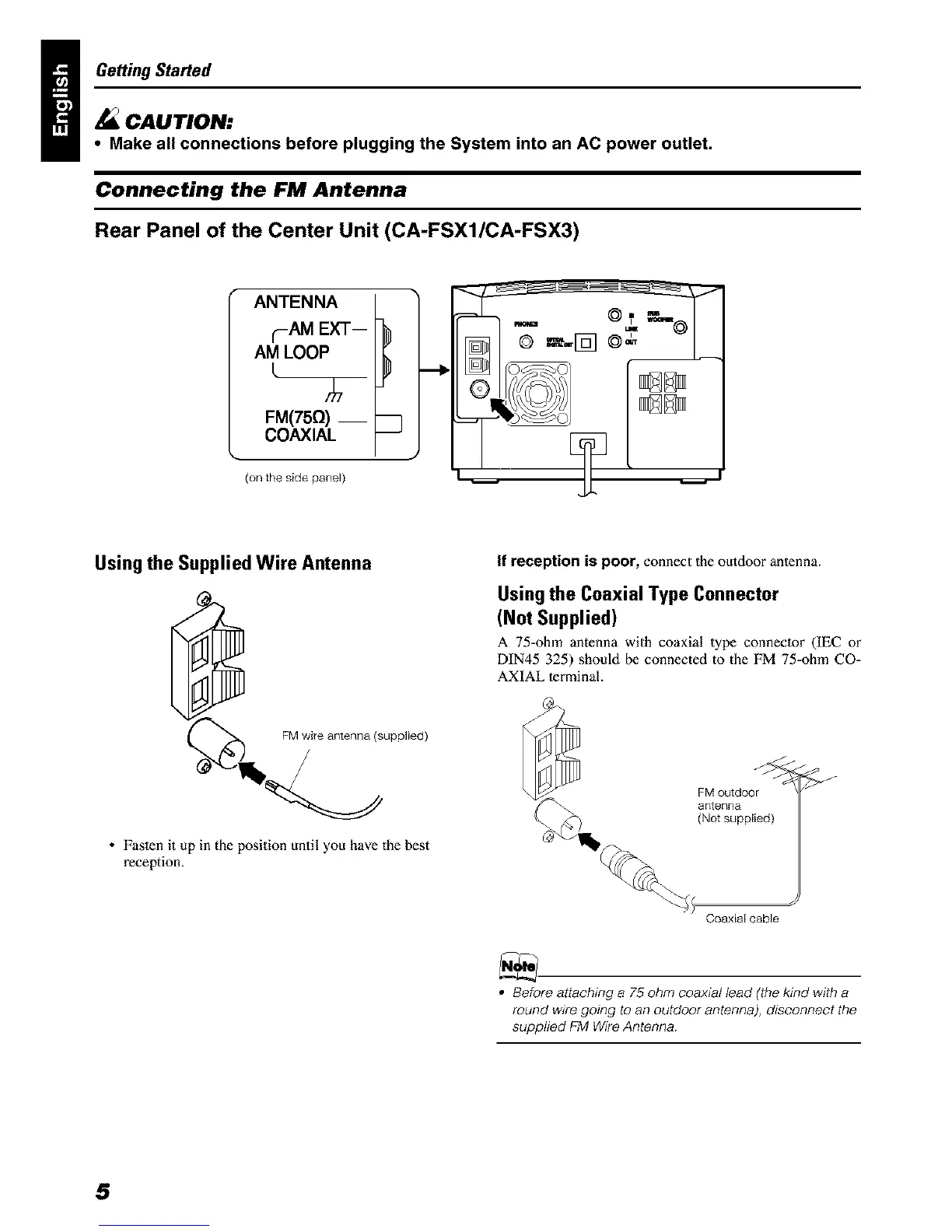

g Geeing Star_d
CAUTION:.
• Make all connections before plugging the System into an AC power ouUet.
Connecting the FM Antenna
Rear Panel of the Center Unit (CA-FSXt/CA-FSX3)
ANTENNA
uAM EXT--
AM LOOP
L__
7-
FM(75n) __
COAXIAL
(on the side panel)
B
Using the Supplied Wire Antenna
If reception is poor, connect the outdoor antenna.
Using the Coaxial Type Connector
(Not Supplied)
A 75-ohm antenna with coaxial type connector (IEC or
DIN45 325) should be connected to the FM 75-ohm CO-
AXIAL terminal.
FM wire antenna (supplied)
• Fasten it up in the position until you have the best
reception.
FM outdoor
antenna
(Not supplied)
Coaxial cable
• Before attaching a 75 ohm coaxJe,I lead (the kind with a
round wJTegoing to an outdoor antenna), disconnect the
supplied FM WJTeAntenna
