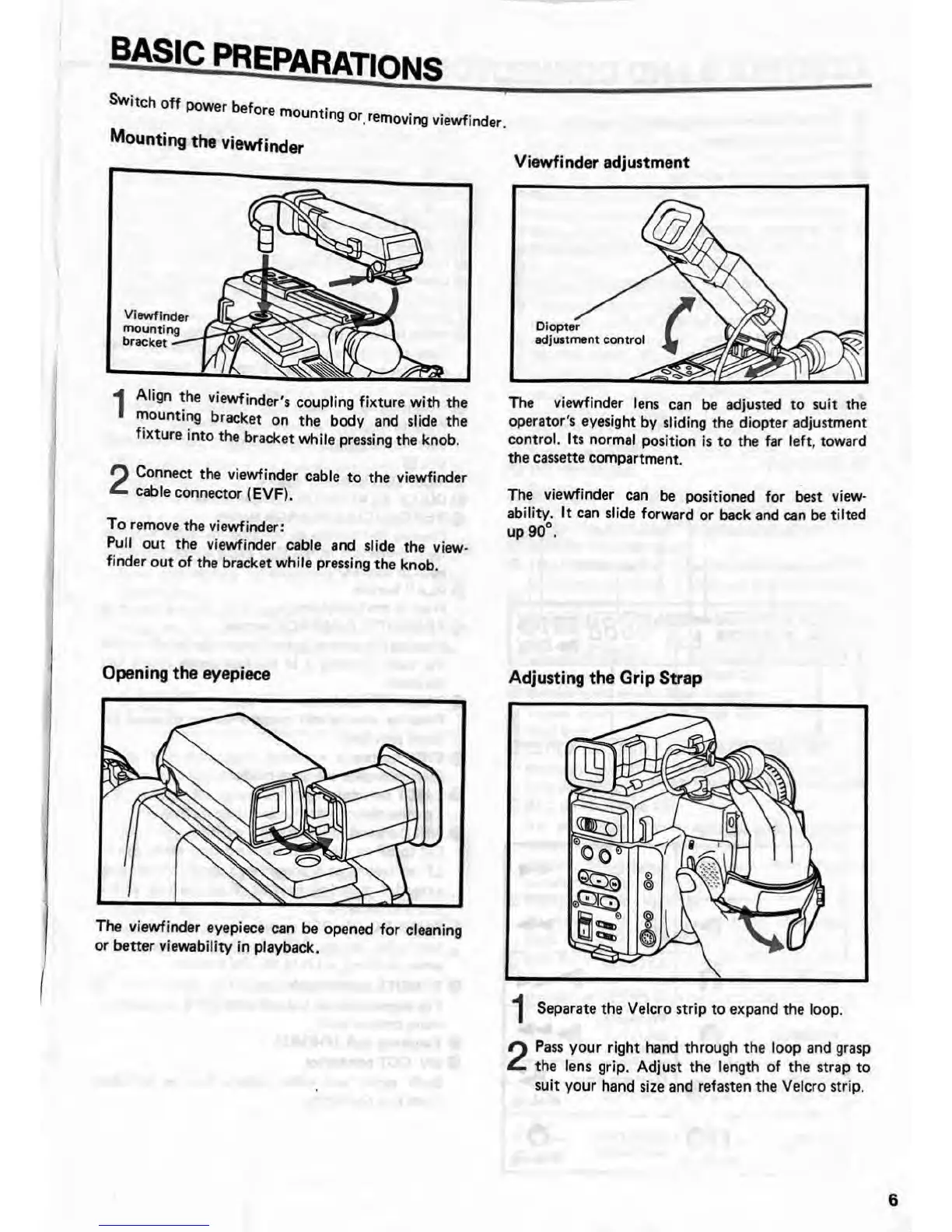

BAS jC PREPARATIONS
Switch of, p ™ , before mount . ng or remov|ni #iewfind!r
Mounting the viewfinder
*1 Align the viewfinder's coupling fixture with the
mounting bracket on the body and slide the
fixture into the bracket while pressing the knob.
2 Connect the viewfinder cable to the viewfinder
cable connector (EVF).
To remove the viewfinder:
Pull out the viewfinder cable and slide the view¬
finder out of the bracket while pressing the knob.
Viewfinder adjustment
Diopter
adjustment control
The viewfinder lens can be adjusted to suit the
operator's eyesight by sliding the diopter adjustment
control. Its normal position is to the far left, toward
the cassette compartment.
The viewfinder can be positioned for best view-
ability. It can slide forward or back and can be tilted
up 90°.
Opening the eyepiece
Adjusting the Grip Strap
The viewfinder eyepiece can be opened for cleaning
or better viewability in playback.
^ Separate the Velcro strip to expand the loop.
2 Pass your right hand through the loop and grasp
the lens grip. Adjust the length of the strap to
suit your hand size and refasten the Velcro strip.
6
