38 EN
PLAYBACK

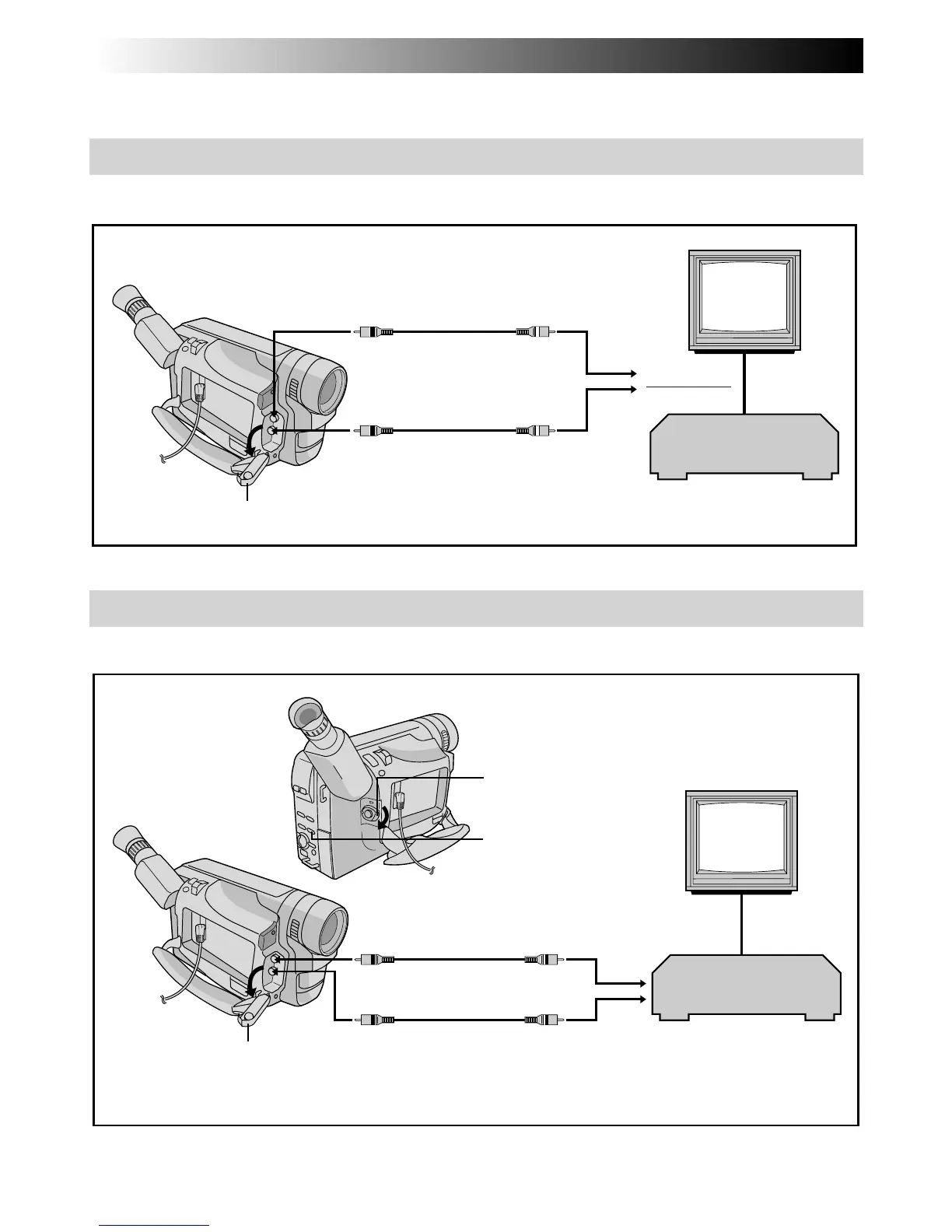

Basic Connections And Tape Dubbing
These are some basic types of connections. When making connections, refer also to your VCR and TV
instruction manuals.
A. Connection to a TV or VCR equipped with an S-VIDEO
Use the provided Video and Audio cables.
Basic Connections
Video cable (provided)
Audio cable (provided)
To Video
Output
To Audio
Output
TV
VCR
Connector cover*
To TV or VCR
A. Connection to a TV or VCR equipped with an S-VIDEO
Use the provided Video and Audio cables.
Connection For Tape Dubbing
* When connecting the cables, open this cover.
Power Switch
PLAY/PAUSE (
4
/6) Button
Connector cover*
Audio cable (provided)
To Video
Output
Video cable (provided)
VCR (Recording deck)
TV
To Audio
Output
To AUDIO and
VIDEO IN connectors
To AUDIO and
VIDEO IN connectors
To Next Page
