EN 27
Manual Focus
NOTE:
You should already have made the necessary viewfinder
adjustments (
Z
pg. 10). If you haven’t, do so before
continuing.

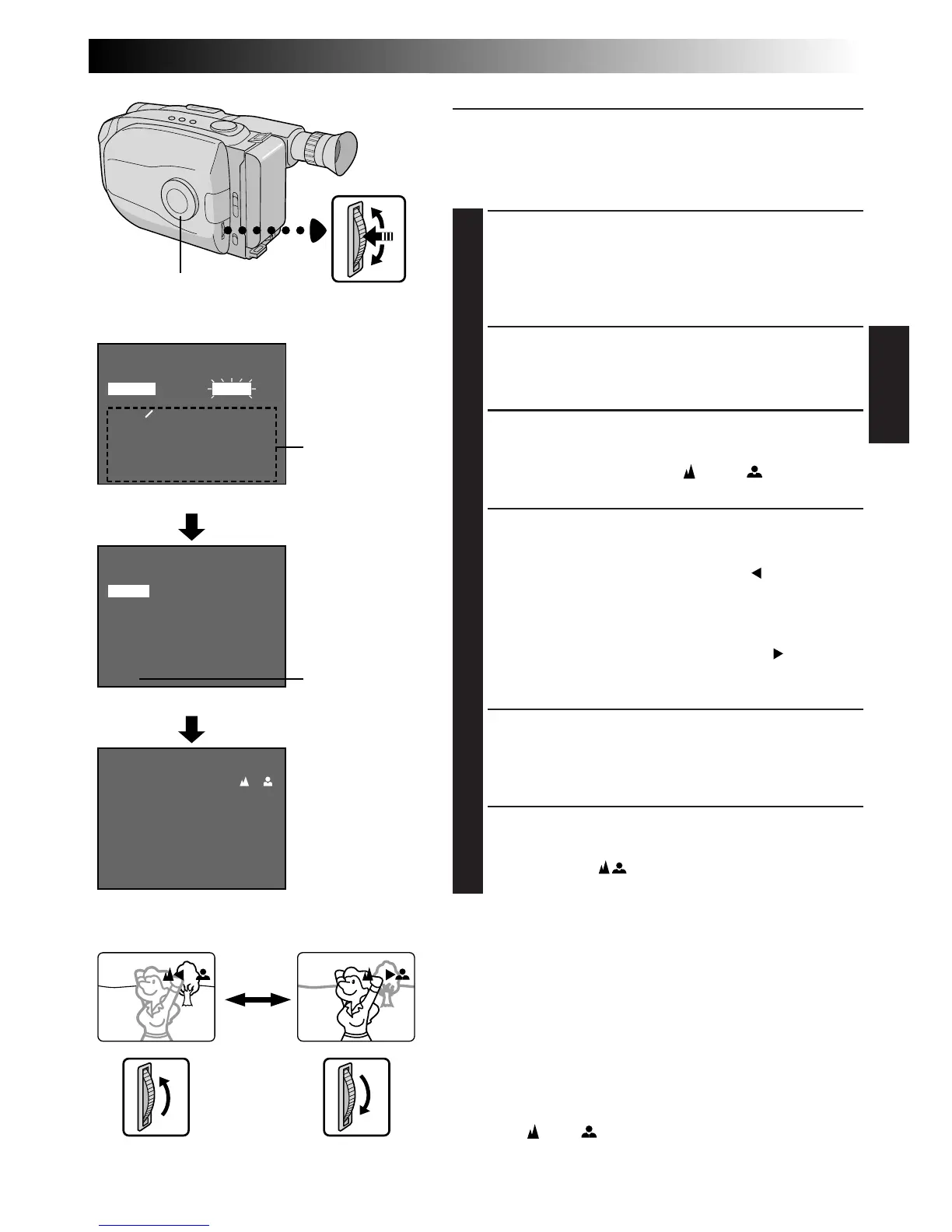

ACCESS MENU SCREEN
1
Turn the Select Dial to any position except AUTO
LOCK, then press the MENU Jog Dial. The Menu
Screen appears, and the highlight bar is placed on
FOCUS”.
ACCESS FOCUS MENU SCREEN
2
Press the MENU Jog Dial.
ACCESS MANUAL FOCUS
3
Rotate the MENU Jog Dial to move the highlight bar
to “MANU”, then press it. “
” and “ ” appear. The
focus is locked at this point.
ADJUST FOCUS
4
To farther subject . . .
Rotate the MENU Jog Dial upward. “ ” appears and
blinks.
Go to step 5.
To nearer subject . . .
Rotate the MENU Jog Dial downward. ” appears
and blinks.
Go to step 5.
END ADJUSTMENT OF FOCUS
5
Press the MENU Jog Dial. The Menu Screen
reappears and the highlight bar is placed on “MENU
END”.
CLOSE MENU
6
Press the MENU Jog Dial. The Menu Screen
disppears and “ ” reappears to indicate the focus
is locked.
NOTES:
To return to Auto Focus, select “AUTO” in step 3.
To re-adjust Manual Focus, repeat the procedure from
step 1.
Be sure to focus the lens in the maximum telephoto
position when you use the Manual Focus mode. If you
focus in on a certain subject in the wide-angle position,
sharply focused images cannot be obtained when
zoomed up because the depth-of-field is reduced at
longer focal lengths.
When the focus level cannot be adjusted any farther or
closer, “ ” or “ ” will blink.
AUTO
MANU
EXIT
FOCUS
MENU
4
MENU END
FOCUS
EXPOSURE
DATE TIME
TELE MACRO
TAPE LENGTH
M. W. B.
ZOOM SPEED
4
NEXT
AUTO
AUTO
25. 12. 98
OFF
T30
AUTO
FAST
Viewfinder
Manual Focus Screen
Focus Menu Screen
Menu Screen
MENU Jog Dial
Select Dial
No indication
during
recording
No indication
during
recording
