PLAYBACK
Connections

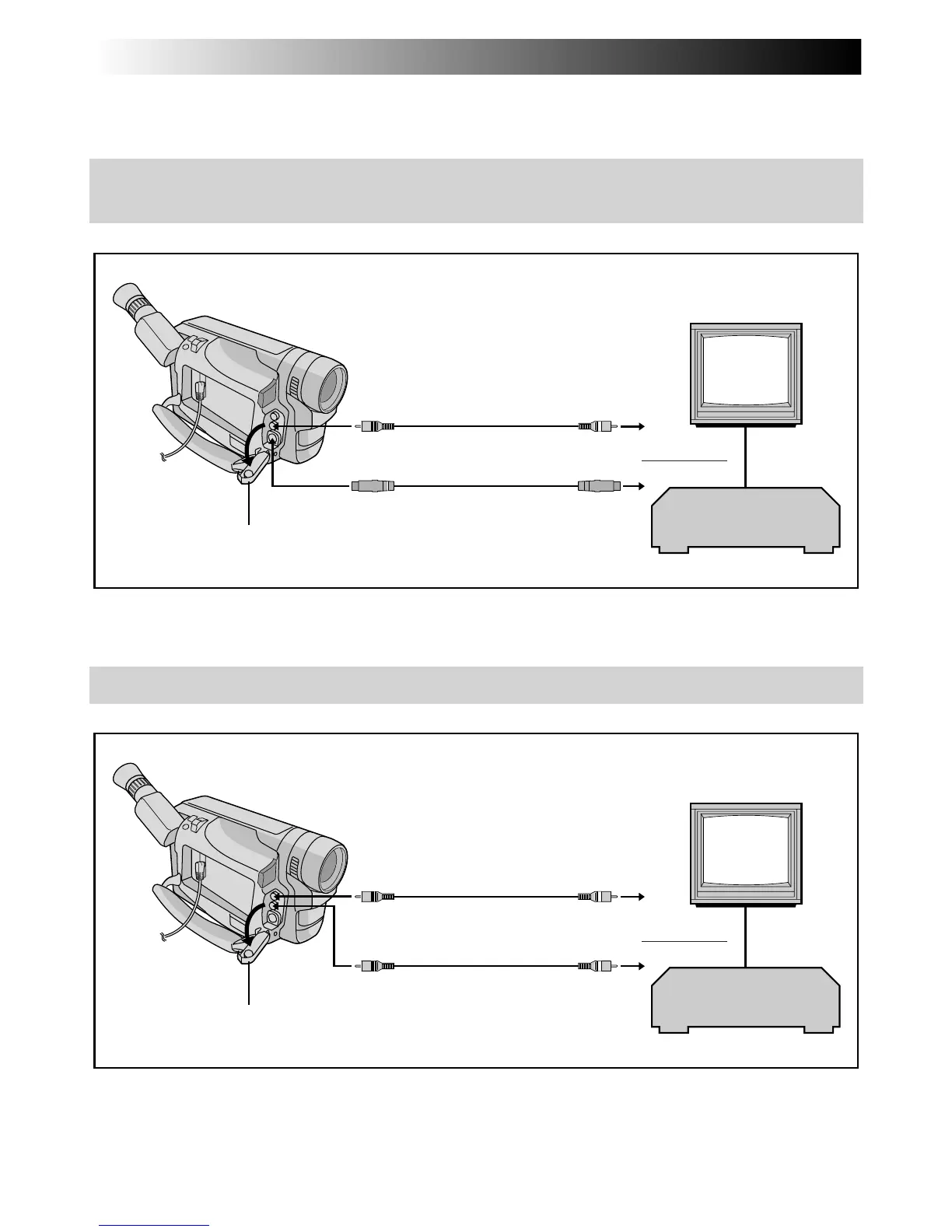

These are some basic types of connections. When making connections, refer also to your VCR and TV
instruction manuals.
Audio cable
(optional)
To Audio
Output
TV
VCR
(Recording deck)
Connector cover*
To TV or VCR
To AUDIO IN
* When connecting the cables, open this cover.
Connector cover*
Audio cable (optional)
To Video
Output
Video cable
(optional)
To
VIDEO IN
VCR
(Recording deck)
TV
To AUDIO INTo Audio Output
B. Connection to a TV or VCR equipped only with A/V input connectors
A.Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input
connectors (GR-SXM320/SX851 only)
To TV or VCR
To S-Video Output To S-VIDEO IN
S-Video cable (optional)
* When connecting the cables, open this cover.
