JVC GR-D350UC

1-12 (No.YF123)

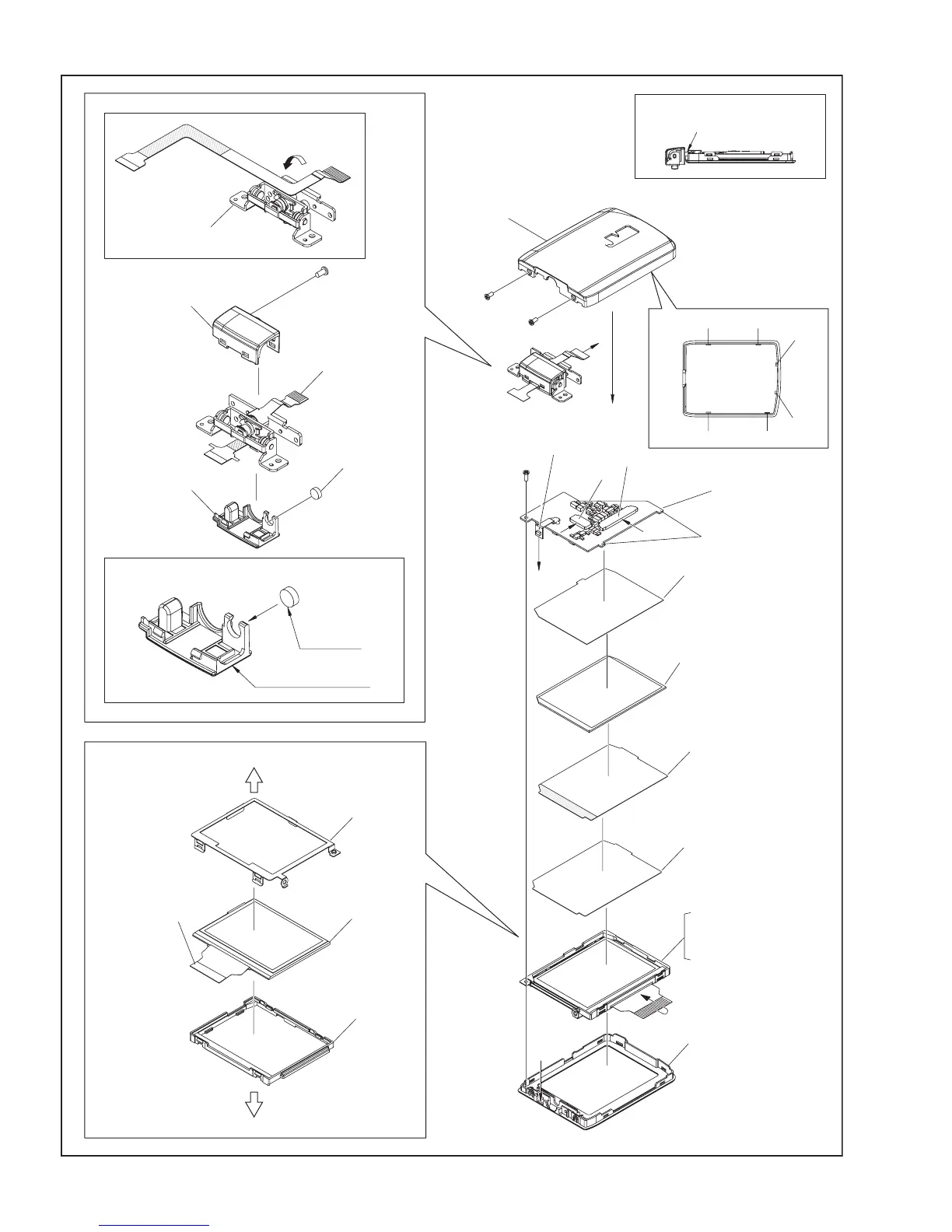

Fig.3-2-3
b
b
A
A
a
MAGNET
HINGE COVER(L)
MONITOR BOARD ASSY
M.COVER ASSY
L4g
SHEET(M.REF)
LIGHT GUIDE
SHEET(M.DIFF)
SHEET(BEF)
LCD CASE
LCD MODULE
S.CASE(MONI)
S.CASE(MONI)
MONITOR CASE SIDE
M.COVER ASSY SIDE
LCD MODULE
SUPPORT PLATE
SIDE
LCD CASE
MONITOR CASE
N pole
S pole
H.COVER(U)
HINGE ASSY
H.COVER(L)
MAGNET
<NOTE4a>
<NOTE4f>
<NOTE4d>
1
(S4a)
2
(S4a)
3
(S4a)
4
(S4b)
CN4a
U/D SW
BOARD
CN4b
aa
NOTE4e,f
FPC
NOTE4b
BOTTOM VIEW
L4b
L4c
L4f
L4e
L4a L4d
NOTE4c
