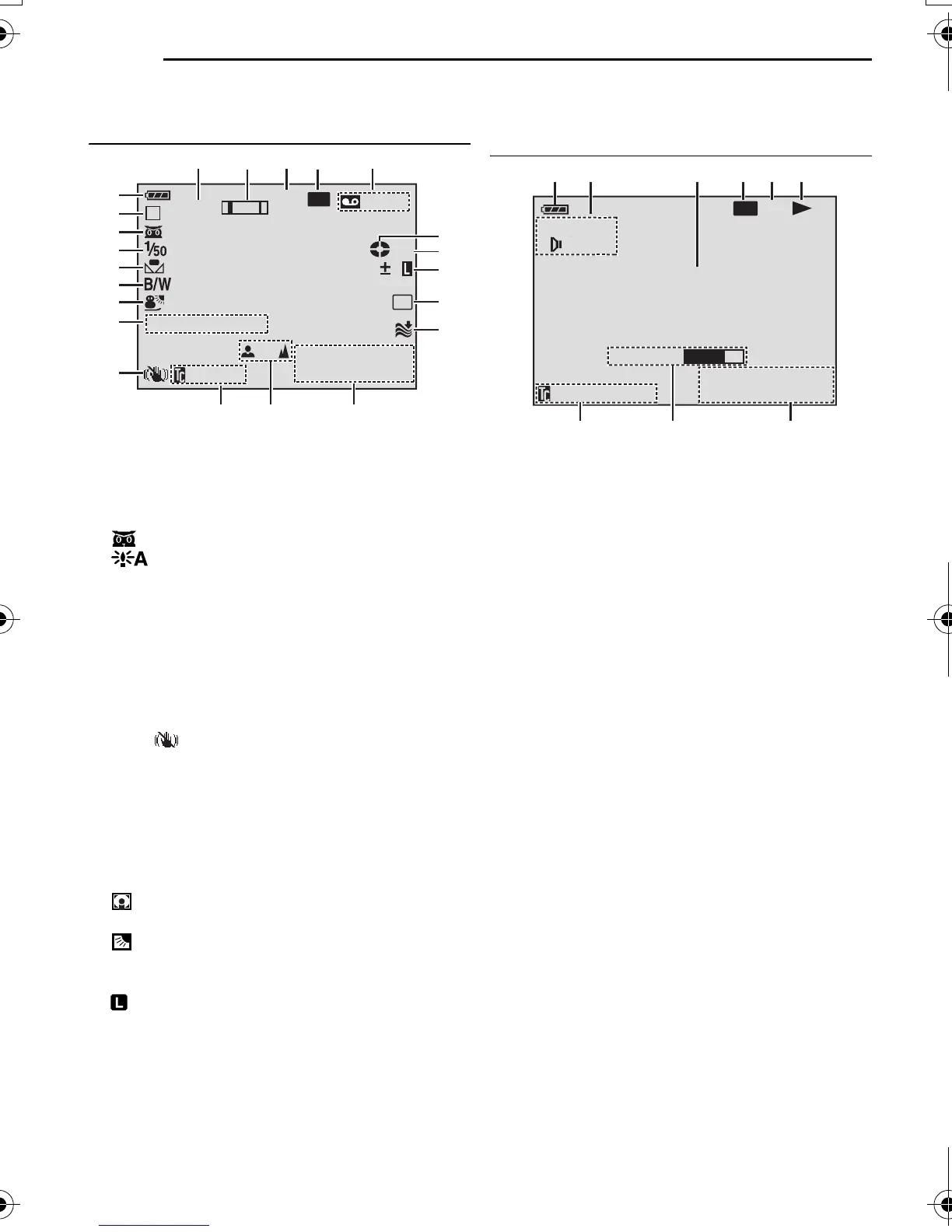

LCD Monitor/Viewfinder Indications
During Video Recording
a Battery Remaining Power Indicator
(墌 pg. 36)
B Operation Mode
A : Auto Mode
M : Manual Mode
C : Night Indicator (墌 pg. 32)
: Gain Up Mode (墌 pg. 25)
D Shutter Speed (墌 pg. 32)
E White Balance Indicator (墌 pg. 31)
F Selected Effect Indicator (墌 pg. 32)
G Selected Program AE Indicator (墌 pg. 32)
H SOUND 12BIT/16BIT: Sound Mode Indicator
(墌 pg. 26) (Appears for approx. 5 seconds
after turning on the camcorder.)
I Digital Image Stabiliser (“DIS”) (墌 pg. 25)
(only indicator is displayed)
J Time Code (墌 pg. 26)
K Manual Focus Adjustment Indicator
(墌 pg. 29)
L Date/Time (墌 pg. 26)
M Wind Cut Indicator (墌 pg. 25)
N Selected Wipe/Fader Effect Indicator
(墌 pg. 31)
O : Spot Exposure Control Indicator
(墌 pg. 30)
: Backlight Compensation Indicator
(墌 pg. 30)
±: Exposure Adjustment Indicator (墌 pg. 29)
: Iris Lock Indicator (墌 pg. 30)
P PHOTO: (Appears when taking Snapshot.)
REC: (Appears during recording.)
Q Tape Running Indicator
(Rotates while tape is running.)
R Tape Remaining Time (墌 pg. 18)
S Recording Speed Mode (SP/LP) (墌 pg. 25)
(only LP indicator is displayed)
T Selected Wide Mode Indicator (墌 pg. 18)
(only 16:9 indicator is displayed)
U Zoom Indicator (墌 pg. 19)
V Approximate Zoom Ratio (墌 pg. 19)
During Video Playback
a Battery Remaining Power Indicator
(墌 pg. 36)
B Sound L/R Indicator (墌 pg. 27)
C Blank Search Indicator (墌 pg. 22)
D Tape Speed (SP/LP)
(only LP indicator is displayed)
E Variable Search Speed Indicator: x-10, x-3,
x3 and x10 (墌 pg. 21)
F 4: Playback
5 : Fast-Forward/Shuttle Search
3 : Rewind/Shuttle Search
9: Pause
G Date/Time (墌 pg. 28)
H VOLUME: Volume Level Indicator (墌 pg. 21)
I Time Code (墌 pg. 28)
3
10 x
M
1
2
3
4
5
6
7
8
SOUND 12 BIT
15:55
9
0
q
11:13
12. 6. 2007
REC
i
w
r
t
y
u
e
W H
LP
– – –min
16:9
a
o
p
s
L
2 0 :2
V
1
O
:
L
2
1 2
. . 200
7
x3
6
U
5
M E
11:13
21
3
4
65
7
8
9
12 BIT/MIX
LP
BLANK SEARCH
PUSH "STOP" BUTTON
TO CANCEL
L
2 0 :2
V
1
O
:
L
2
1 2
. . 200
7
x3
6
U
5
M E
11:13
21
3
4
6
5
7
8
9
12 BIT/MIX
LP
BLANK SEARCH
PUSH "STOP" BUTTON
TO CANCEL
