80 EN
y
u
Qp
TRE
W
i o

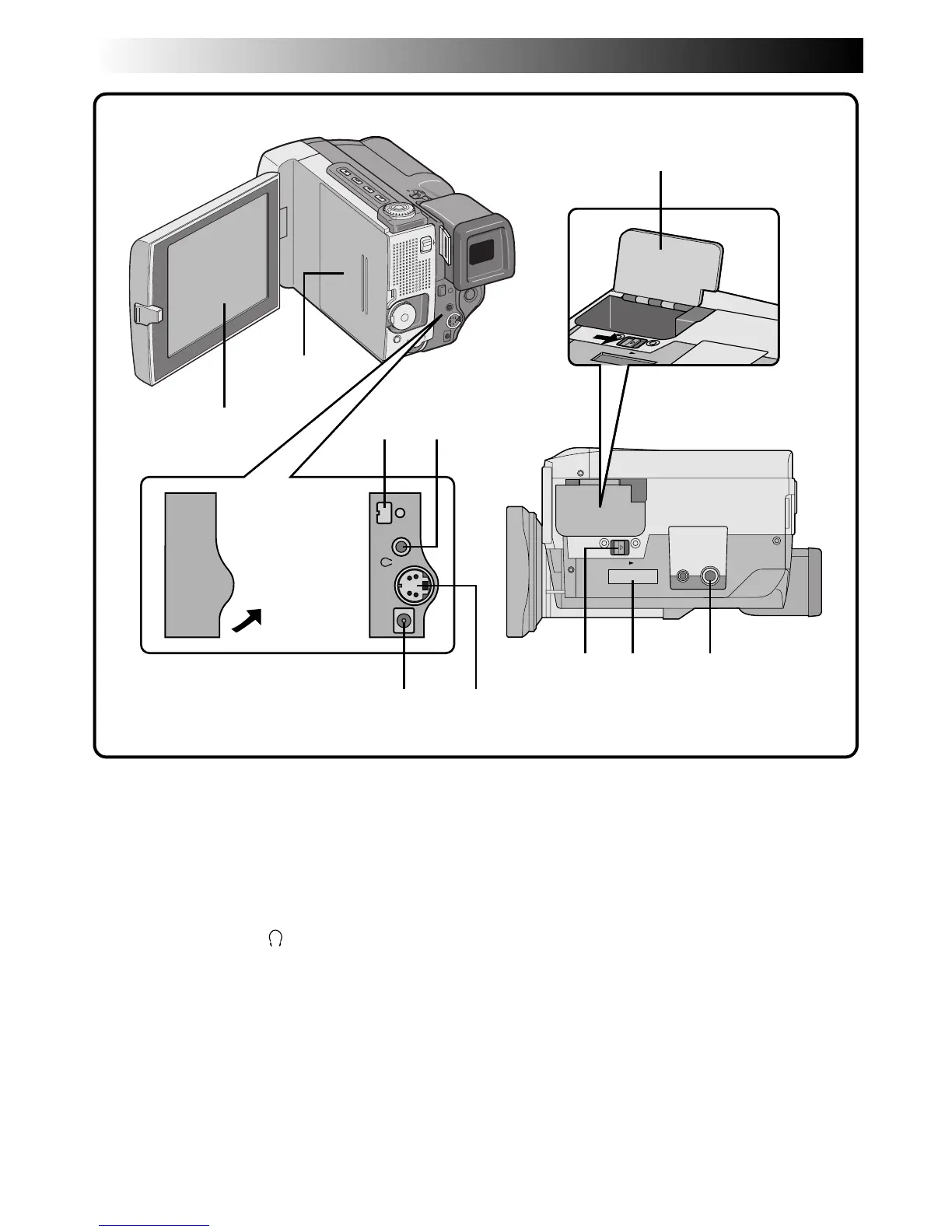

y LCD monitor (Z pg. 24)
The image appears during recording or playback.
u Cassette cover (Z pg. 14)
i DV OUT connector (Z pg. 60, 61, 63)
Connect to a video unit equipped with a DV
connector.
o Video/audio output connector or head-
phones connector (
/AV-OUT)
(
Z pg. 58, 70)
The provided VIDEO/AUDIO cable (ø3.5) can be
connected to a television etc. Using optional
headphones, you can listen to the sound.
However, headphones equipped with volume
control cannot be used.
p DC IN jack (Z pg. 12)
The DC cord of an AC Power Adapter can be
connected.
Q S-VIDEO OUT connector
(
Z pg. 58, 65)
Connect to a video unit equipped with an S-
Video connector.
W Battery cover (Z pg. 11)
Open the battery cover to insert the battery.
E Battery cover open switch (BATTERY)
(
Z pg. 11)
Slide in the direction of the arrow to open the
battery cover.
R Power Pack (MULTI) connector
(
Z pg. 12)
Attach to the Power Pack (optional).
T Tripod mounting socket (Z pg. 16)
Bottom of the
camcorder
Connector cover
Pull this out to
open.
CONTROLS, INDICATIONS AND CONNECTORS
(Cont.)
To Next Page
