Controls
a •Menu Wheel [MENU]........................ 墌 pg. 31
•Speaker/Headphone Volume Control
[VOLUME +, –] ................................. 墌 pg. 20
b Snapshot Button [SNAPSHOT]....... 墌 pg. 23, 41
c Power Zoom Lever [T/W] .................... 墌 pg. 18
d •Focus Adjustment Button [FOCUS] ... 墌 pg. 43
•Blank Search Button
[BLANK SEARCH] ............................. 墌 pg. 21
e Dioptre Adjustment Control ................ 墌 pg. 12
f Recording Start/Stop Button................ 墌 pg. 17
g Power Switch [A, M, PLAY, OFF] ........ 墌 pg. 13
h Lock Button ......................................... 墌 pg. 13
i •Stop Button [8] ................................. 墌 pg. 20
•Program AE Button [PROG.AE] ......... 墌 pg. 33
j •Rewind Button [
3 ].......................... 墌 pg. 20
•NIGHT Button................................... 墌 pg. 41
k Play/Pause Button [4/9] .................... 墌 pg. 20
l •Fast-Forward Button [
5 ] ................. 墌 pg. 20
•Wipe or Fader Effect Button
[FADE/WIPE]..................................... 墌 pg. 32
m Index Button [INDEX].......................... 墌 pg. 26
n Thumbnail Storing Button
[NAVI STORE]...................................... 墌 pg. 47
o •D.S.C. Playback Select Button
[SELECT].................................... 墌 pg. 24 – 29
•Navigation Button [NAVI] ................. 墌 pg. 46
p VIDEO/MEMORY Switch
[VIDEO/MEMORY].............................. 墌 pg. 13
q Title Button [TITLE].............................. 墌 pg. 49
r •Information Button [INFO]................ 墌 pg. 26
•E-Mail Clip Recording Button
[E-MAIL]............................................ 墌 pg. 48

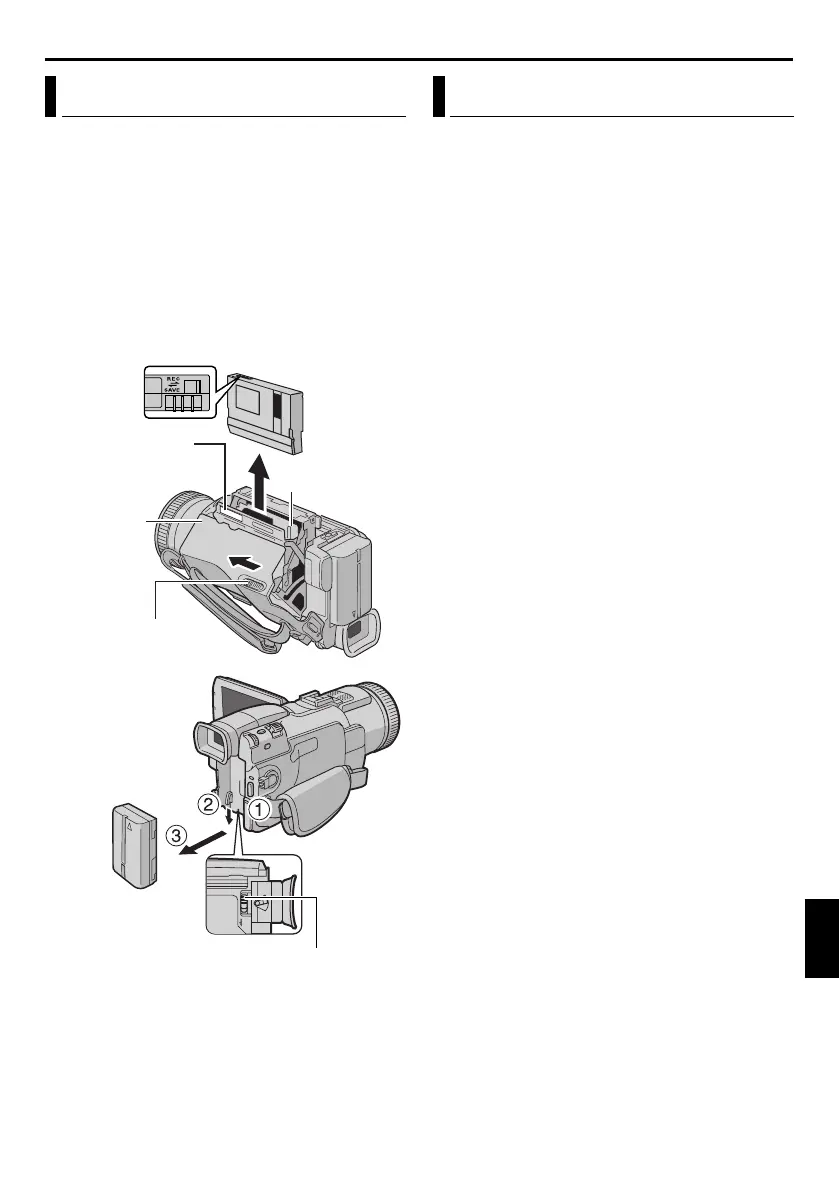

s Battery Release Switch
[BATT.RELEASE] ................................... 墌 pg. 10
t Cassette Open/Eject Switch
[OPEN/EJECT]...................................... 墌 pg. 15
u Backlight Compensation Button
[BACK LIGHT] ..................................... 墌 pg. 45
v Monitor Opening Button
[PUSH OPEN]...................................... 墌 pg. 17
Connectors
The connectors are located beneath the covers.
W S-Video Connector [S-VIDEO IN/OUT (GR-
DV700/500) or S-VIDEO OUT (GR-DV600/
400)]........................................ 墌 pg. 22, 50, 59
X Edit Connector [EDIT] ........................ 墌 pg. 59
Y Microphone connector [MIC]
Attach the optional microphone.
Z Headphone Connector [ ] ................ 墌 pg. 56
No sound is output from the speaker when
headphones are connected to this connector.
a Digital Video Connector [
DV IN/OUT (GR-
DV700/500) or DV OUT (GR-DV600/400)]
(i.Link*) ....................................墌 pg. 51, 52, 62
* i.Link refers to the IEEE1394-1995 industry
specification and extensions thereof. The logo
is used for products compliant with the i.Link
standard.
b USB (Universal Serial Bus)
Connector ............................................墌 pg. 62
c DC Input Connector [DC] ..............墌 pg. 10, 11
d Audio/Video Connector
[AV IN/OUT (GR-DV700/500) or AV OUT (GR-
DV600/400)] ............................墌 pg. 22, 50, 59
Indicators
I Power/Charge Lamp.......................墌 pg. 13, 17
J Tally Lamp ......................................墌 pg. 17, 36
Other Parts
h Shoulder Strap Eyelet .............................墌 pg. 7
i Battery Pack Mount..............................墌 pg. 10
j Grip Strap.............................................墌 pg. 12
k LCD Monitor ..................................墌 pg. 12, 18
l Speaker ................................................墌 pg. 20
m Stud Hole
n Tripod Mounting Socket .......................墌 pg. 12
o Card Cover [MEMORY CARD] ............墌 pg. 16
p Cassette Holder Cover..........................墌 pg. 15
q Stereo Microphone...............................墌 pg. 56
r Info-Shoe
Attach only the optional JVC VL-V3U Video
Light, VL-F3U Flash, MZ-V3U Stereo Zoom
Microphone or MZ-V5U Stereo Microphone.
Make sure to turn off the power of the camcorder
and the video light, flash or microphone before
attaching and removing them.
s Viewfinder............................................墌 pg. 12
t Remote Sensor .....................................墌 pg. 54
u Camera Sensor
Be careful not to cover this area, a sensor
necessary for shooting is built-in here.
