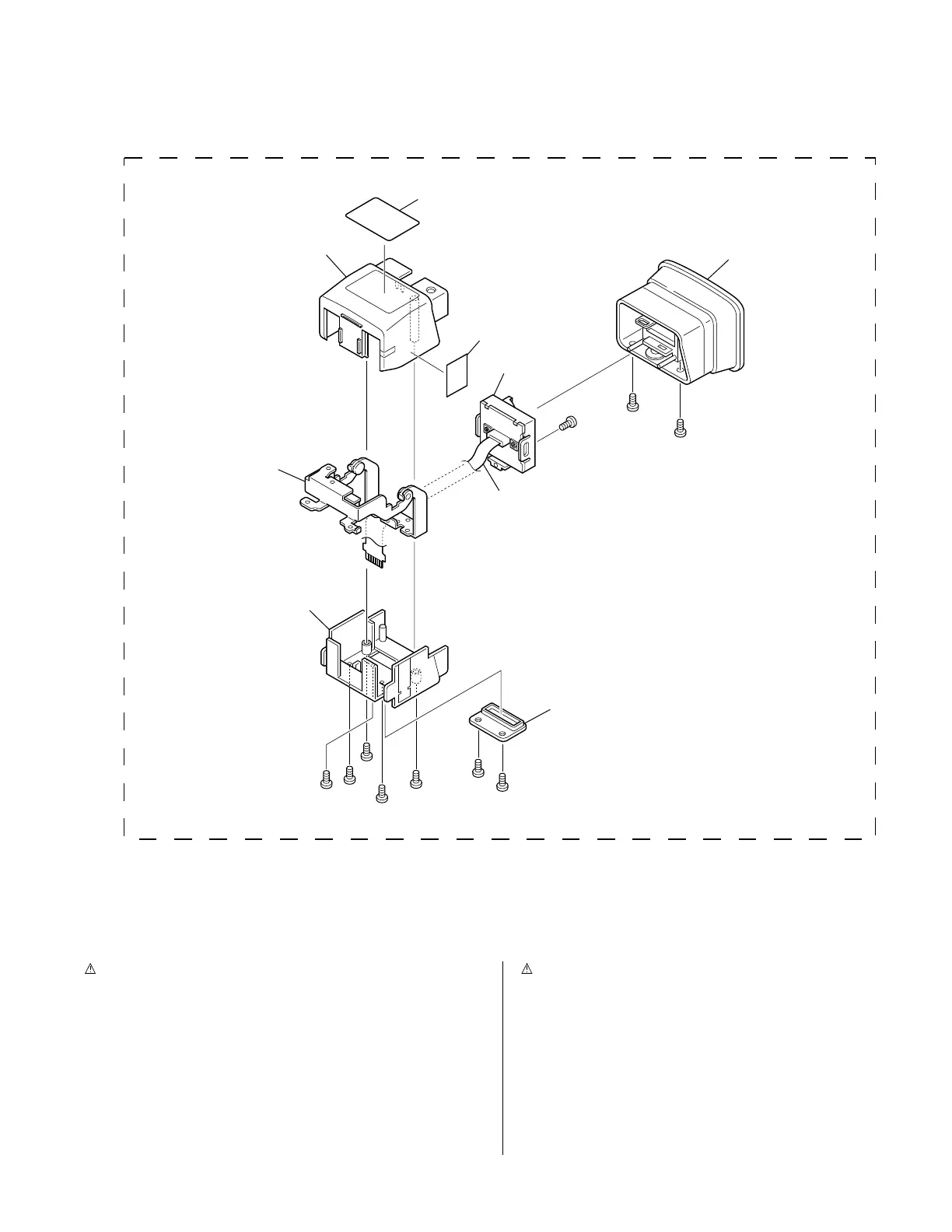

5.4 ELECTRONIC VIEWFINDER ASSEMBLY <M4> [GR-DVL510U/817U]
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
305 PTY20712-031 HINGE ASSY
306 PTY20744-041 LCD ASSY
307 QAL0288-001 FPC
308 LY30018-063A SPECIAL SCREW,X4
309 LY30018-055A SPECIAL SCREW,X3
310 LY30018-035A SPECIAL SCREW,X2
311 PTY20744-051 SCREW
312 LY41701-002A SHEET(CAUTION)1
314 LY43041-002A LABEL(VF)
******************************
ELECTRONIC VIEWFINDER ASSEMBLY <M4>
300 LY20744-001A VF UNIT,A
LY20744-001B VF UNIT,C
301 PTY20744-001 EYE PIECE ASSY
302 PTY20712-011 TOP CASE SUB ASSY
303 PTY20712-021 BOTTOM CASE
304 PTY20712-022 CAP(VF)
308
311
308
310
310
308
308
309
309
309
302
312
301
306
314
307
305
303
304
300
