# REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- -----------------------------------------------------
SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with specified part numbers.
******************************
PACKING AND ACCESSORY ASSEMBLY <M1>
1 LY30023-008A POLY BAG
2 LY32095-005A PACKING CASE,C,D
LY32095-006A PACKING CASE,B
LY32095-009A PACKING CASE,A
3 LY32096-001A CUSHION
4 QPA02003006 POLY BAG
! 5 LYT0711-001A INST.BOOK(EN),C
! LYT0711-002A INST.BOOK(FR),C
! LYT0711-003A INST.BOOK(SP),C
! LYT0722-001A INST.BOOK(EN),A,B,D
! LYT0722-002A INST.BOOK(FR),A,B,D
! LYT0722-003A INST.BOOK(SP),A,B,D
! 6 LYT0766-001A INST.BOOK(SOFT.3LANG)
7 LYT0378-003A SHEET(AGREMENT)
8 YU10350 Q.CARD(JCA)
9 BT-51005-4 WARRANTY INF.
10 BT-51020-2 REGIST.CARD
11 LY32210-003A CD ROM
! 12 LY20739-001A AC ADAPTER,AP-V10U
! 13 LY31587-001A BATTERY PACK,BN-V408U
14 QAM0211-001 CABLE ASSY,AUDIO/VIDEO CABLE
15 QQR0918-002 CORE FILTER
16 LY20186-001A SHOULDER STRAP
17 LY20543-002A REMOTE CONTROL UNIT,RM-V716U,B,C,D
LY42129-001A REMOTE CONTROL UNIT,RM-V715U,A
18 – BATTERY,AAA(R03),X2
19 LY42182-001A LENS CAP
20 QPGA017-03005 POLY BAG
21 QAM0324-001 USB CABLE
22 QQR0918-002 CORE FILTER
23 PEAC0428-150 CABLE ASSY,EDITING CABL,B,C,D
24 QQR0491-002 CORE FILTER,B,C,D
29 QAM0262-002 MEMORY CARD,A,C
QAM0321-002 MEMORY CARD,B,D

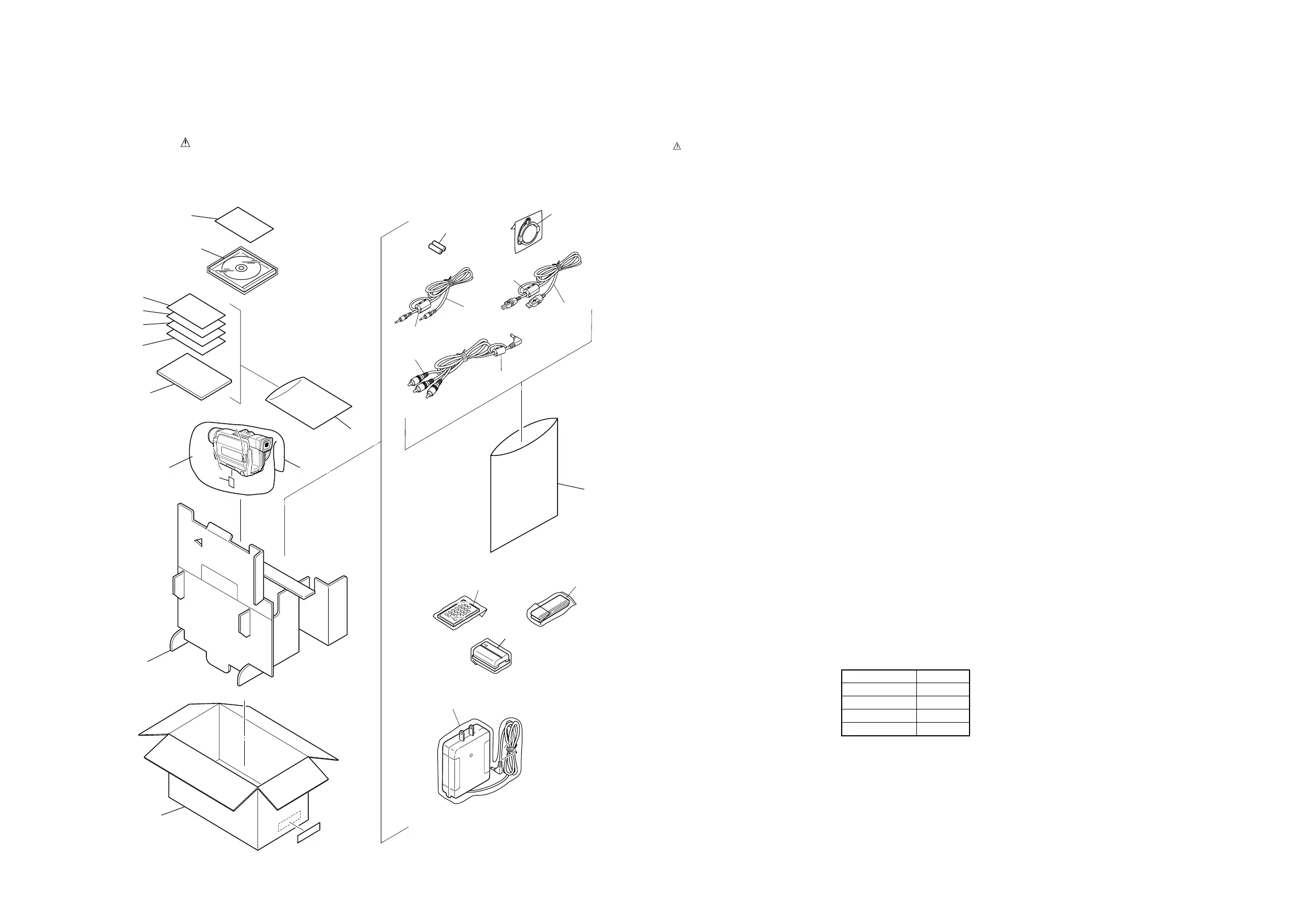

5.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
5-1 5-2
7
8
10
9
6
4
5
2
1
11
17
12
16
18
19
20
13
15
24
23
21
14
22
3
29
FINAL ASSY
<M2>
LABEL
(SERIAL)
• INSTRUCTIONS
EN ........... ENGLISH
FR ........... FRENCH
SP ........... SPANISH
MODEL MARK
GR-DVL510U A
GR-DVL815U B
GR-DVL817U C
GR-DVL915U D
