PLAYBACK Basic Connections
These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.
*When connecting the cables, open this cover.
Core filter
Yellow:
Not connected
S-Video cable
(provided)
TV
VCR
To S-VIDEO IN
To TV or VCR

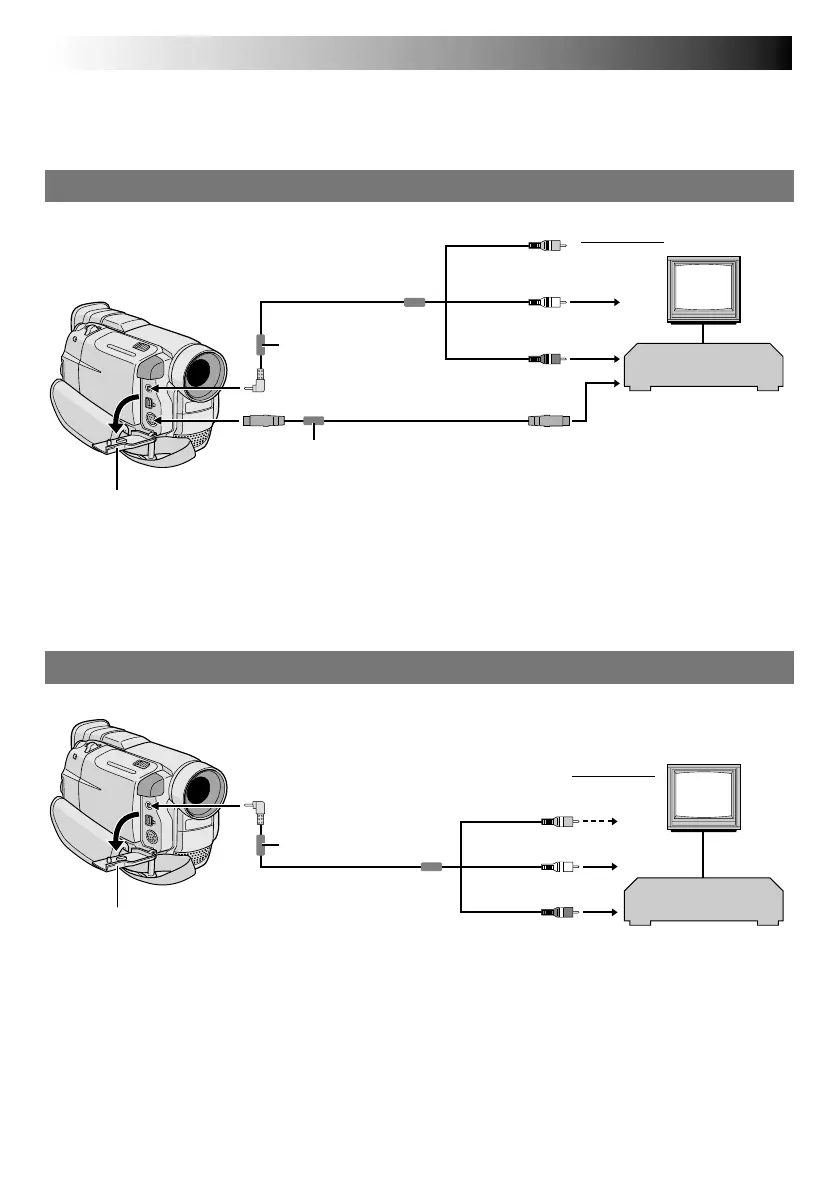

A. Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input (RCA type) connectors
Connector cover*
To AV
To S
Core
filter
Audio/Video cable
[mini-plug to RCA plug]
(provided)
White to
AUDIO L IN
Red to
AUDIO R IN
VCR
To TV or VCR
White to AUDIO L IN
Red to AUDIO R IN
Yellow to VIDEO IN
B. Connection to a TV or VCR equipped only with A/V input connectors
Connector cover*
To AV
Core filter
TV
Audio/Video cable
[mini-plug to RCA plug]
(provided)
*When connecting the cables, open this cover.
