JVC GR-DVL820 - Zoom (T;W) Buttons; Display Button; Slow Rewind;Forward Buttons; Rew Button

EN 55
1
2
3
4
6
8
5
7
9
0
)
@
$
!
#
%
^
&
*
(

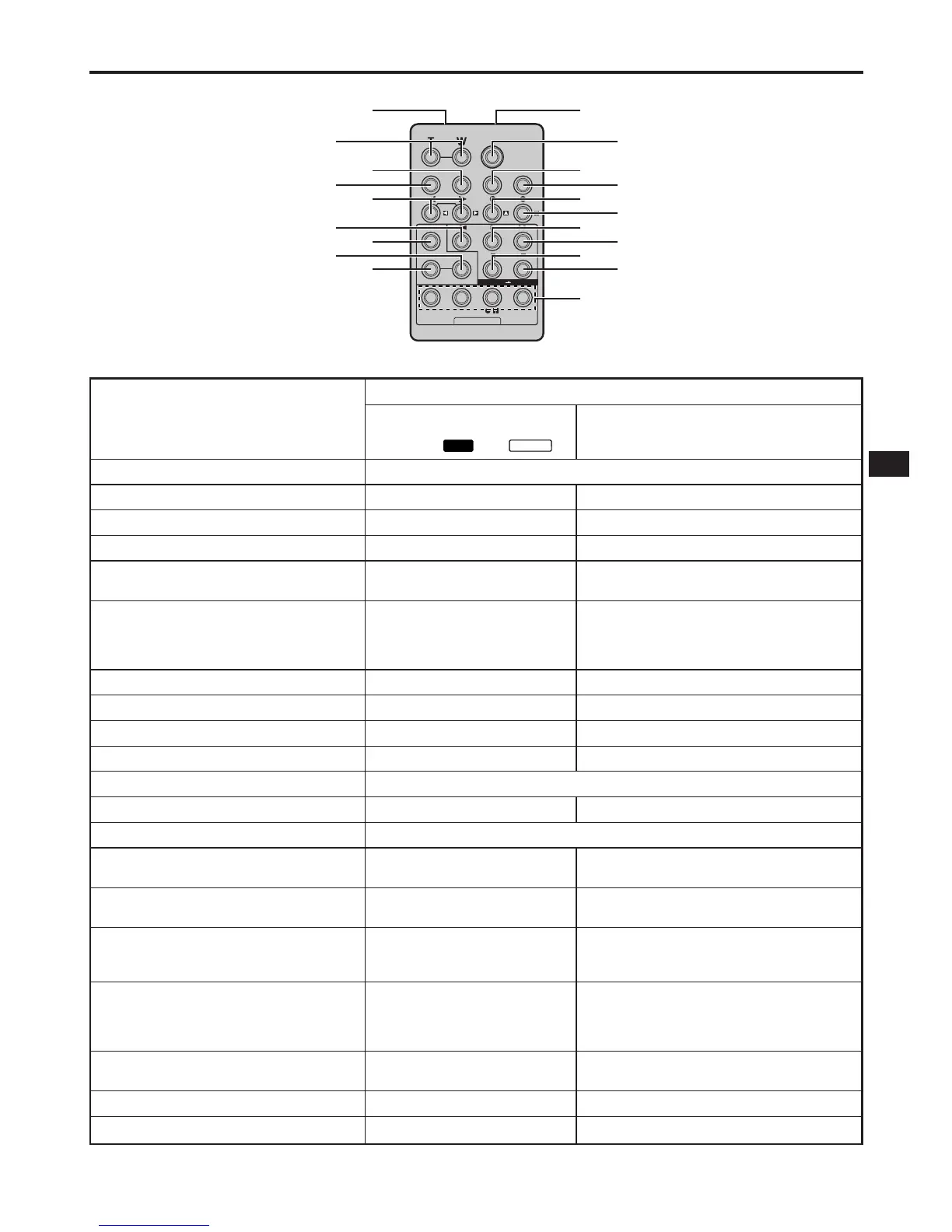

Buttons
1 Infrared beam transmitting window
2 Zoom (T/W) Buttons
3 DISPLAY Button
4 SHIFT Button
5 SLOW Rewind/Forward Buttons
Left/Right Buttons
6 REW Button
7 FADE/WIPE Button
8 EFFECT ON/OFF Button
9 EFFECT Button
0 PAUSE IN Connector
! START/STOP Button
@ MBR SET Button
# SNAPSHOT Button
$ Up Button
INSERT Button
% Down Button
A. DUB Button
^ PLAY Button
& FF Button
* STOP Button
( PAUSE Button
) R.A.EDIT Buttons
Functions
With the camcorder’s Power
Switch set to the camera
position (“
AUTO
” or “
MANUAL
”).
Transmits the beam signal.
Zoom in/out (Z pg. 18)
—
—
—
—
—
—
—
—
—
Functions the same as the Recording Start/Stop Button on the camcorder.
—
Functions the same as SNAPSHOT on the camcorder.
—
—
—
—
—
—
—
—
—
With the camcorder’s Power Switch
set to “PLAY”.
Zoom in/out (Z pg. 57)
Z pg. 23, 50, 59
Z pg. 57, 58
Z pg. 56
Z pg. 57
•Rewind/Reverse Shuttle Search on the
tape (Z pg. 21)
•Displays previous page/file on the
memory card* (
Z pg. 28)
Z pg. 60
Z pg. 56
Z pg. 56
Z pg. 59
Z pg. 58
Z pg. 57
Z pg. 64
Z pg. 57
Z pg. 63
•Starts Playback of the tape (
Z pg. 21)
•Starts Auto Playback of the memory
card* (
Z pg. 28)
•Forward/Forward Shuttle Search on the
tape (
Z pg. 21)
•Displays next page/file on the memory
card* (
Z pg. 28)
•Stops the tape (
Z pg. 21)
•Stops Auto Playback* (
Z pg. 28)
Pauses the tape (
Z pg. 56)
Z pg. 58 – 62
* GR-DVL1020/DVL820/DVL520 only.
