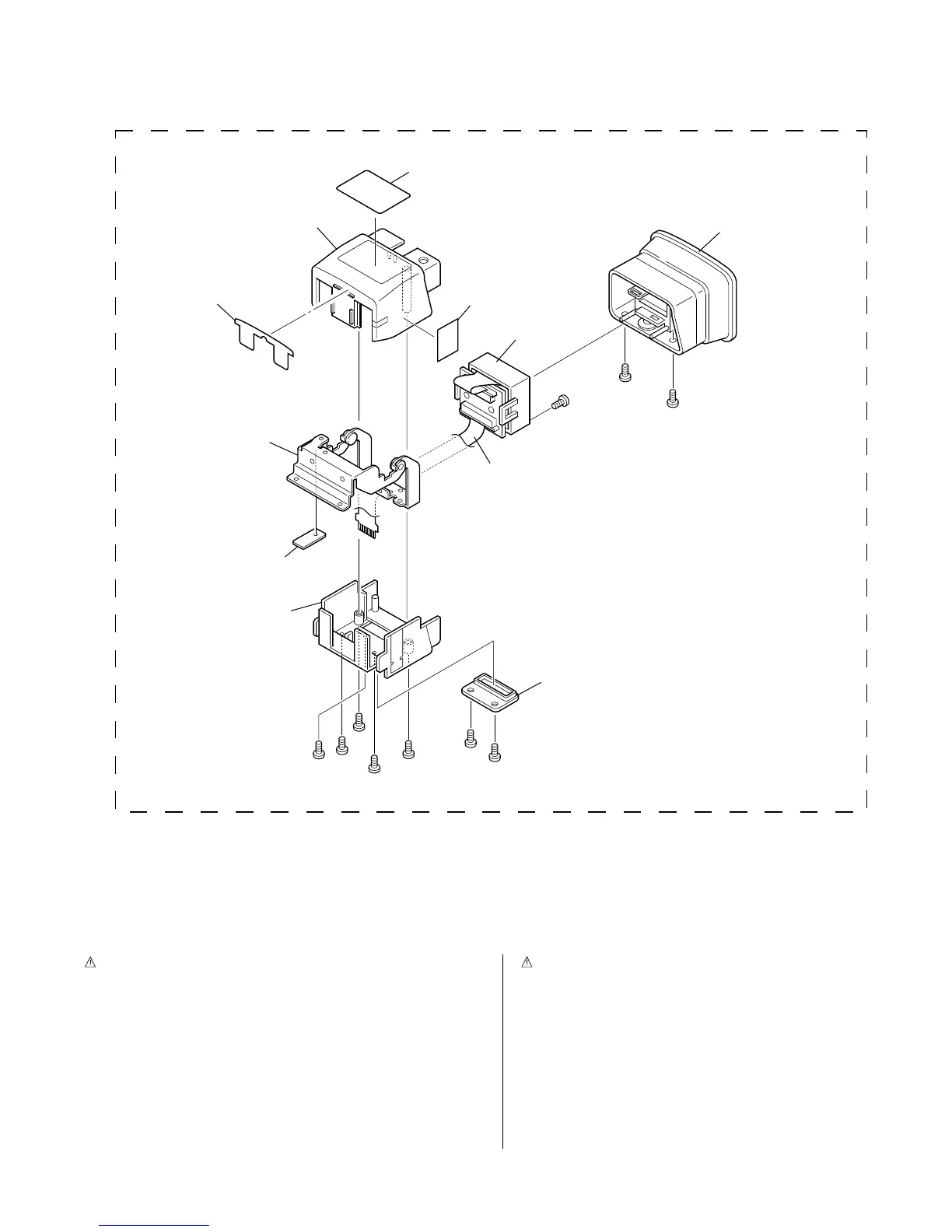

5.3 ELECTRONIC VIEWFINDER ASSEMBLY <M4> [GR-DVL1020A/EA/SH]
308
311
308
310
310
308
308
309
309
309
302
312
300
301
306
307
303
304
314
305
342
343
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
306 PTY20712-041 LCD ASSY
307 QAL0287-001 FPC
308 LY30018-063A SPECIAL SCREW,X4
309 LY30018-055A SPECIAL SCREW,X3
310 LY30018-035A SPECIAL SCREW,X2
311 PTY20712-051 SCREW
312 LY41701-002A SHEET(CAUTION)1
314 LY43041-002A LABEL(VF)
342 LY43489-001B PLATE(VF)
343 LY43827-001A BRACKET(VF)
******************************
ELECTRONIC VIEWFINDER ASSEMBLY <M4>
300 LY20838-003A C.VF ASSY
301 PTY20712-001 EYE PIECE ASSY
302 PTY20712-011 TOP CASE SUB ASSY
303 PTY20712-021 BOTTOM CASE
304 PTY20712-022 CAP(VF)
305 PTY20838-031 HINGE ASSY
