USING THE REMOTE CONTROL UNIT
(cont.)
MAKE CONNECTIONS
Also refer to pg. 22 and 23.
1
A JVC VCR equipped with a remote pause
connector . . .
... connect the editing cable to the Remote
PAUSE connector.
A JVC VCR not equipped with a remote pause
connector but equipped with an R.A. EDIT
connector . . .
... connect the editing cable to the R.A.EDIT
connector.
A VCR other than above . . .
... connect the editing cable to the remote
control’s PAUSE IN connector.
2
Insert a recorded tape into the camcorder. Set the
VIDEO/DSC Switch to “VIDEO” (GR-DVL910A/
DVL510A/DVL910EA/DVL510EA only), then set the
Power Switch to “ ” while pressing down the
Lock Button located on the switch.
3
Turn the VCR power on, insert a recordable tape and
engage the AUX mode (refer to the VCR’s instructions).
NOTES:
●
Before Random Assemble Editing, make sure the
indications do not appear on the TV monitor. If they do,
they will be recorded onto the new tape.
To choose whether or not the following displays appear
on the connected TV . . .
•Date/Time
.... set “DATE/TIME” to “AUTO”, “ON” or “OFF” in the
Menu Screen ( pg. 50).
•Time Code
.... set “TIME CODE” to “ON” or “OFF” in the Menu
Screen (
pg. 50).
•Playback Sound Mode, Tape Speed And Tape Running
Displays
.... set “ON SCREEN” to “LCD” or “LCD/TV” in the
Menu Screen ( pg. 50). Or, press DISPLAY on the
remote control (provided).
●
For GR-DVL910A/DVL510A/DVL910EA/DVL510EA
Owners: Make sure to set “S/AV INPUT” to “OFF” in the
Menu Screen (
pg. 50).
●
When editing on a VCR equipped with a DV input
connector, an optional DV cable can be connected
instead of an S-Video cable and audio/video cable.
* Connect when an S-Video cable is not used.
** When connecting cables, open this cover.
*** JLIP :GR-DVL450A/DVL313A/DVL310A/
DVL210A/DVL210EA
EDIT : GR-DVL910A/DVL510A/DVL910EA/
DVL510EA
For GR-DVL450A/DVL313A/
DVL310A Owners:
ATTENTION FOR EDITING CABLE
Make sure you connect the end with the
core filter (plug which has 3 rings around
the pin) to the camcorder.

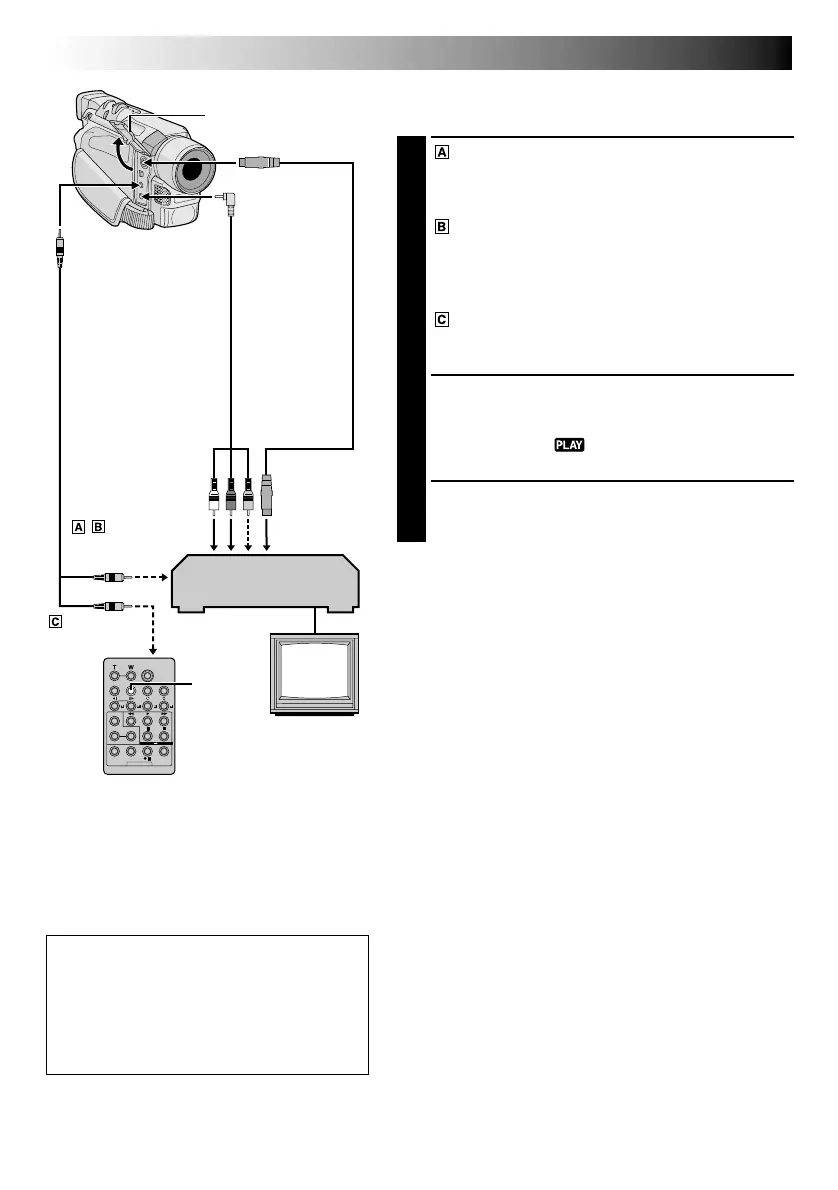

DISPLAY
To Remote PAUSE
or R.A.EDIT
VCR
TV
To PAUSE IN
Editing cable
(provided)
S-Video
cable
(optional)
Audio/Video
cable
(provided)
Connector cover**
To AV
To JLIP***
or EDIT***
To S
To AUDIO,
VIDEO*
and S-VIDEO IN
connectors
