INDEX Indications

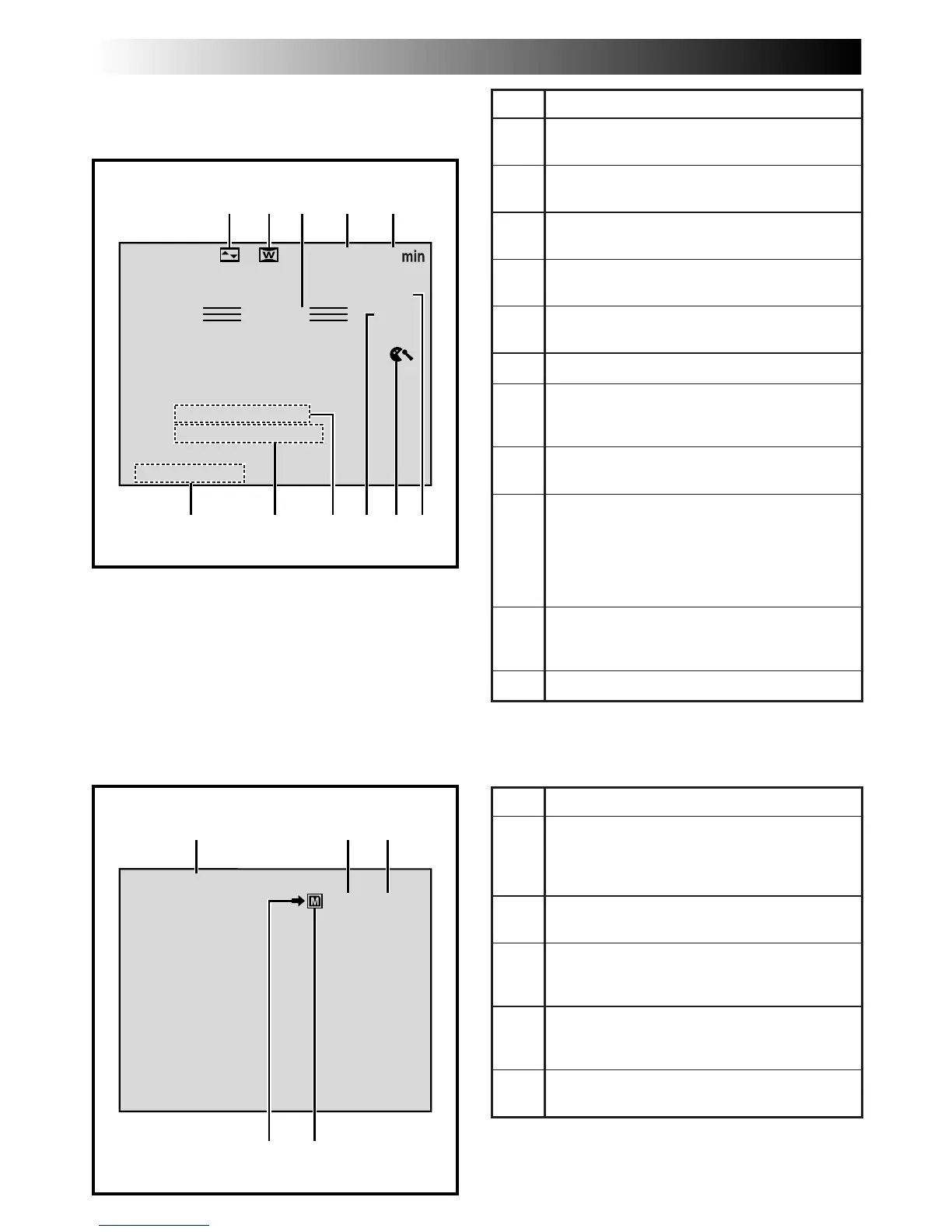

LCD Monitor/Viewfinder Indications
During Video Recording Only
No. Function
1
Displays the selected Fade/Wipe effect.
(Z pg. 38, 39)
2 Appears when in the Squeeze, Cinema or
PS Wide mode. (Z pg. 32)
3
*
Appears when in the Record-Standby mode.
(Z pg. 16)
4
*
Displays the recording mode (SP or LP).
(Z pg. 11)
5
*
Displays the tape remaining time.
(Z pg. 16)
6 Appears during recording. (Z pg. 16)
7 Appears when the wind cut mode is engaged
to cut down on noise created by wind.
(Z pg. 33)
8 Appears while the tape is running.
(Z pg. 16)
9 • HIGH SPEED: Appears for a few seconds
when the High Speed Recording mode is
selected. (Z pg. 28)
• 5S MODE/ANIM. MODE: Displays the
5 second recording mode or Animation
recording mode. (Z pg. 32, 37)
0 Displays the sound mode for approx. 5
seconds after turning on the camcorder.
(Z pg. 31)
! Displays the Time Code. (Z pg. 23, 33)
*Setting “ON SCREEN” to “SIMPLE” in the Menu Screen
removes indications marked with * from the screen
(Z pg. 33, 46).
No. Function
1
Displays the Picture Quality mode of the
stored image. There are 3 modes available:
FINE, STD (Standard) and ECO. (Economy)
(in order of quality). (Z pg. 13)
2 Displays the number of images that have
already been shot. (Z pg. 20)
3 Displays the total number of shots that can
be stored, including those already taken.
(Z pg. 20)
4 • Appears during shooting.
• Blinks when a MultiMediaCard is not
loaded. (Z pg. 20)
5 Appears and blinks during shooting.
(Z pg. 20)
LCD Monitor/Viewfinder Indications During D.S.C. Recording Only
TC
A
S
2
N
O
3
I
U
:
M
N
2
.
D
5
PA
M
1
U
O
2
S
D
B
E
E
IT
SP
3
R
4
5
E
4
C
4
! 0 9
1 2 3
*
4
*
5
*
8 7 6
STD
10/24
1 2 3
5 4
These indications also appear during DUAL mode.
