JVC GR-DVL9800 - Video Playback Indications; Playback Status and Sound Indicators; Progressive and High Speed Indicators; DSC Playback Indications

90 EN

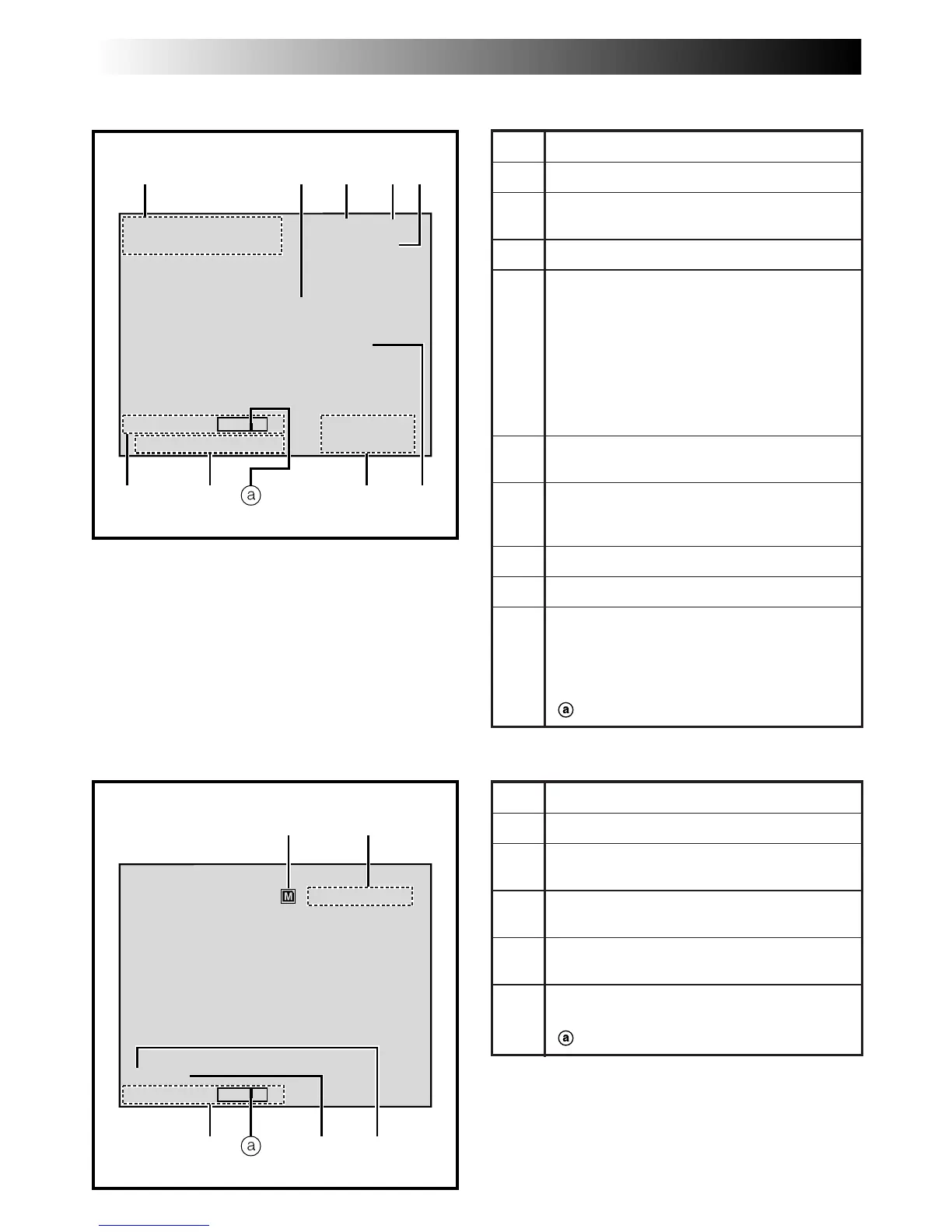

LCD Monitor/Viewfinder Indications During Video Playback
No. Function
1 Displays the sound mode. (Z pg. 46, 47)
2 Appears blinking during Snapshot Search.
(Z pg. 19)
3 Displays the tape speed. (Z pg. 11)
4 Appears while a tape is running.
4 : Playback
3 : Fast-Forward/Shuttle search
2 : Rewind/Shuttle search
6 : Pause
6 4 : Forward slow-motion
1 6 : Reverse slow-motion
e : Audio Dubbing
6e : Audio Dubbing Pause
5 Appears during playback of images recorded
in the Progressive mode. (Z pg. 24)
6 Appears for a few seconds during playback
of images recorded in the High Speed
Recording mode. (Z pg. 29)
7 Displays the date/time. (Z pg. 46, 47)
8 Displays the time code. (Z pg. 46, 47)
9 BRIGHT : Displays the brightness of the LCD
monitor or the viewfinder.
(Z pg. 16)
VOLUME : Displays the speaker or
headphone volume. (Z pg. 44)
The level indicator moves.
1
L
V
2
1
O
T
B
L
C
I
U
T
S
M
1
/
N
E
0
S
A
H
–
:
O
P
I
0
U
S
G
6
N
H
H
:
D
O
2
1
T
S
+
0
P
S
E
E
E
A
D
1
L
R
.
P
C
X
1
H
2
1
2
P
.
:
4
S
0
0
0
0
8 6
2 53 4
79
1
INDEX Indications (cont.)
LCD Monitor/Viewfinder Indications
During D.S.C. Playback
No. Function
1 Blinks when a MultiMediaCard is not loaded.
2 Displays the directory and file names.
(Z pg. 48)
3 Displays the index number of the image file.
(Z pg. 48)
4 Displays the total number of stored images.
(Z pg. 48)
5 Displays the brightness of the LCD monitor
or the viewfinder. (Z pg. 16)
The level indicator moves.
1
B
0
R
/
I
2
G
4
HT
–
+
100
–
0001
1
5 4 3
2
