PLAYBACK Basic Connections

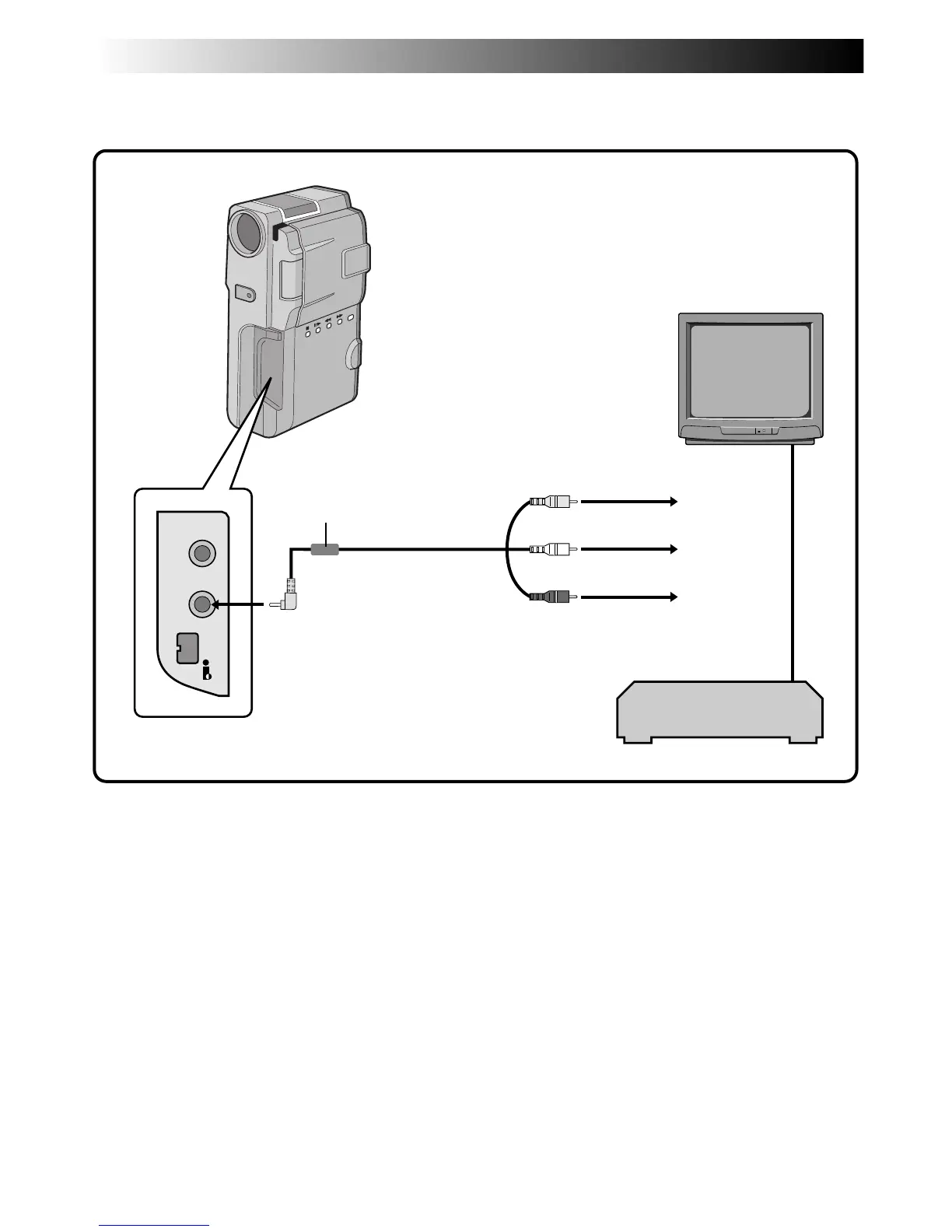

VCR/TV Connection (when connecting directly to the camcorder)
Please refer to your VCR and/or TV instruction manual(s) when connecting.
Red to AUDIO R
Yellow to VIDEO
White to AUDIO L
VCR
To AV OUT
connector
To
TV or VCR
VIDEO/AUDIO
cable (provided)
To VIDEO IN connector
To AUDIO IN connector (L/R)
Core filter
Connector is under
the cover.
TV
