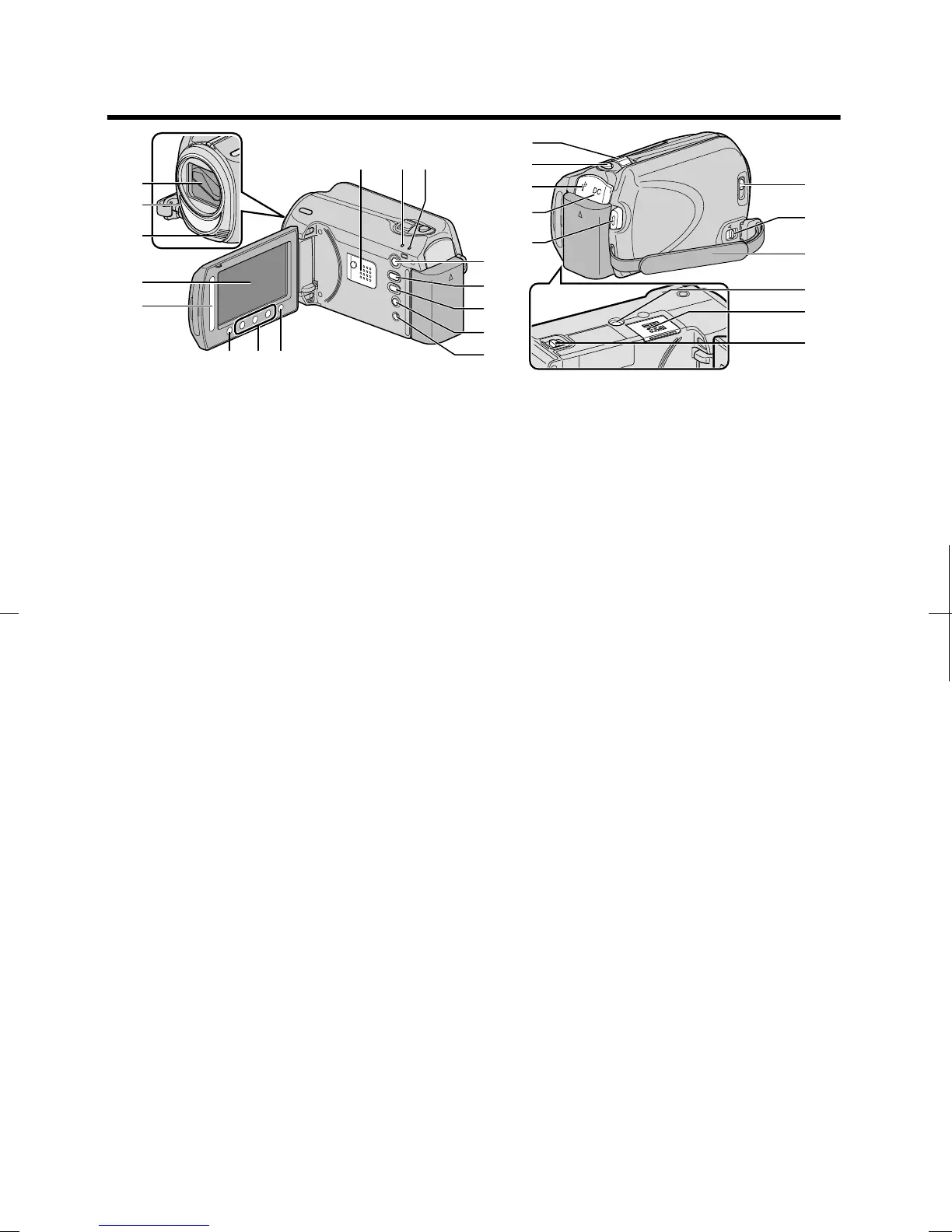

Names of Parts and Functions
.
A
V
p
o
q
1
2
3
4
5
678
90a
d
c
b
f
e
i
k
j
h
g
n
m
l
A
Lens/Lens Cover
B
Light
C
Stereo Microphone
D
LCD Monitor
Turns the power on/off by opening and
closing.
E
Slider
Selects an image or item.
F
OK Button
Confirms the selected image or item.
G
Operation Buttons
Functions differently according to the
operation.
H
Menu (menu) Button ( P.21)
I
Speaker
J
ACCESS (Access) Lamp
Lights up/blinks during recording or
playback.
K
POWER/CHARGE (Power/Charge)
Lamp ( P.6)
L
+ (Play) Button
Switches between recording and
playback modes.
M
/ (Video/Still Image) Button
Switches between video and still
image modes.
N
UPLOAD/EXPORT
(Upload/Export to iTunes) Button
Recording
：
Takes videos in YouTube or
iTunes format.
Playback
：
Changes the video to
YouTube or iTunes* format.
O
, (Power/Information) Button
Recording
：
Displays the remaining time as
well as the battery power
during continuous recording.
Playback
：
Displays file information.
Press and hold to turn the power on/off
while the LCD monitor is opened.
P
AV Terminal ( P.15, P.20)
Q
Zoom/Volume Lever ( P.10, P.14)
R
SNAPSHOT (Still Image Recording)
Button ( P.11)
S
USB Terminal
T
DC Terminal ( P.6)
U
START/STOP (Video Recording)
Button ( P.10)
V
Lens Cover Switch ( P.10)
W
Grip Belt Release Lever
X
Grip Belt ( P.7)
Y
Tripod Mounting Hole
Z
microSD Card Slot ( P.12)
a
Battery Release Lever ( P.6)
For more information, refer to the Detailed User Guide
http://manual.jvc.co.jp/index.html/
