JVC HA-RF100S - Measurement Condition; Wiring Diagrams

HA-RF100S(J)
19
.
Reference input signal : 1kHz 350mVp-p sine wave
.
Headphone volume control : MAX

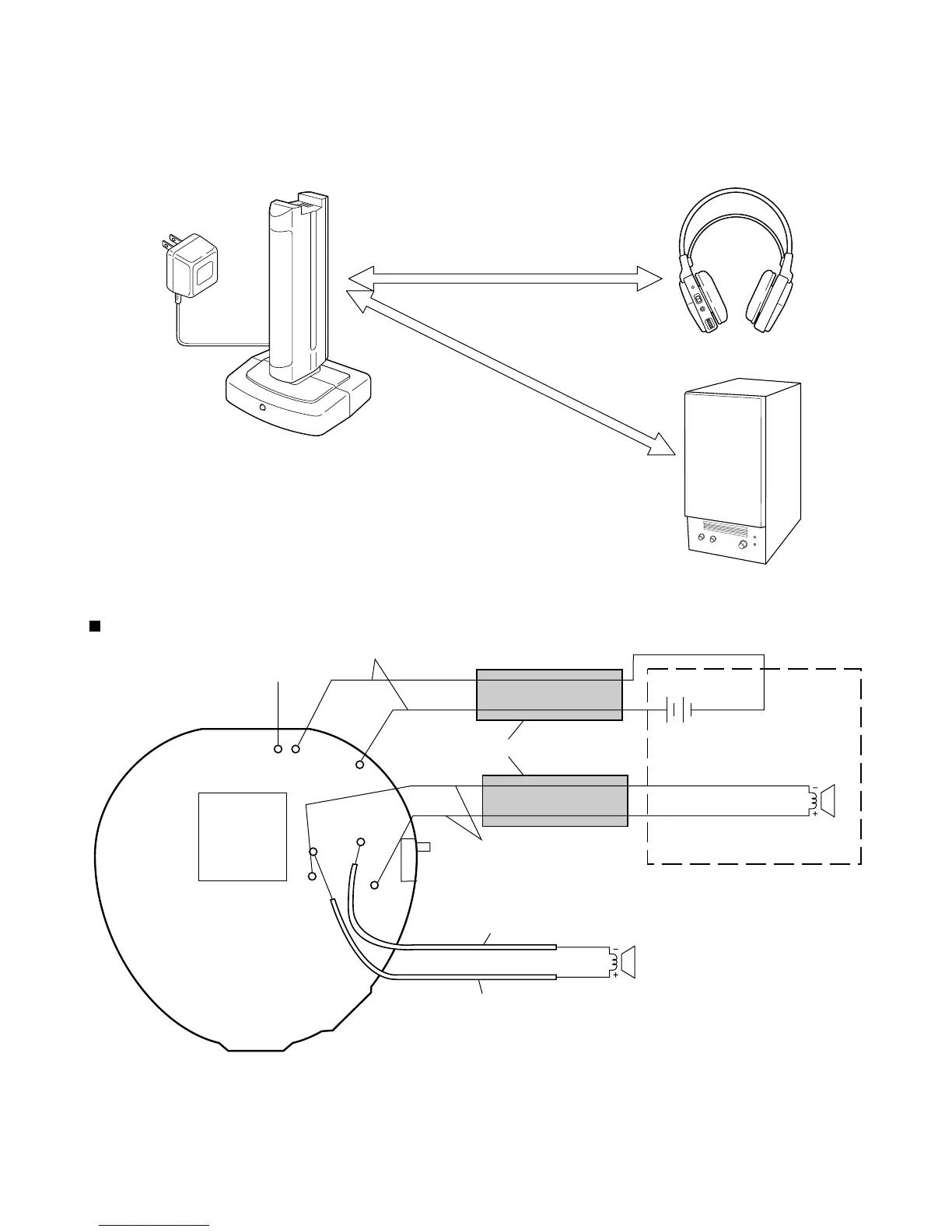

4. Measurement condition
5. Wiring diagram
Receiver (Headphones)
Distance : 1m (3.28ft)
Distance : 1m (3.28ft)
Transmitter
AC IN
Receiver (Headphones)
Speaker
UHF
MODULE
37-02-RS922-1
VR1
VR2
W8
W2
W4
W3
W1
W6
W7
ANT
Ni-Cd Batteries
Black lead
Black sheath
Shielded lead
OFF
ON
Shielded lead
Speaker (Rch)
Speaker (Lch)
Right side housing
Shielded lead color
W1 : White
W3 : Natunal
W7 : Red
W6 : Natunal
Red lead
