FEATURES
● Frequency modulation system which allows headphones/speakers to be used even
in areas where the transmitter cannot be seen
● Extended Reception Range (up to 150 ft (46 m): using JVC measurements system)
● All-in-One package (transmitter, headphones and two speakers included)
● Volume controllable speaker with auto tuning function/bass boost control
● Auto-level control that automatically adjusts signals to the appropriate modulation
level (for transmitter)
● Compact speaker design for indoor/outdoor use (not water resistant)
● Rechargeable System with Ni-Cd Batteries Provided (for headphones)
● Soft Comfort-Fit Headband that adjusts easily when put on
● Automatic Power On/Off transmitter
● Large 100 mm dia. woofer drivers and 50 mm dia. tweeter drivers for high quality
sound (for speakers)
● Large 40 mm dia. drivers for high quality sound (for headphones)
● Single Volume Control adjusts the volume level of the left and right channels
simultaneously (for headphones)
● Adaptable to Any Audio/Visual Equipment
IMPORTANT
1. Installation
● Select a place which is level, dry and neither too hot nor too cold (between 0°C
and 35°C /32°F and 95°F).
● Keep away from direct sunlight.
● Do not put it too close to a heater.
2. Power cord
● Do not handle the power cord with wet hands!
● Do not bend the power cord sharply.
3. Malfunctions, etc.
● There are no serviceable parts inside. If anything goes wrong, unplug the power
cord and consult your dealer.
● Do not insert any metallic object.
● Do not allow water to get inside.
4. Handling
● Be sure to use headphones and/or speakers together with the transmitter.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, cover or cabinet.
2. Do not expose this appliance to rain or moisture.
7

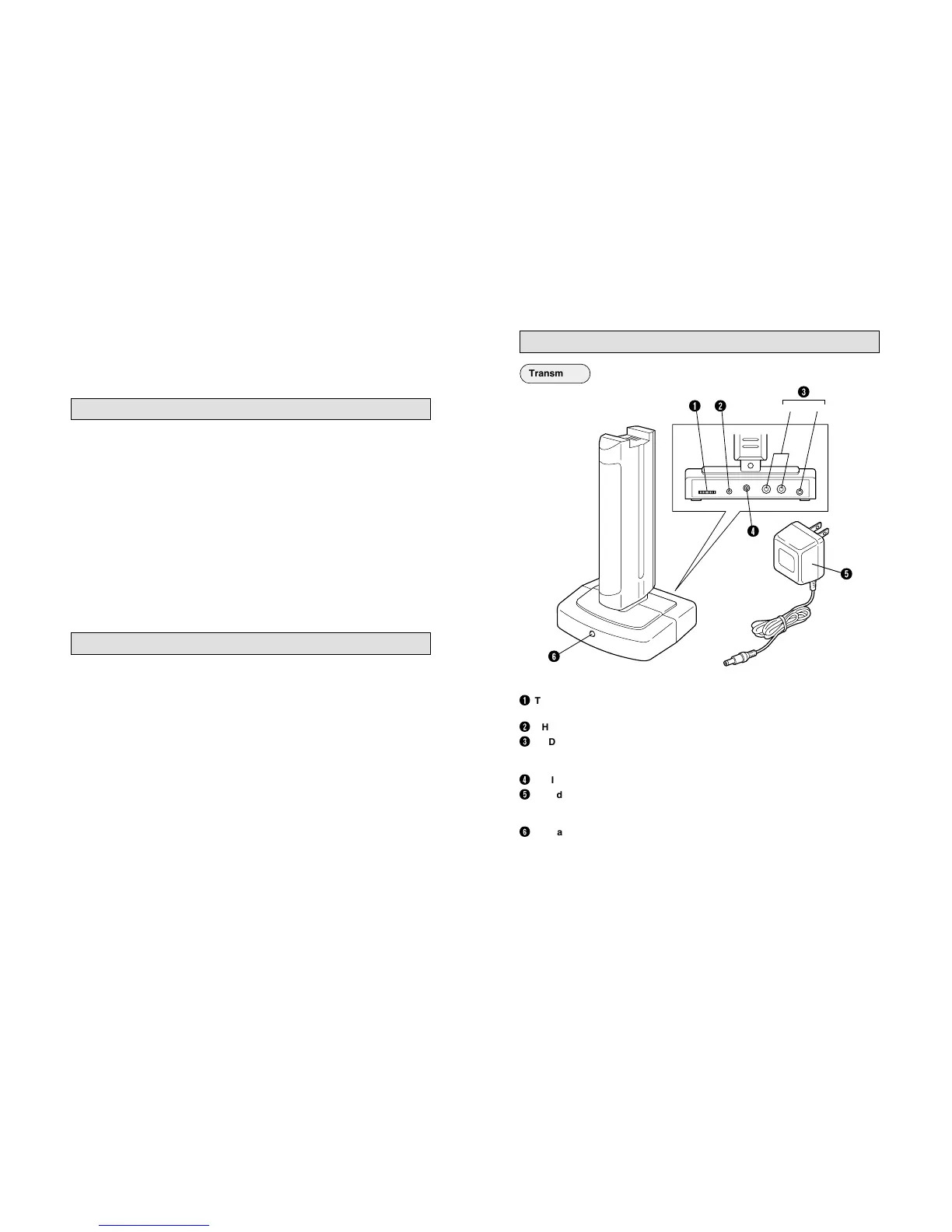

NAMES OF PARTS AND THEIR FUNCTIONS
1
TUNING (Tuning control)
Adjusts the transmission frequency.
2
CHG. (Charging output terminal)
3
AUDIO (Audio input terminals)
[A] RCA pin jack (L/R)
[B] 3.5 mm dia. stereo minijack
4
DC IN (DC 12 V jack)
5
AC adaptor (J46598-001)
Connects to a household AC outlet
(AC 120 V, 60 Hz).
6
Indicator
When an audio signal is input : lights
in green
When charging : lights in red
Notes:
● When an audio signal is input while
charging, the indicator may light in
orange.
● The provided AC adaptor is
exclusively for use with this unit.
Do not connect to any other
equipment.
6
12
3
4
5
[
A
][
B
]
Transmitter
To Next Page
