JVC HA-W400RF - Exploded View; Mechanical Parts List

HA-W400RF (EG) /(EK)
18 (No.70245)

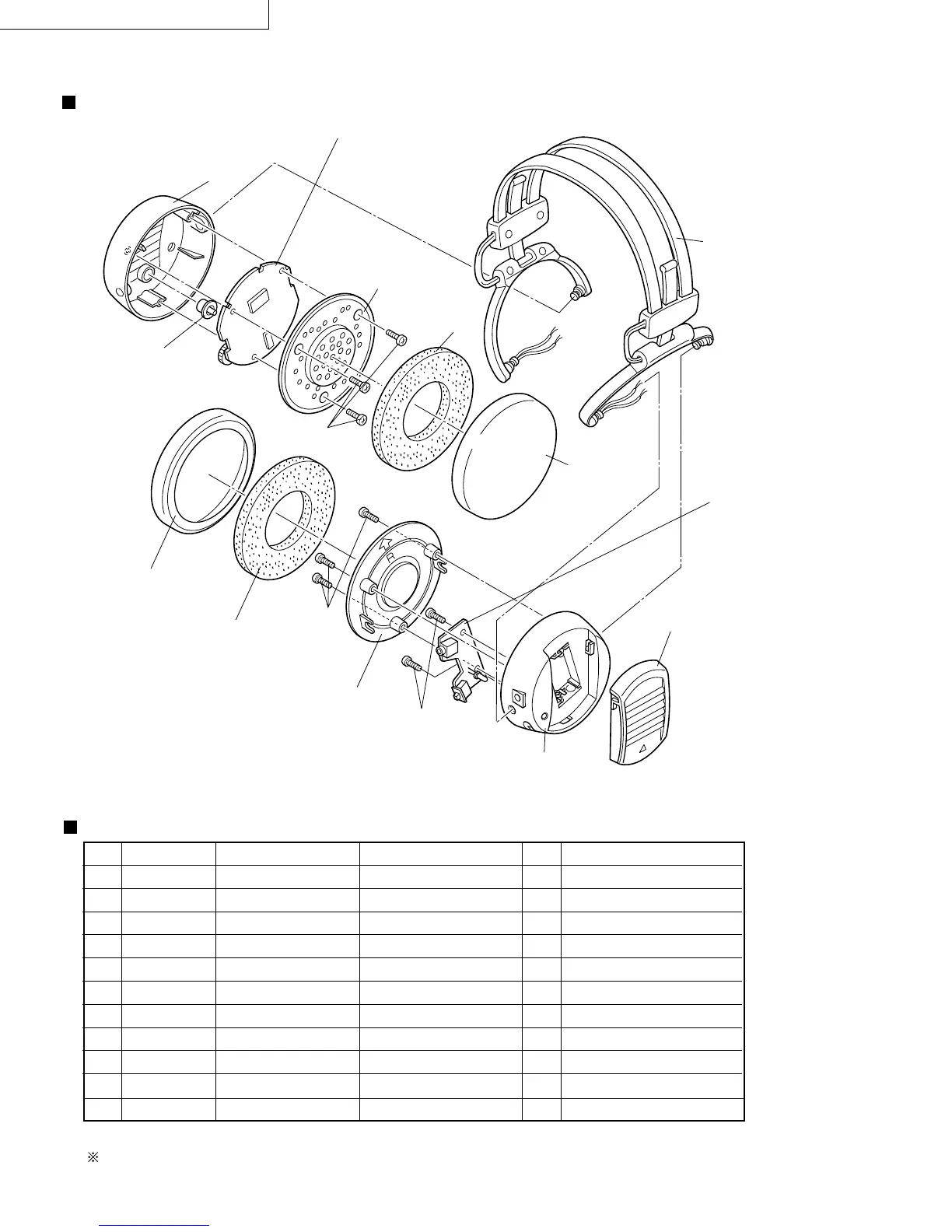

10.Exploded View
Receiver(Headphones)
! Item No. Parts No. Parts Name Q'ty Description
1 J21975-001 Headband Ass'y 1 with connecting wire
2 J21958-001 Housing(R) Ass'y 1 with battery terminal
3 J21957-001 Housing(L) 1
4 J33528-001 Driver Unit Ass'y(L) 1 with bottom cover
5 J33529-001 Driver Unit Ass'y(R) 1 with bottom cover
6 J33527-001 Tuning Switch Knob 1
7 J33530-001 Ear Pad 2
8 J33531-001 Cushion 2
9 J21959-001 Battery Door 1
10 QYSPSF2008 Screw 6
11 SPSG2005M Screw 2
Receiver(Headphones)
11.Mechanical Parts List
Parts marked (!) are safety parts. When replacing, be sure to use the specifide one.
3
7
7
0
0
8
2
9
1
6
4
8
5
-
L
R
Main P.C.B Ass'y
(Refer to Page 15)
Chage P.C.B Ass'y
(Refer to Page 14)
