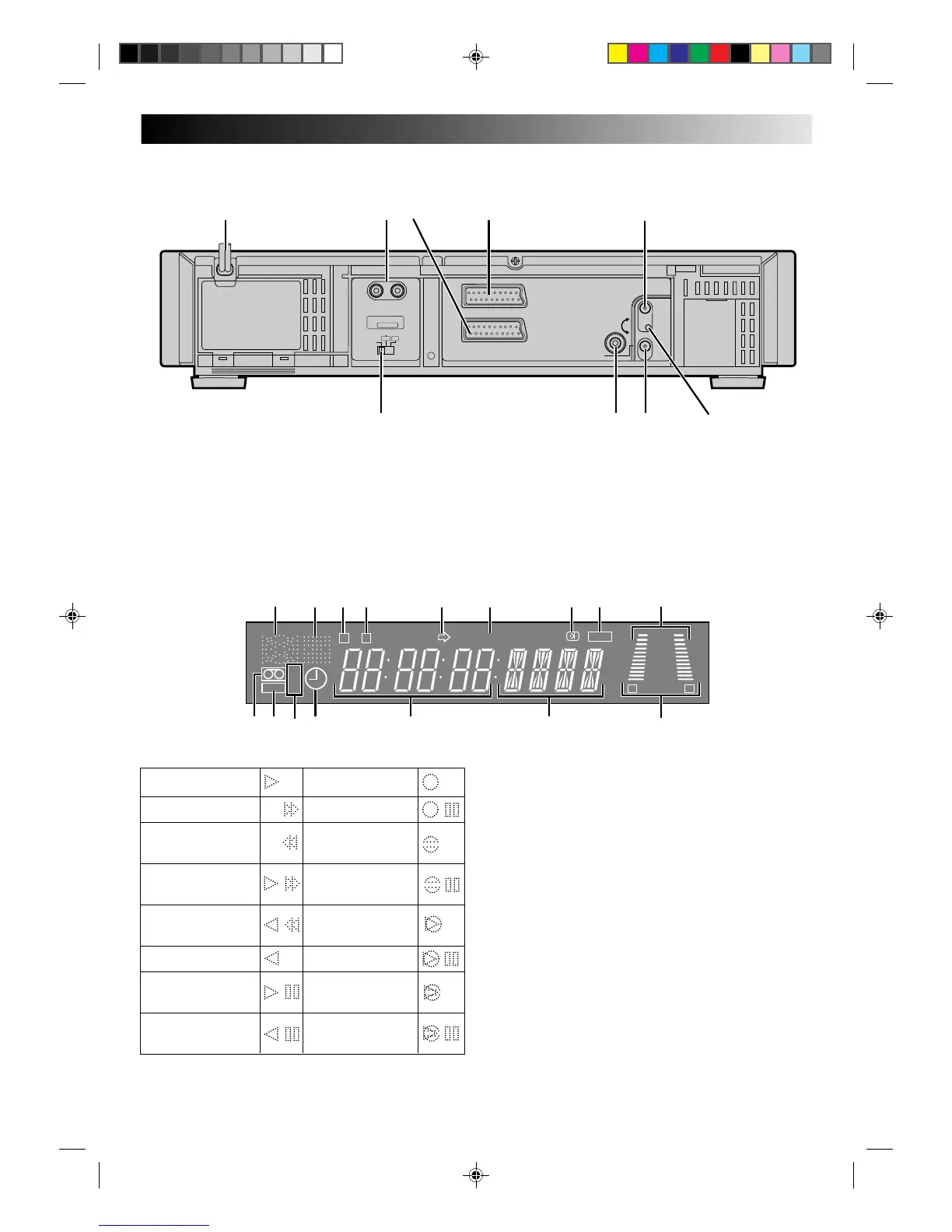

JVC HR-E939EG - Display Panel; Rear View

EN 45
1 Mains Power Cord (Z pg. 3)
2 AUDIO OUT(L/R) Connectors (Z pg. 3)
3 AV1 IN/OUT Connector (Z pg. 3)
4 AV2 IN/DECODER Connector (Z pg. 4)
5 ANT. IN Connector (Z pg. 3)
6 AV2 SELECT/RF TEST Switch (Z pg. 4)
7 R.A.EDIT Connector (Z pg. 32)
8 RF OUT Connector (Z pg. 3)
9 RF Output Channel Adjustment Screw (Z pg. 4)
REAR VIEW
DISPLAY PANEL
R.A. EDIT
AV2 IN/DECODER
RF OUT
32
40
ANT. IN
AV1 IN/OUT

AV2 SELECT
/ RF TEST
DECODER
AV2
OFF ON
R
L
AUDIO OUT
1
32
5
6
8
79
4
M
D
SP
LP
EP
VIDEO
D
I T R
W
+8
4
0
6
10
–20dB
NORM
L
R
REMAIN
0#! $ %
1
25
63478
@ ^
9
3 ”DAILY” Program Mark (Z pg. 25)
4 ”WEEKLY” Program Mark (Z pg. 25)
5 Start Time/Stop Time Indicator (Z pg. 24)
6 Tape Remaining Time Indicator (Z pg. 13)
7 PDC/VPS Indicator (Z pg. 28)
8 VIDEO Indicator (Z pg. 21)
9 B.E.S.T. Picture System Display (Z pg. 17)
Audio Level Indicator (Z pg. 21)
0 ”Cassette Loaded” Mark
! Instant Timer Recording (Z pg. 21)
@ Tape Speed Indicators (Z pg. 16)
# ”Timer” Indicator (Z pg. 25)
$ Clock/Counter/Tape Remaining Time Display
(Z pg. 7)
% Channel/Mode Display (Z pg. 5)
^ Audio Mode Indicator (Z pg. 13)
1 and 2 Symbolic Mode Indicators
PLAY: RECORD:
FF: RECORD PAUSE:
REW:
AUDIO
DUBBING:
FF VARIABLE AUDIO DUBBING
SHUTTLE SEARCH: PAUSE:
REW VARIABLE
INSERT:
SHUTTLE SEARCH:
REVERSE PLAY: INSERT PAUSE:
STILL: AUDIO DUBBING
FORWARD SLOW: INSERT:
STILL: AUDIO DUBBING
REVERSE SLOW: INSERT PAUSE:
* The indicator will blink during turbo search.
*
*
