JVC HR-J635EK User Manual

7
Connection To
A Stereo
System
These instructions enable you to connect your video recorder to
your Hi-Fi stereo system (if you have one) and listen to the
soundtrack through the stereo.
MAKE CON N ECTIONS
1
Connect the AUDIO OUT L and R connectors on your
video recorder to the AUX IN or TAPE MONITOR
terminals on your stereo system's receiver or amplifier.
N O TES:
● When connecting your recorder's audio output connectors to
a stereo amplifier, make sure you connect L and R correctly.
● If NICAM TV broadcasts are receivable in your area, this
recorder can record them independently of the TV set and
play them back through the connected stereo system.
● When listening to sound through the connected stereo system,
turn the TV's volume down completely.
CAUTIO N S:
● This recorder has a dynamic range of more than 80 dB with
regards to its Hi-Fi audio capability. It is recommended that
you check the maximum level if you are going to listen to the
Hi-Fi audio signals through a stereo amplifier. A sudden surge
in the input level to the speakers may damage them.
● Some speakers and televisions are specially shielded to
prevent television interference. If both are of the non-shielded
type, do not place the speakers adjacent to the TV set as this
can adversely affect the video playback picture.
PAUSE/
R.A.EDIT
AV2 IN
RF OUT
RF OUT
ON–TEST–OFF
32
40
ANT. IN
AV1 IN/OUT
R
L
AUDIO OUT
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I

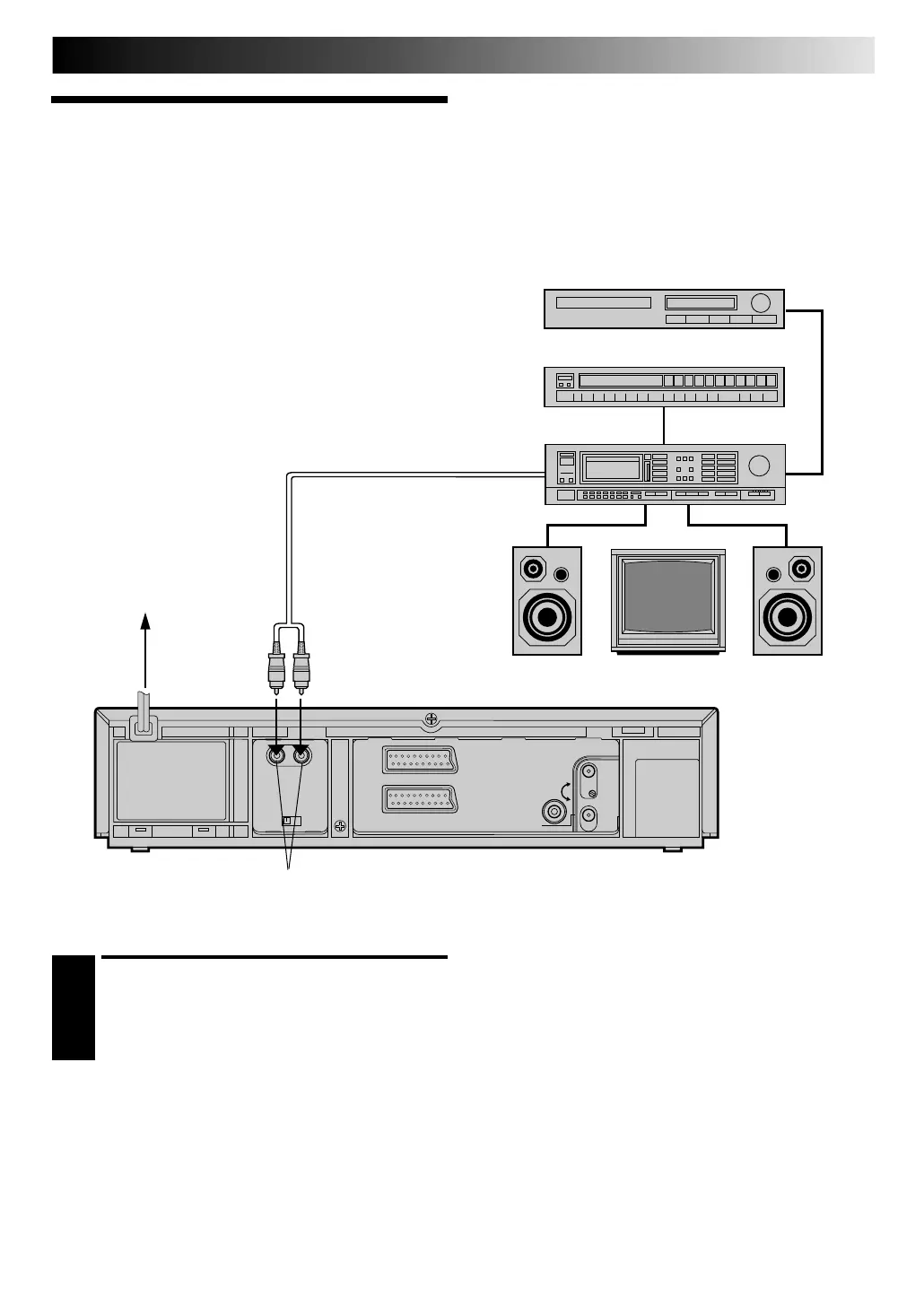

AUX IN or TAPE MONITOR
Television
Mains outlet
Back of Recorder
AUDIO OUT
Speaker Speaker
CD Player
FM Tuner
Stereo Amplifier
Audio Cable (not provided)
