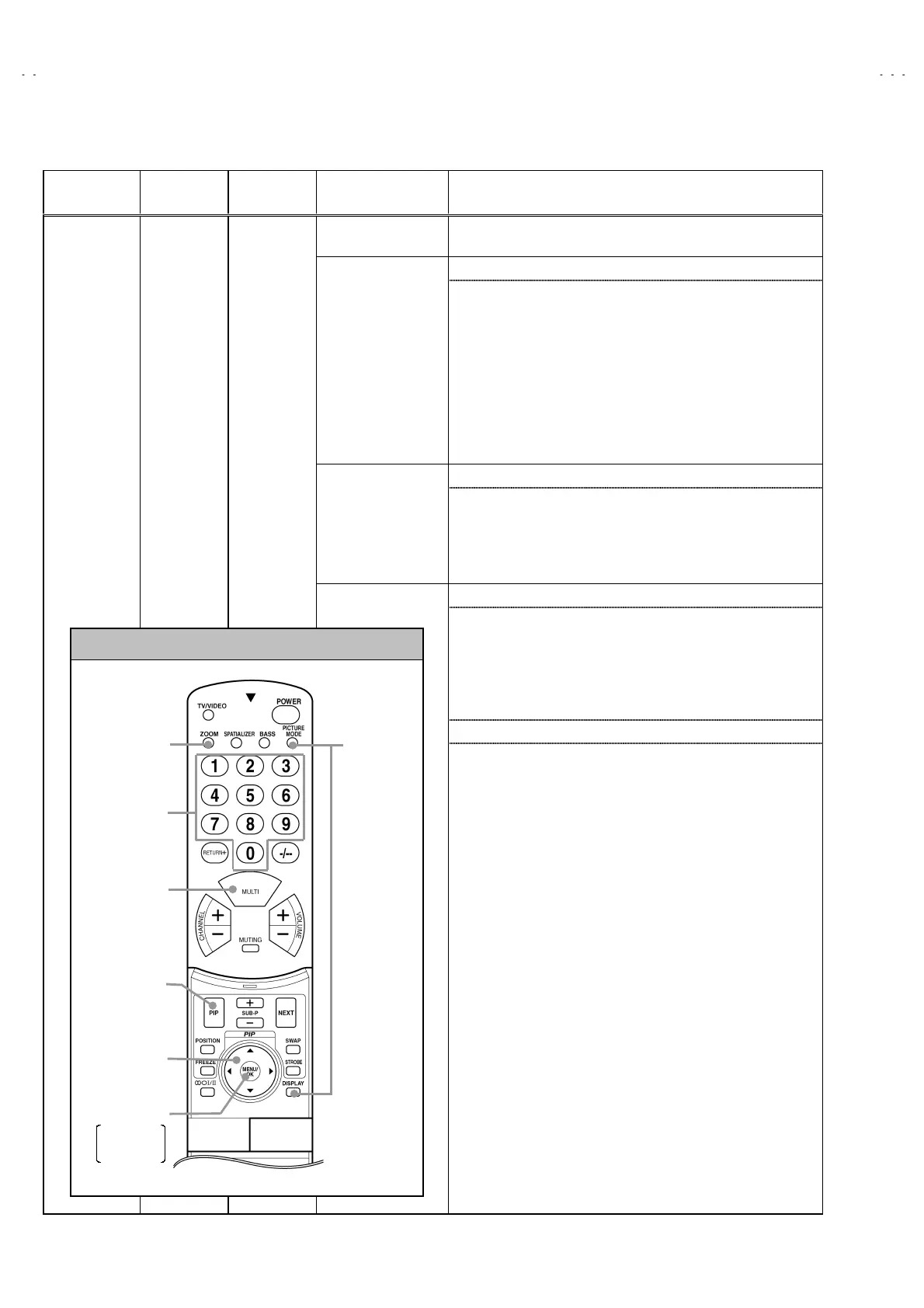

JVC HV-L34PRO User Manual

No. 51809
HV-L34PRO
24
Item
Measuring
instrument
Test point Adjustment part Description
7.COLOUR
(PAL/SECAM/NTSC)
[Method of adjustment without measuring instrument]
(PAL COLOUR)PAL COLOUR
1. Receive PAL broadcast.
2. Select 2.V/C from the SERVICE MENU.
3. Select 7.COLOUR with the function UP/DOWN key.
4. Set the initial setting value for PAL COLOUR with the function
LEFT/RIGHT key.
5. If the colour is not the best with the initial set value, make fine
adjustment until you get the best colour.
6. Press the MENU/OK key and memorize the set value.
(SECAM COLOUR)SECAM COLOUR
1. Receive a SECAM broadcast.
2. Make fine adjustment of SECAM COLOUR in the same
manner as for above.
(NTSC 3.58 COLOUR)
1. Input a NTSC 3.58MHz COMPOSITE VIDEO signal from the
EXT terminal.
2. Make similar fine adjustment of NTSC 3.58 COLOUR in the
same manner as for above.
(NTSC 4.43 COLOUR)
Adjustment
of SUB
COLOUR
Ⅰ
ⅠⅠ
Ⅰ
Remote
control unit
NTSC COLOUR
1. Receive a NTSC 4.43MHz COMPOSITE VIDEO signal from
the EXT terminal.
2. Make similar fine adjustment of 4.43 COLOUR in the same
manner as for above.
CONTENTS
key
PIP key
MENU/OK key
FUNCTION key
(UP/DOWN &
LEFT/RIGHT key)
SETTING ITEM
SELECT key
(Numbers key)
SERVICE
MENU/
&SYSTEM
CONSTANT
key
MEMORY
(STORE)
key
SERVICE MENU KEY
ZOOM
(ASPECT)
key
