JVC HX-GD8 Service Manual

1-10 (No.MB188)

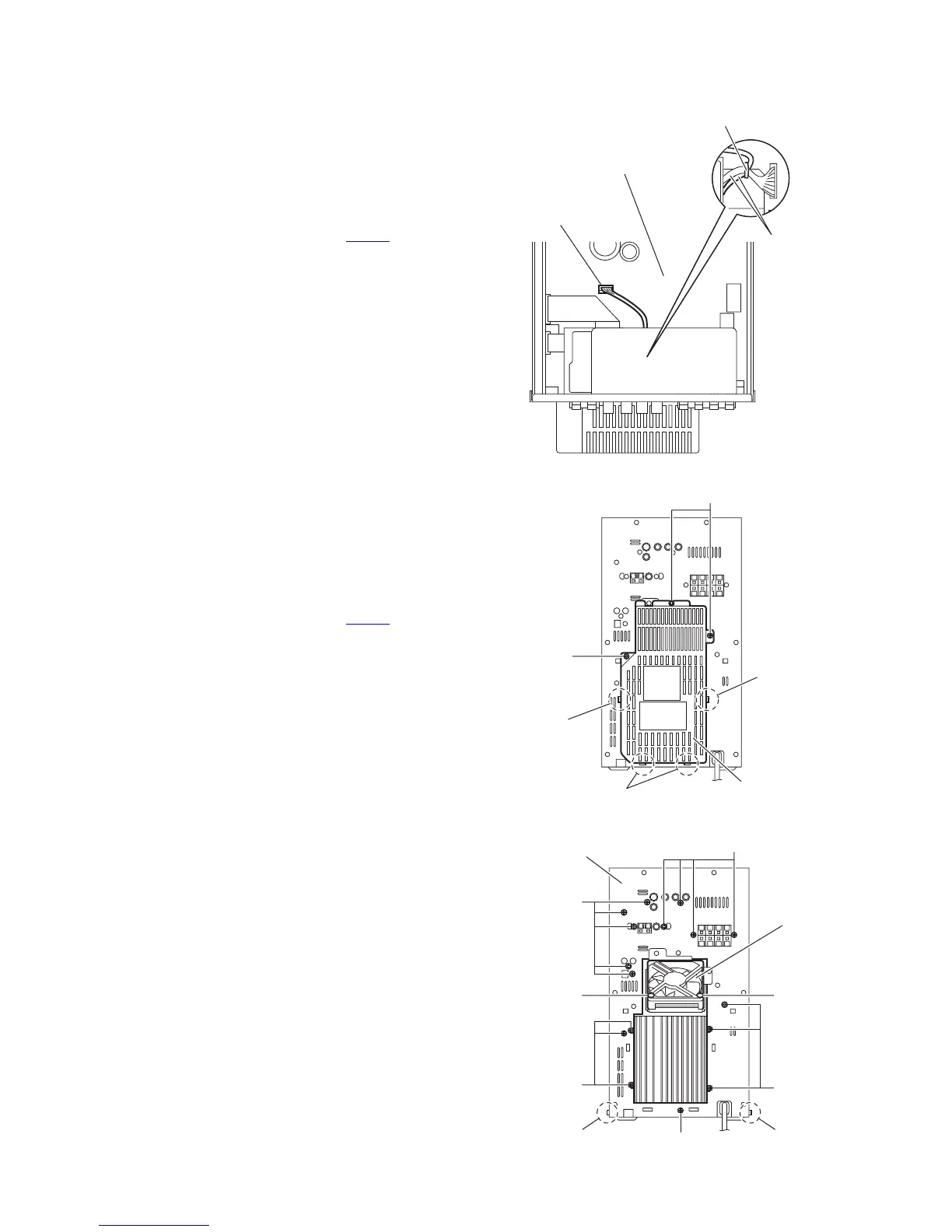

3.1.5 Removing the rear panel
(See Figs.10 to 12)
• Prior to performing the following procedures, remove the metal
cover.
(1) From the top side of the main body, remove the tie band
bundling the wires. (See Fig.10.)
Reference:
After reassembling, bundle the wires with the new tie
band as before. (See Fig.10.)
(2) Disconnect the wire from the connector CN202
on the
bridge board. (See Fig.10.)
(3) From the back side of the main body, remove the two
screws G and screw H attaching the rear cover. (See
Fig.11.)
(4) Release the sections c and remove the rear cover. (See
Fig.11.)
(5) Remove the sixteen screws J attaching the rear panel.
(See Fig.12.)
(6) From the both sides of the main body, release the joints d
attaching the rear panel to the chassis base and remove
the rear panel with the fan. (See Fig.12.)
3.1.6 Removing the fan
(See Figs.10 to 12)
• Prior to performing the following procedures, remove the metal
cover.
(1) From the top side of the main body, remove the tie band
bundling the wires. (See Fig.10.)
Reference:
After reassembling, bundle the wires with the new tie
band as before. (See Fig.10.)
(2) Disconnect the wire from the connector CN202
on the
bridge board. (See Fig.10.)
(3) From the back side of the main body, remove the two
screws G and screw H attaching the rear cover. (See
Fig.11.)
(4) Remove the two screws K attaching the fan. (See Fig.12.)
(5) Take out the fan from the main body.
Fig.10
Fig.11
Fig.12
Bridge board
CN202
Tie band
Wires
Rear cove
r
c
c
c
H
G
Rear panel
Fan
dd
J
J
J
J
J
KK
