JVC HX-GD8 Service Manual

(No.MB188)1-9
3.1.3 Removing the tuner
(See Figs.8 and 9)
• Prior to performing the following procedures, remove the metal
cover.
(1) From the right side of the main body, disconnect the card
wire from the connector CN560
on the main board. (See
Fig.8.)
(2) From the back side of the main body, remove the two
screws E attaching the tuner to the rear panel. (See Fig.9.)
3.1.4 Removing the video board
(See Figs.8 and 9)
• Prior to performing the following procedures, remove the metal
cover.
(1) From the right side of the main body, disconnect the card
wire from the connector CN502
on the main board. (See
Fig.8.)
(2) From the back side of the main body, remove the two
screws F attaching the video board to the rear panel. (See
Fig.9.)

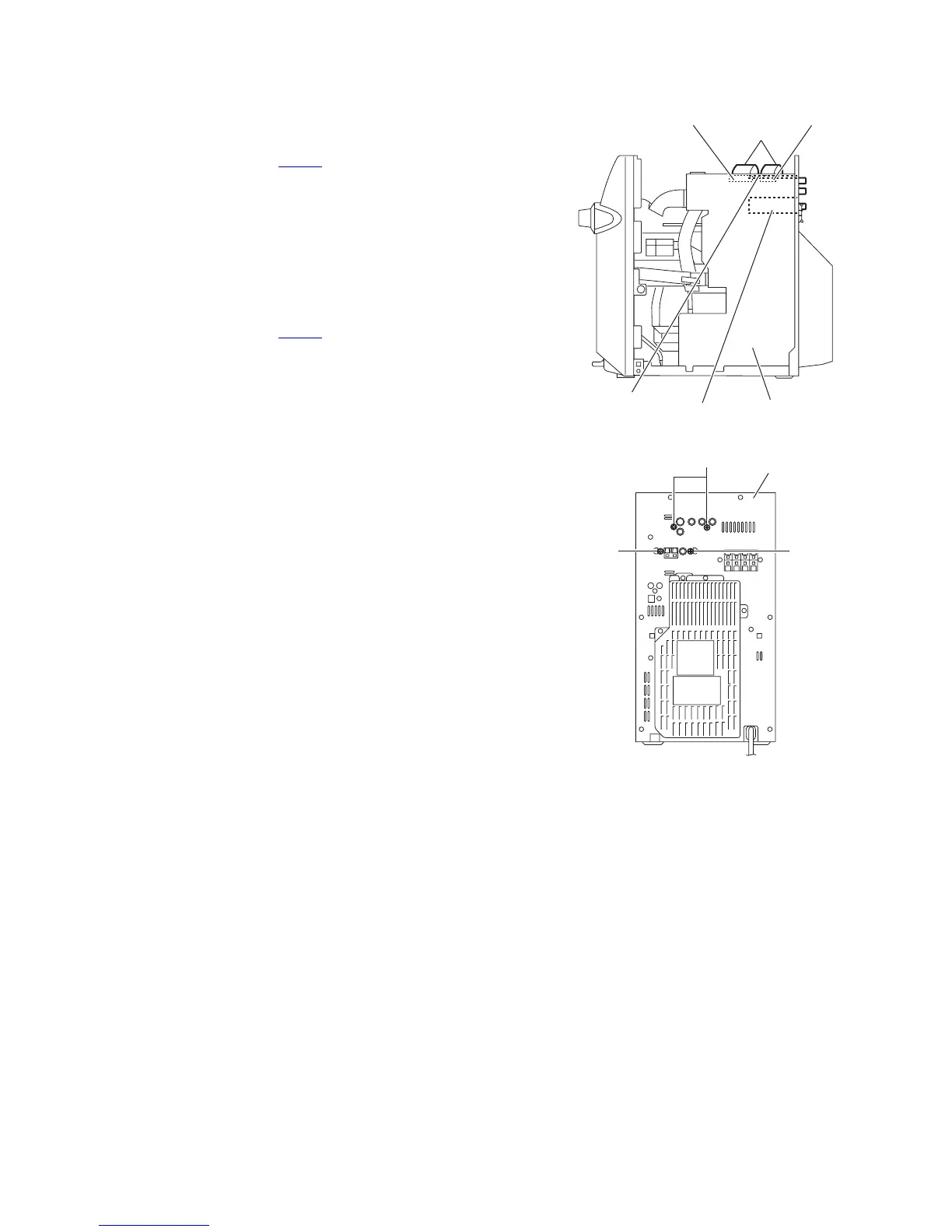

Fig.8
Fig.9
Card wires
Tuner
Main board
CN560
CN502
Video board
Rear panel
E E
F
