Remove the two screws I retaining the gear bracket.
While pressing the pawl t fixing the gear bracket in
the arrow direction, remove the gear bracket.
From the notch u section on the chassis assembly
fixing the edge of gear bracket, remove and take out
the gear bracket.
Remove the belts respectively from the right and left
actuator motor pulleys and pulley gears.
After turning over the chassis assembly, remove the
actuator motor while spreading the four pawls v
fixing the right and left actuator motors in the arrow
direction.
1.
2.
3.
4.
5.

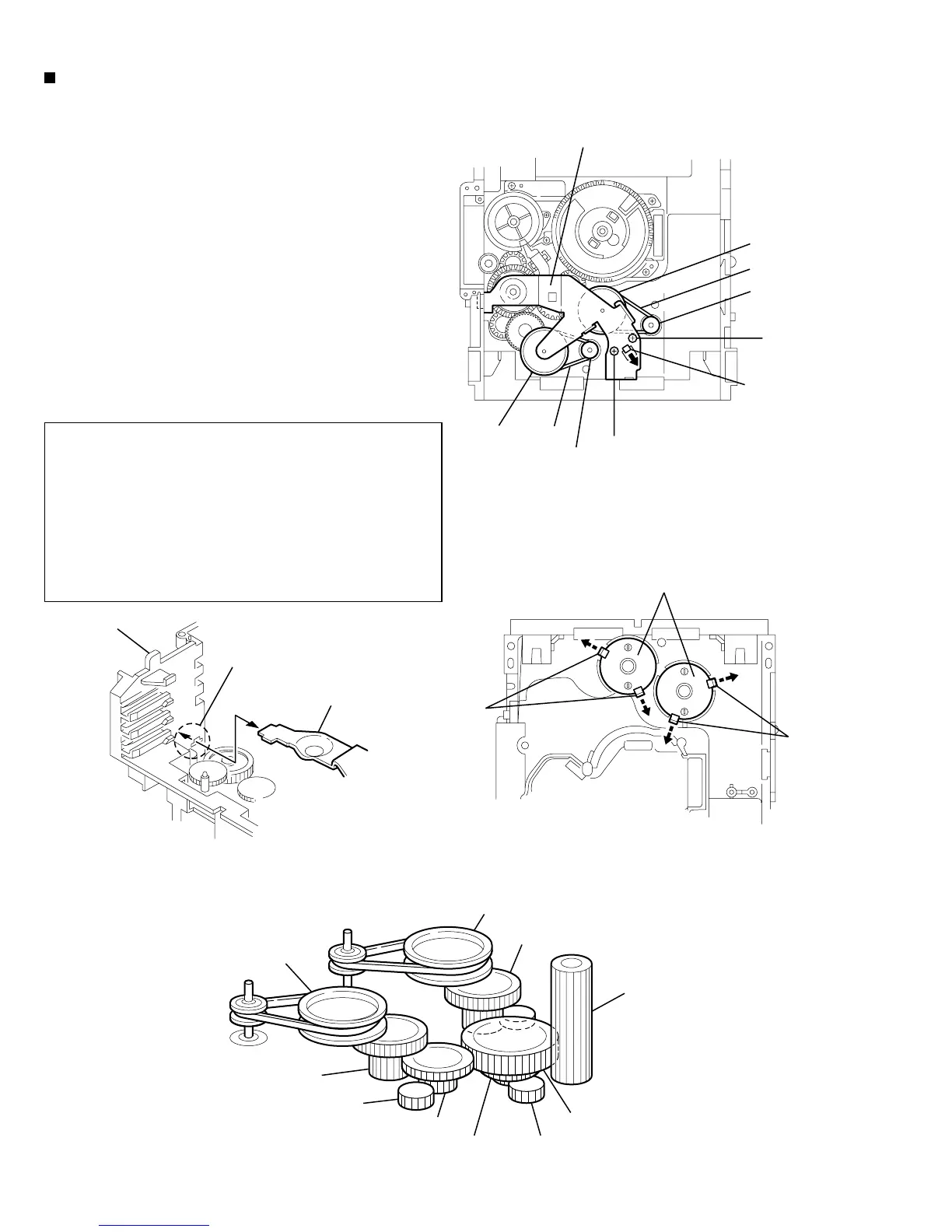

Removing the actuator motor and belt
(See Fig.18~21)
When the chassis assembly is turned
over under the conditions wherein the
gear bracket and belt have been
removed, then the pulley gear as well as
the gear, etc. constituting the gear unit
can possibly be separated to pieces. In
such a case, assemble these parts by
referring to the assembly and
configuration diagram in Fig. 21.
ATTENTION:
Pulley gear
Belt
Motor pulley
Belt
Pulley gear
Motor pulley
Gear bracket
t
I
I
Pawl
v
Actuator motor
v
Chassis assembly
u
Gear bracket
Pulley gear
Gear B
Cylinder gear
Gross gear U
Gear C
Gross gear L
Select gear
Gear B
Gear C
Pulley gear
Assembly and Configuration Diagram
Fig.18
Fig.20
Fig.19
Fig.21
