JVC HX-Z9 - Disassembly

1-6 (No.22066)
SECTION 3
DISASSEMBLY
3.1 Main body
3.1.1 Removing the metal cover

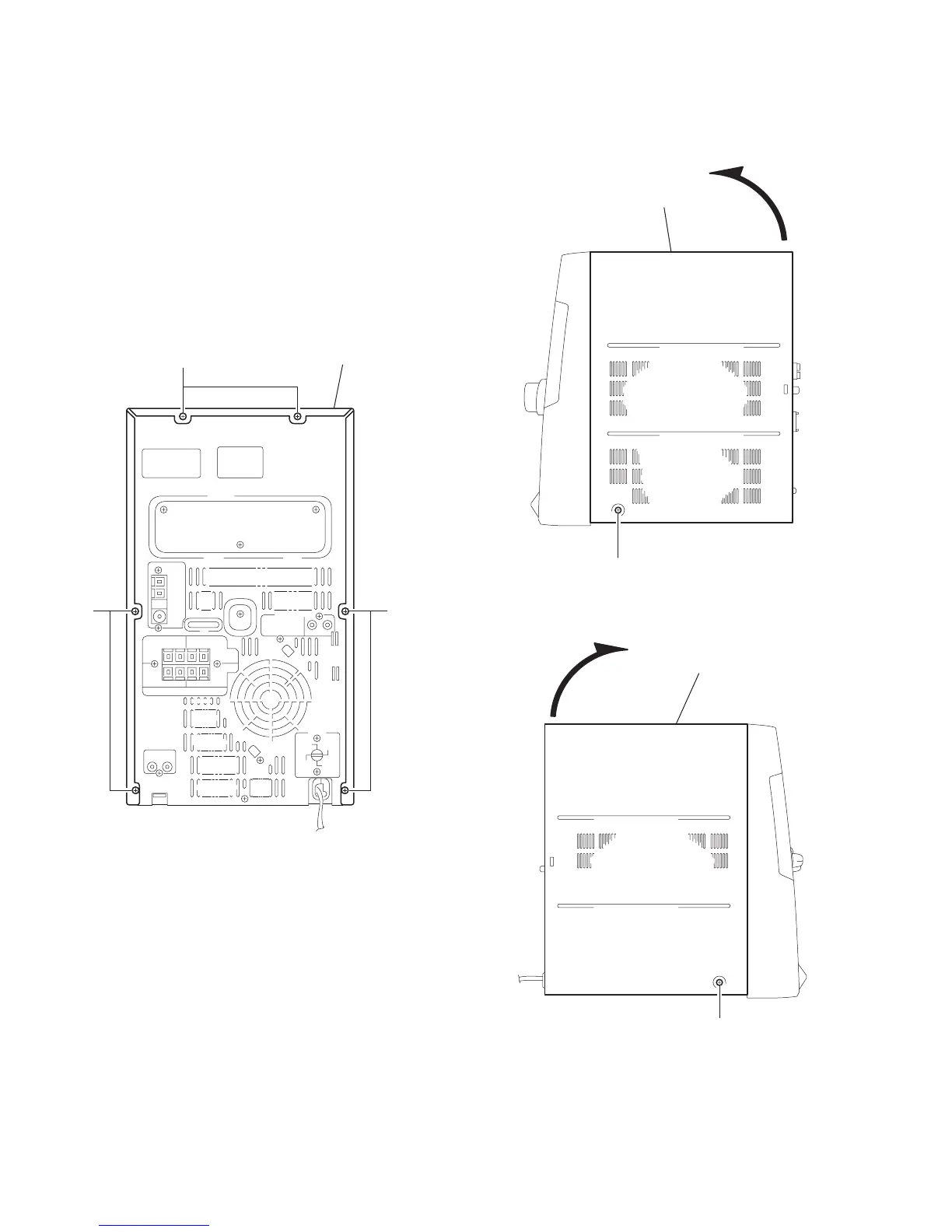

(See Fig.1~3)
(1) Remove the six screws A on the back of the body.
(2) Remove the screw B on each side of the body.
(3) Remove the metal cover from the body by lifting the rear
part of the cover.
CAUTION:
Do not break the front panel tab fitted to the metal cover.
Fig.1
Fig.2
Fig.3
A
AA
Metal cover
B
Metal cover
Metal cover
B
