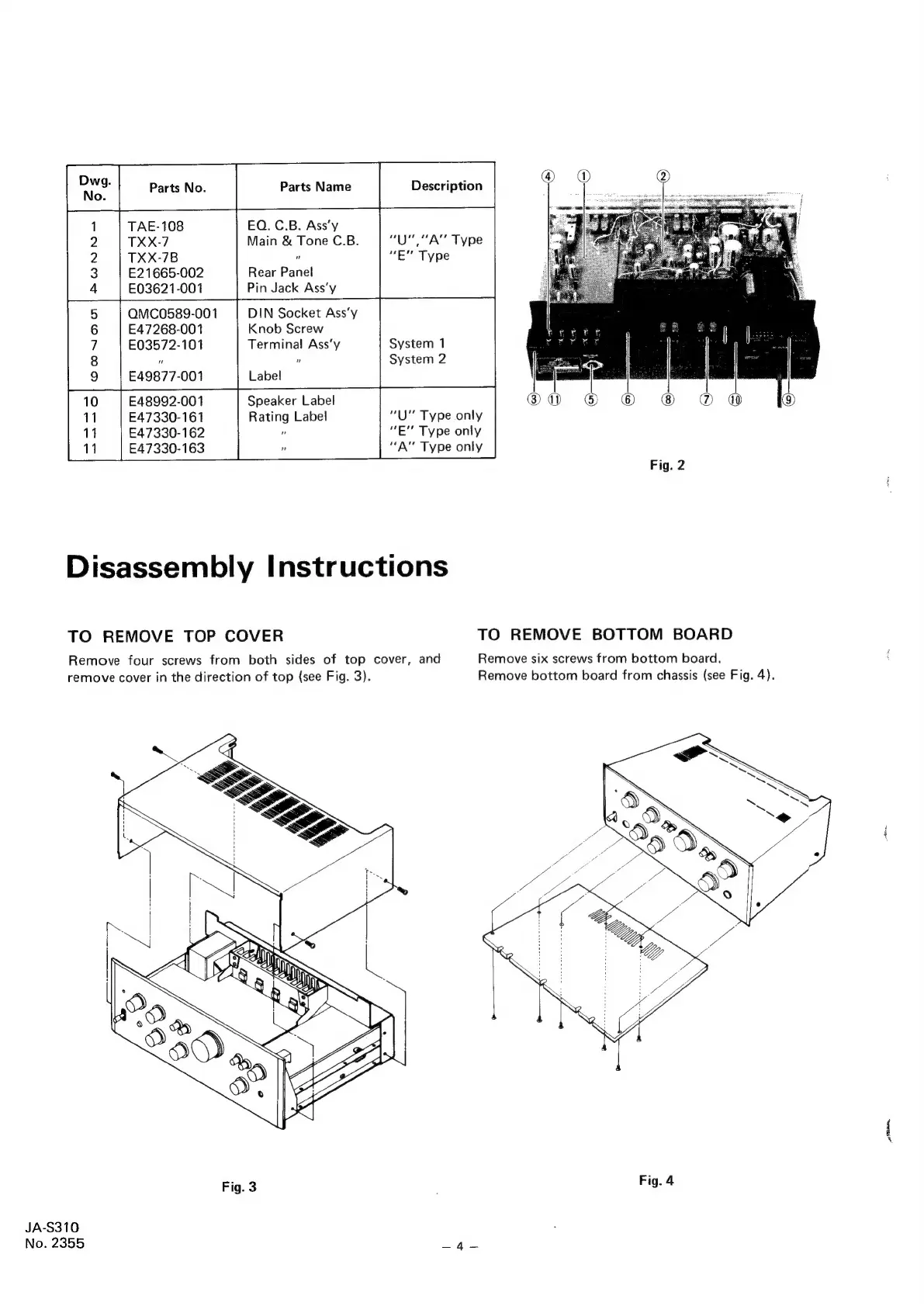

JVC JA-S310 - Page 4

Parts No. Parts Name
1 TAE-108 EQ. C.B. Ass’y
2
TXX-7
Main
&
Tone
C.B.
“U"
"A"
Type
2 TXX-7B ” “E” Type
3 E21665-002 Rear Panel
4 E03621-001 Pin Jack Ass’y
5 OMC0589-001 DIN Socket Ass’y
6 E47268-001 Knob Screw
7 E03572-101 Terminal Ass’y System 1
8 ”" ” System 2
9 E49877-001 Label
E48992-001 Speaker Label
E47330-161 Rating Label “U" Type only
E47330-162 ” ““E’ Type only
E47330-163 " “A" Type only
Fig. 2
Disassembly Instructions
TO REMOVE TOP COVER TO REMOVE BOTTOM BOARD
Remove four screws from both sides of top cover, and Remove six screws from bottom board.
remove cover in the direction of top (see Fig. 3). Remove bottom board from chassis (see Fig. 4).
Fig.
3
Fig.
4
JA-S310
No. 2355 —-4-—
