JVC KD-AR5500 Service Manual

(No.MA140)1-21
3.2.12 Removing the SW board and rest SW board
(See Fig.23)
• Remove the mechanism control board.
(1) From the bottom side of the CD mechanism assembly, re-
move the screw L attaching the SW board.
(2) Remove the screw M attaching the rest SW board.

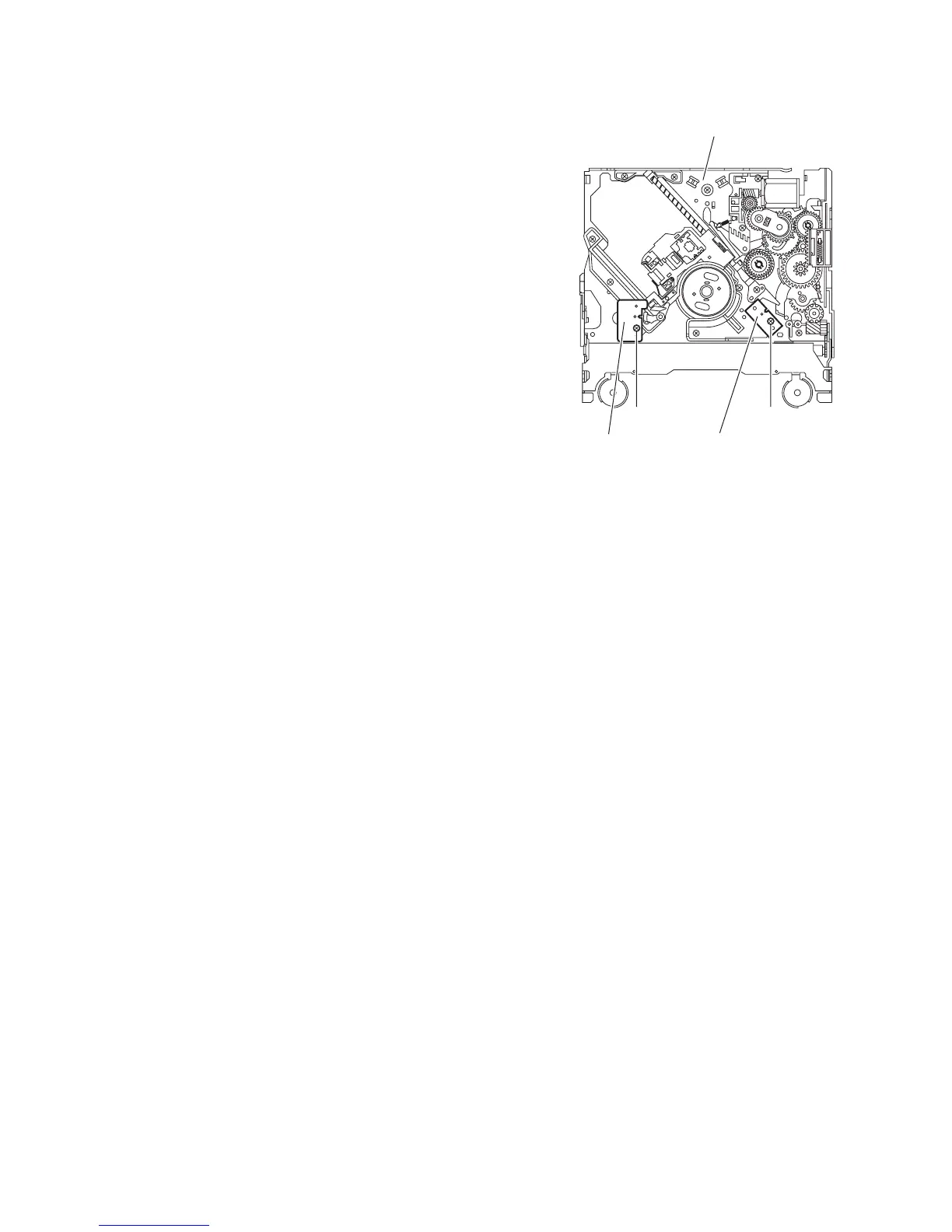

Fig.23
ML
Rest SW boardSW board
CD mechanism assembly
