JVC KD-AR5500 Service Manual

(No.MA140)1-25
BACK
NOW . . .
CD ERROR CLEAR
BACK
NOW . . .
CH ERROR CLEAR
BACK
NOW . . .
MECHA ERR CLEAR
BACK
NOW . . .
PICTURE CLEAR
BACK
FM DATA
EEPROM
VIEW
BACK
VER=J021
87.5 MHz SM= 0%
MP=100%
A
dj = 49%
BW=5
BACK
VER=J021
87.5 MHz SM= 0%
MP=100%
A
dj = 49%
BW=5
BACK
VER= V ***
PI= ****
PTY= **
TP/TA= * / *
MS/DI= * / *
SM= *** %
MP=
*** %
A
dj = *** %
BW=
*
BACK
AF
**** . ** ;
**** . ** ,
**** . ** ,
**** . ** ,
BACK
SM= 0%
MP=100%
A
dj = 49%
BW=5
BACK
VER=J021
87.5 MHz SM= 0%
MP=100%
A
dj = 49%
BW=5
BACK
SYNC
=
*
BACK
C
D
E
F
G
CD ERROR CLEAR
CH ERROR CLEAR
MECHA ERROR CLEAR
PICTURE CLEAR
FM DATA(FM:Standard)
AM DATA (AM: Common )

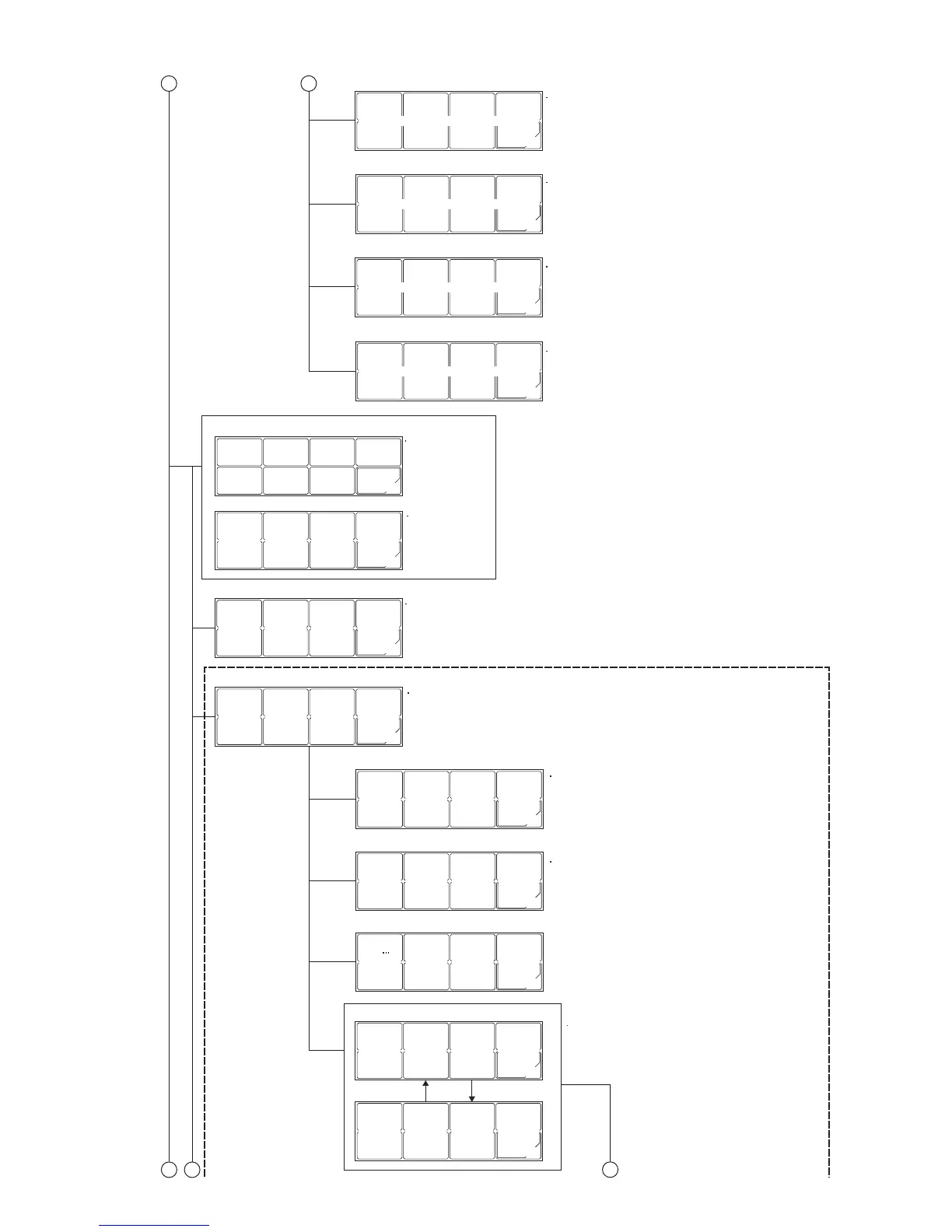

DSP TUNER SERVICE MODE (FM:RDS) (MENU)
RDS_AF
RDS_DATA
RDS_AFHOLD
RDS_ENGINEER
5
EPROM (CD ERROR) clear
Error code history elimination
EPROM (CH ERROR) clear
Error code history elimination
EPROM ( MECHA ERROR) clear
Error code history elimination
EPROM ROM (all PICTURE) clear
FM received
Without RDS model
FM received
AM received
FM received
Only used RDS model
SPI= ***
***.**
MHz
*******
EON
STREO
**** . ** ;
**** . ** ,
**** . ** ,
**** . ** ,
**** . ** ;
**** . ** ,
**** . ** ,
**** . ** ,
AF=
***.**
Flags
SM=
*** %
MP=
*** %
Adj=
*** %
MF=
***.**
PI= ****
SM= *** %
MP=
*** %
Adj=
*** %
STTH1
=
******
PIC
=
*****
SMTH2
=
******
AFC
=
*****
Mp
=
******
MORE
Adj
=
******
SMM1
=
******
SM L
=
******
SSM2
=
******
MORE
Only used RDS model
It is made to scroll upwards
for every second.
MORE
MORE
For the reason for production,
please do not choose with service.
Operation will become unusual if
an unsuitable setup is carried out.
ONLY USED WITH RDS MODEL
