1-10 (No.MA112)

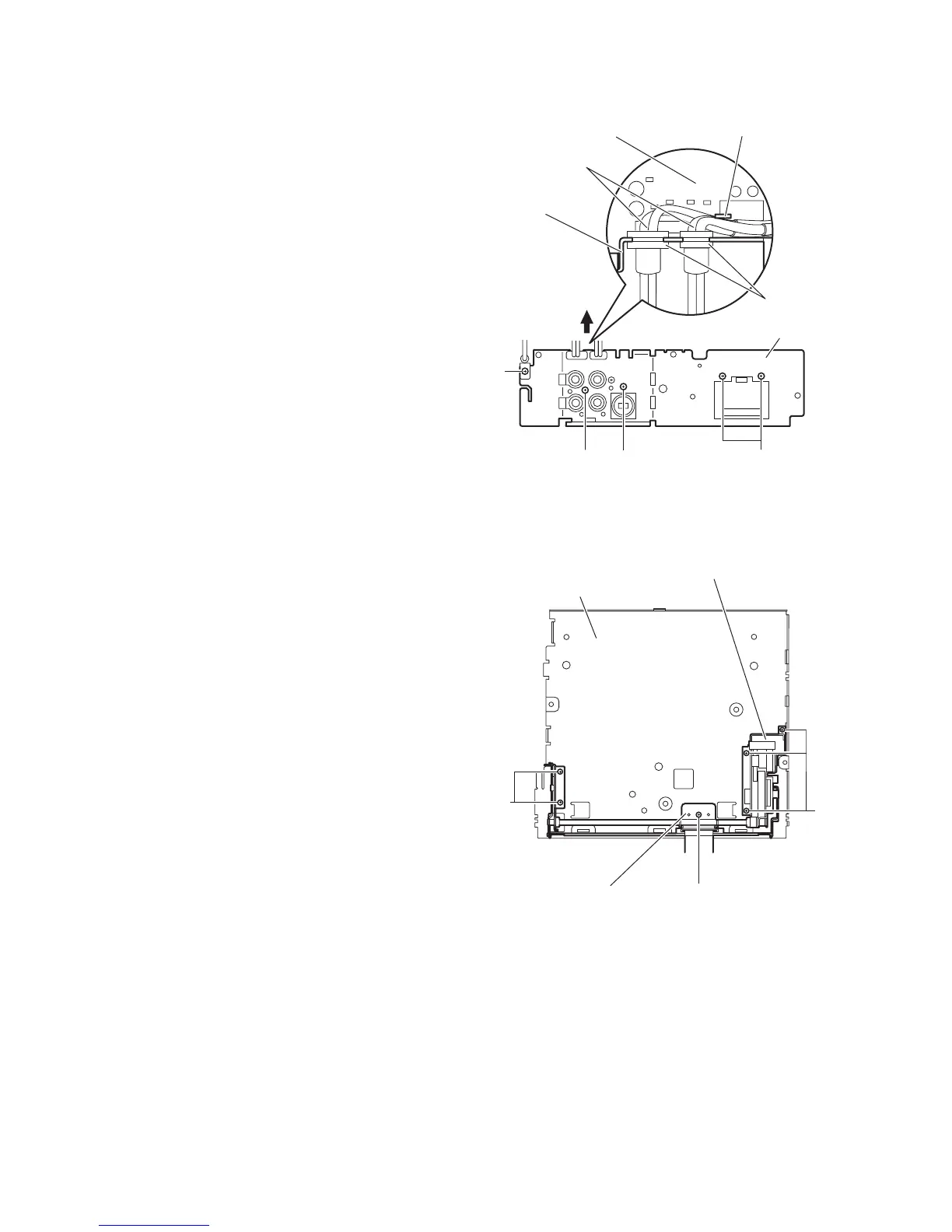

3.1.8 Removing the rear bracket
(See Fig.13)
• Prior to performing the following procedures, remove the front
panel assembly, heat sink, top chassis assembly and main
board.
(1) From the rear side of the main board, remove the wires
from the rear bracket in the direction of the arrow.
(2) Remove the screw K, three screws L and screw M attach-
ing the rear bracket to the main board.
Reference (For KD-AR760 only):
After attaching the rear bracket to the main board, pass the
wires through the wire holder and insert them into the slots of
the rear bracket.
Fig.13
3.1.9 Removing the front door mechanism assembly
(See Fig.14)
• Prior to performing the following procedures, remove the front
panel assembly, heat sink, top chassis assembly and main
board.
(1) From the top side of the bottom chassis assembly, remove
the screw N attaching the FPC guide to the bottom chassis.
(2) Remove the five screws P attaching the front door mecha-
nism assembly to the bottom chassis.
Reference:
When attaching the screws N and P, apply a locking
agent them.
(3) Take out the front door mechanism assembly from the bot-
tom chassis.
Fig.14
Rear bracket
L
L K
M
Main board Wire holder (KD-AR760)
Slots
Wire (KD-AR760)
Rear bracket
Bottom chassis
P
P
N
FPC guide
Front door mechanism assembly
To Next Page
