JVC KD-AR760

(No.MA112)1-11

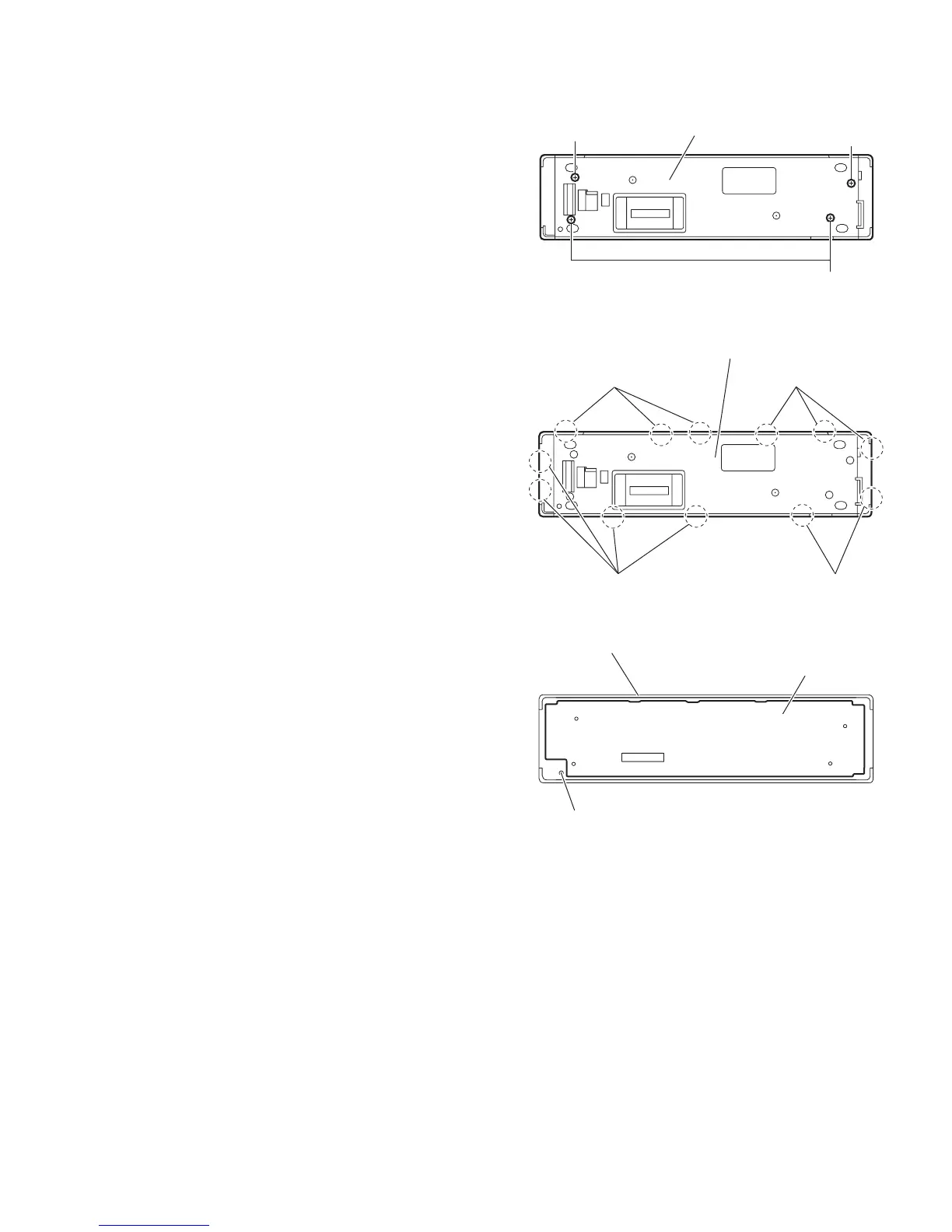

3.1.10 Removing the front board
(See Figs.15 to 17)
• Prior to performing the following procedures, remove the front
panel assembly.
(1) From the rear side of the front panel assembly, remove the
four screws Q attaching the rear cover assembly to the
front panel assembly. (See Fig.15)
(2) Release the twelve joints c of the front panel assembly and
remove the rear cover assembly. (See Fig.16)
(3) Take out the front board from the front panel assembly.
(See Fig.17)
Note:
When removing the rear cover assembly and front board, be
careful not to lose the comp. spring. (See Fig.17)
Fig.15
Fig.16
Fig.17
Q
Rear cover assembly
Q
Q
Rear cover assembly
Joints c
Joints c
Joints c Joints c
Front board
Front panel assembly
Comp. spring
