JVC KD-AR865BTS

ENGLISH
31
STEERING
WHEEL
REMOTE
KD-R960BTS KD-AR865BTS
Car fuse block
Ignition switch
Recommended
connection
Light blue/yellow
Vehicle-specific Wiring
Harness (separately
purchased)
For more information:
Metra Electronics:
www.metraonline.com
Scosche Industries:
www.scosche.com
Blue/white: To amplifier
Blue: To power antenna
Make this connection if your vehicle
factory wiring harness does not have
“12V ignition switch” wire.
Separate
red wire

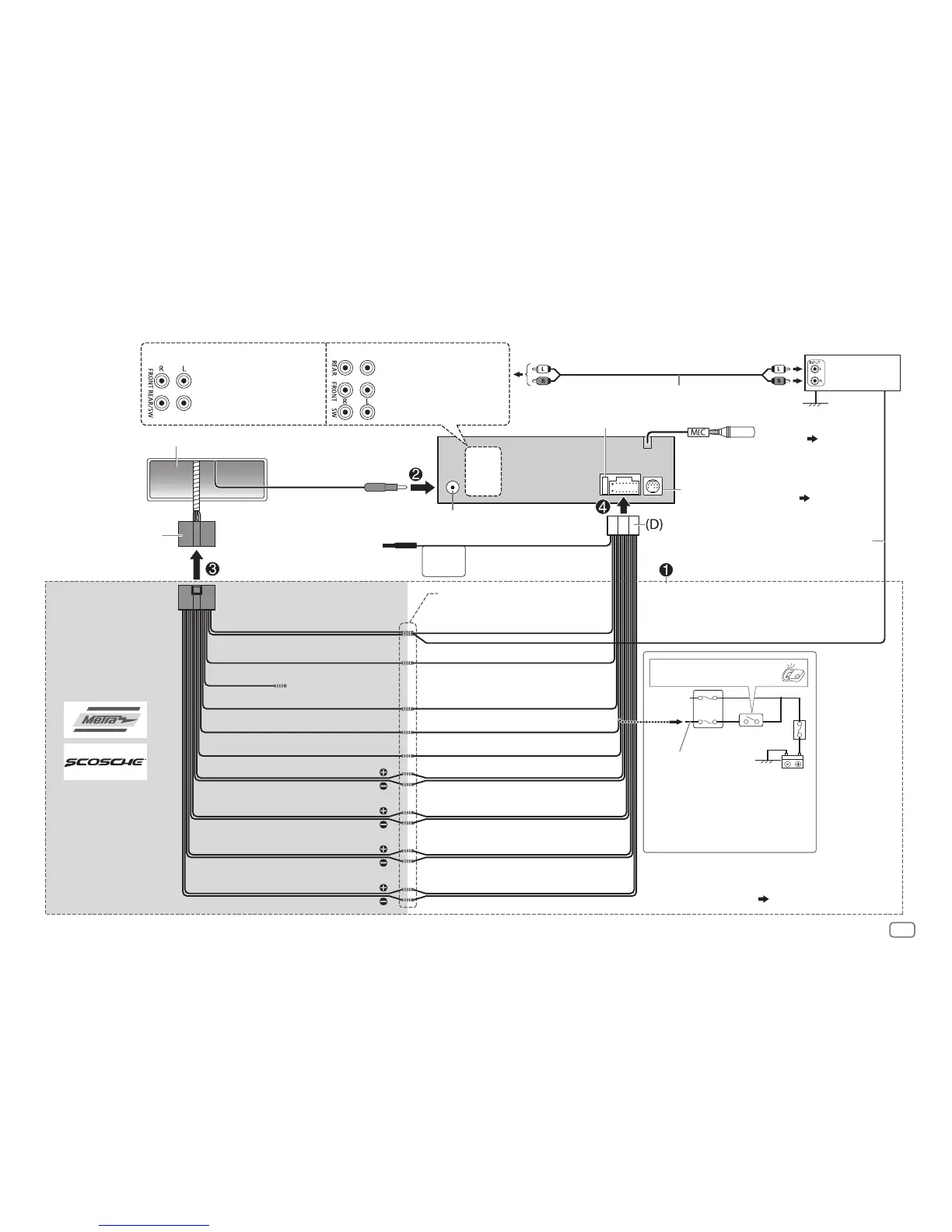

Wiring connection (for KD-R960BTS / KD-AR865BTS )
Signal cord (not supplied)
Remote wire
(not supplied)
To the steering
wheel remote
control adapter
Fuse (10A)
Antenna terminal
JVC Amplifier
*
1
Factory wiring
harness (vehicle)
Vehicle dashboard
Black: Ground
Yellow: Battery 12V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
(Not used)
Blue/white: Remote (200mA max.)
Front output
Subwoofer output
Rear output
MIC (Microphone input
terminal)
( 14)
To the optional SiriusXM Vehicle Tuner
(commercially available)
( 11)
Front output
Rear/subwoofer output
Brown
Green: Rear speaker (left)
*
2
Green/black *
2
*
2
You can also connect a subwoofer speaker directly
using this lead without an external subwoofer
amplifier. For setting,
21, 22 .
*
1
Firmly connect the ground wire of the amplifier
to the car’s chassis to avoid damaging the unit.
