1-10 (No.MA142)
3.1.7 Removing the rear bracket
(See Fig.12)
• Prior to performing the following procedures, remove the front
panel assembly, heat sink, top chassis assembly and main
board.
(1) From the back side of the main board, remove the wires
from the rear bracket in the direction of the arrow.
(2) Remove the screw K, three screws L and screw M attach-
ing the rear bracket to the main board.
Reference:
After attaching the rear bracket to the main board, pass
the wires through the wire holder and insert them into the
slots of the rear bracket.
(3) Take out the rear bracket from the main board.

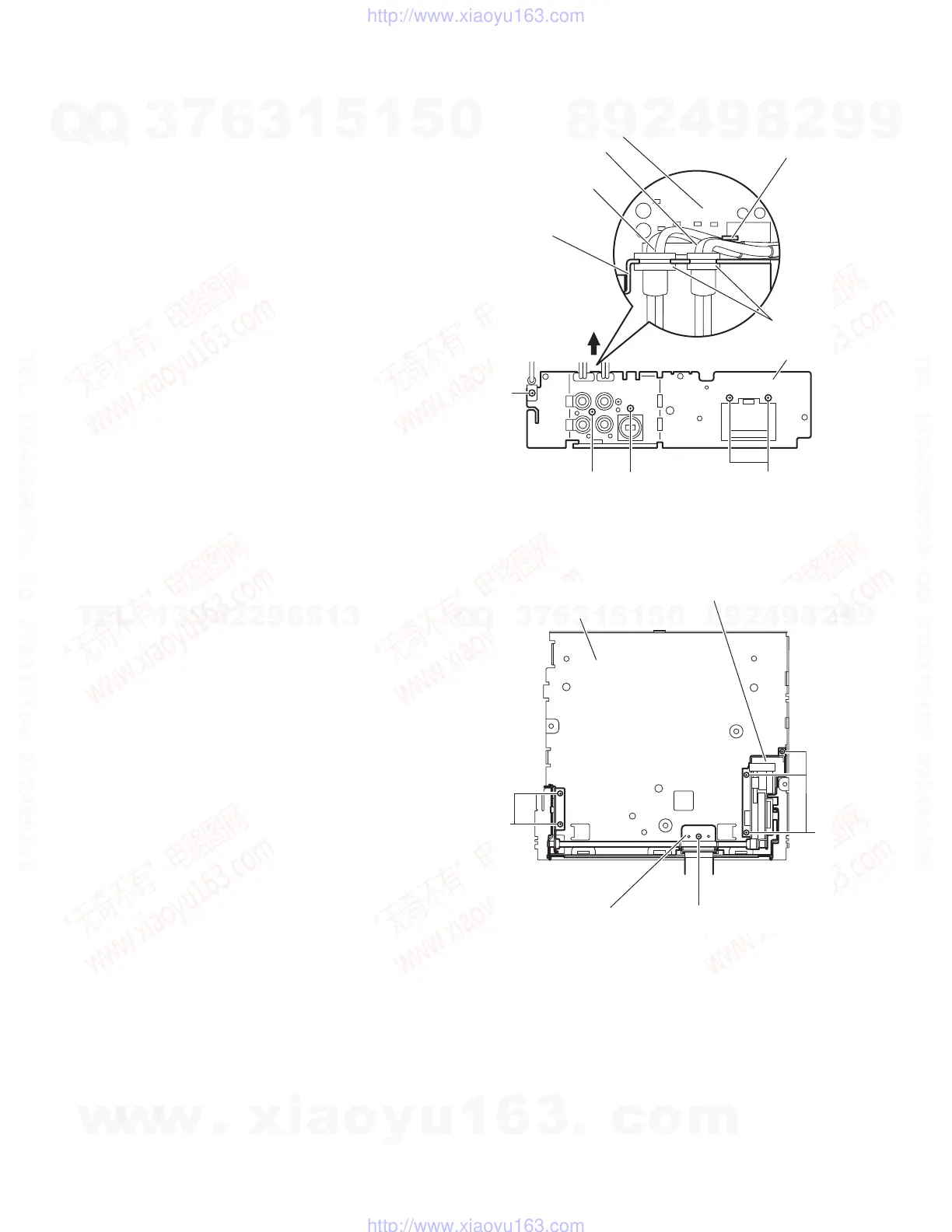

Fig.12
3.1.8 Removing the front door mechanism assembly
(See Fig.13)
• Prior to performing the following procedures, remove the front
panel assembly, heat sink, top chassis assembly and main
board.
(1) From the top side of the bottom chassis assembly, remove
the screw N attaching the FPC guide to the bottom chassis.
(2) Remove the five screws P attaching the front door mecha-
nism assembly to the bottom chassis.
Reference:
When attaching the screws N and P, apply a locking
agent them.
(3) Take out the front door mechanism assembly from the bot-
tom chassis.
Fig.13
Rear bracket
L
L K
M
Main board
Wire holder
Slots
Wire (KD-AR960)
Wire
Rear bracket
Bottom chassis
P
P
N
FPC guide
Front door mechanism assembly
