(No.MA142)1-11
3.1.9 Removing the switch board
(See Figs.14 to 16)
• Prior to performing the following procedures, remove the front
panel assembly.
(1) From the back side of the front panel assembly, remove the
four screws Q attaching the rear cover assembly to the
front panel assembly. (See Fig.14)
(2) Release the twelve joints b of the front panel assembly and
remove the rear cover assembly. (See Fig.15)
(3) Take out the switch board from the front panel assembly.
(See Fig.16)
Note:
When removing the rear cover assembly and switch board, be
careful not to lose the comp. spring. (See Fig.16)

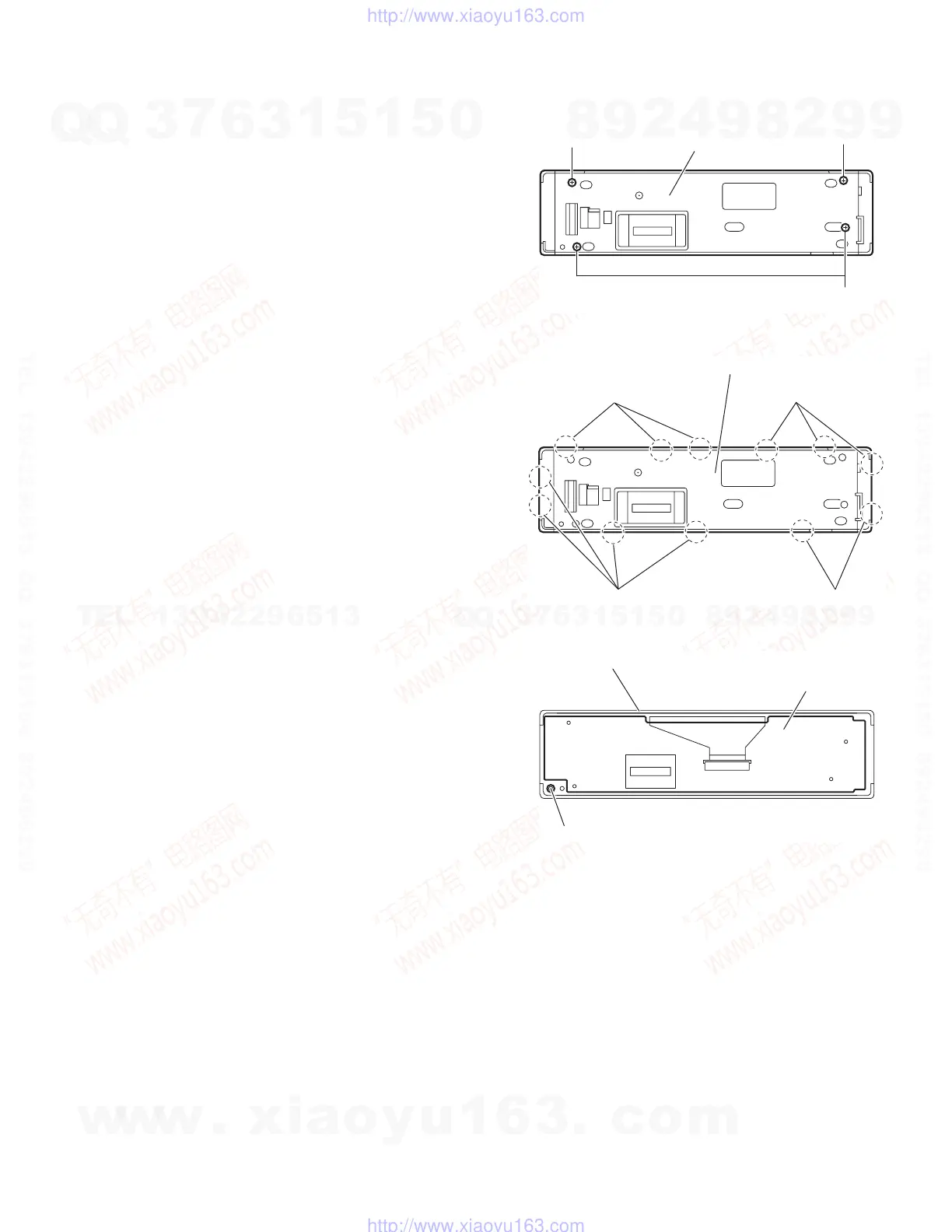

Fig.14
Fig.15
Fig.16
Q
Rear cover
Q
Q
Rear cover assembly
Joints b
Joints b
Joints b Joints b
Switch board
Front panel assembly
Comp. spring
