3.1.10 Removing the connector board

(See Figs.13 to 15)

• Remove the panel assembly, side heat sink, top chassis as-

sembly and front bracket assembly.

(1) From the front side of the front bracket assembly, remove

the two screws M. (See Fig.13.)

(2) Remove the joints b and remove the detach lever from the

front bracket assembly. (See Fig.13.)

Reference:

When attaching the detach lever, insert the end of the

torsion spring in the hole c of the front bracket assembly.

(See Fig.13.)

(3) From the back side of the front bracket assembly, remove

the screw N attaching the connector cover. (See Fig.14.)

(4) Remove the connector cover in the direction of the arrow

while releasing the tabs d in an upward direction. (See

Fig.14.)

(5) Remove the reinforce plate and take out the connector

board from the front bracket assembly. (See Fig.15.)

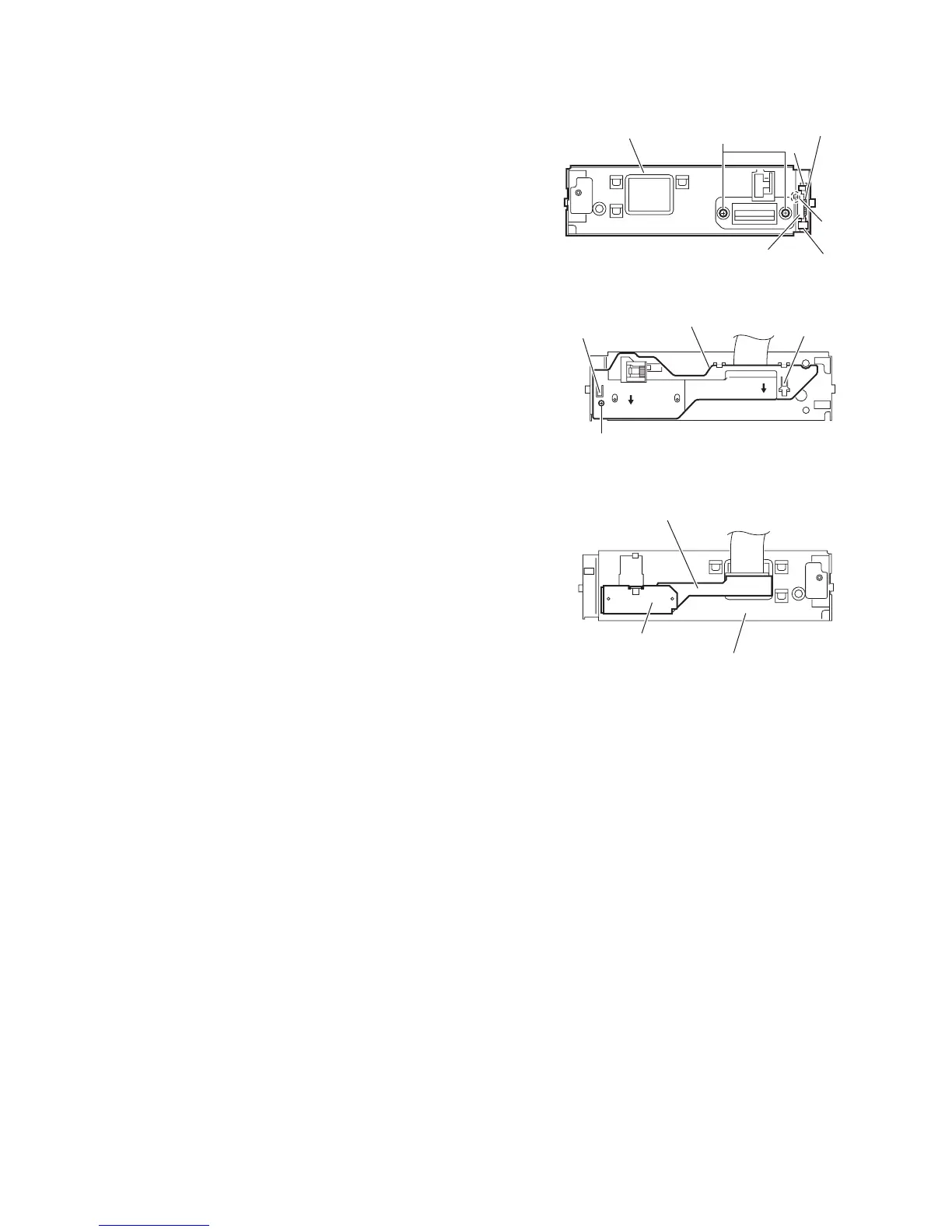

Fig.13

Fig.14

Fig.15

Detach lever

Front bracket assembly

Torsion spring

Connector cover

Connector board

Reinforce plate

Front bracket assembly

JVC KD-AVX1 Service Manual
