3.1.11 Removing the main board

(See Figs.16 and 17)

• Remove the panel assembly, side heat sink, top chassis as-

sembly, loading unit assembly and arm bracket assemblies

(L)/(R).

(1) From the back side of the main body, remove the screw P

attaching the rear bracket. (See Fig.16.)

(2) From the top side of the main body, take out the rod gear.

(See Fig.17.)

Reference:

When attaching the rod gear, attach the washers with it

as before. (See Fig.17.)

(3) Release the lock of the connector CN962

on the main

board in an upward direction and disconnect the flexible

wire. (See Fig.17.)

(4) Release the lock of the connector CN891

and disconnect

the card wire. (See Fig.17.)

(5) Remove the three screws P attaching the main board to the

bottom chassis assembly. (See Fig.17.)

(6) Take out the main board from the bottom chassis assem-

bly.

Reference:

When attaching the main board, attach the main board under

the sections e of the bottom chassis assembly as before. (See

Fig.17.)

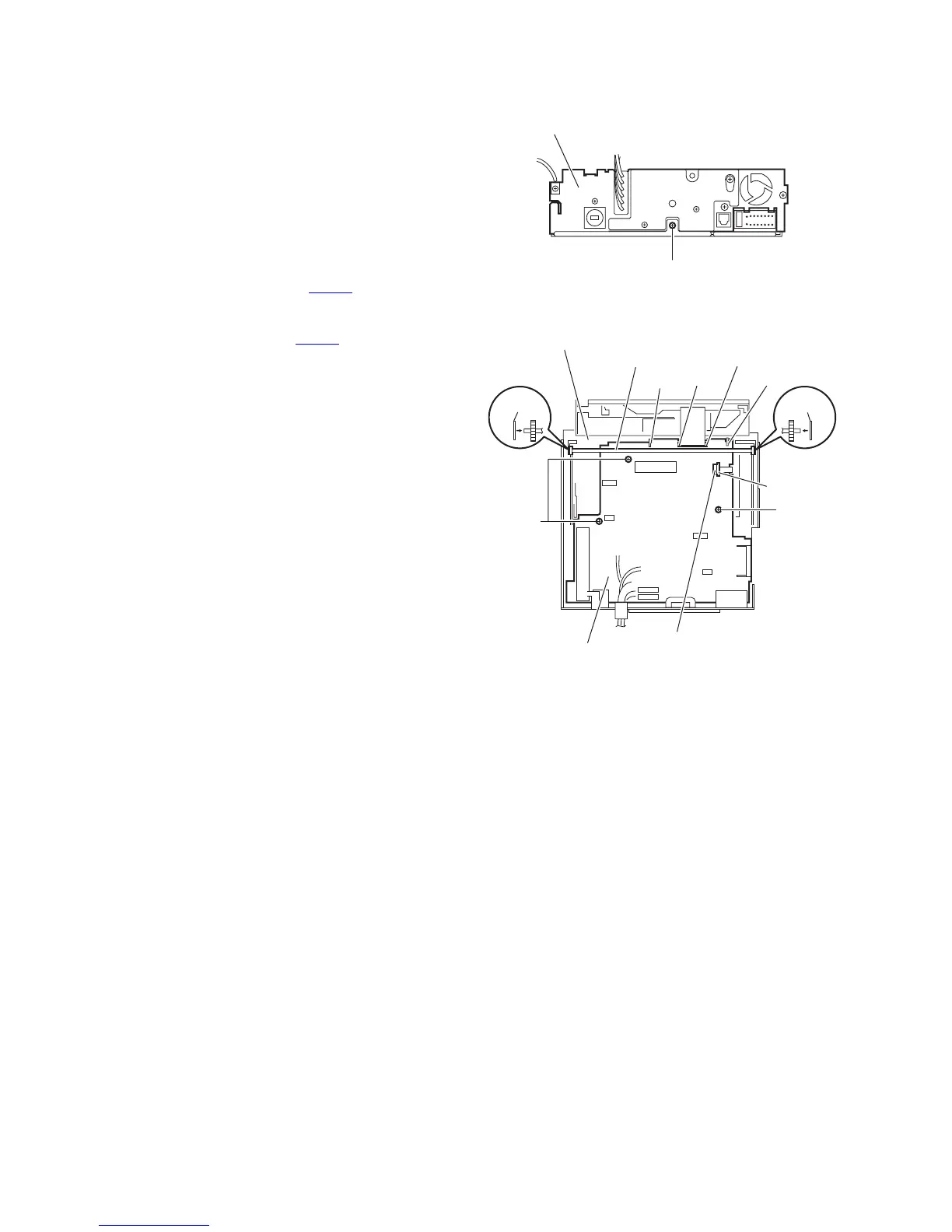

Fig.16

Fig.17

Rear bracket

Bottom chassis assembly

Main board

CN891

Lock

Rod gear

CN962

Lock

Washer
