JVC KD-DB922BT Quick Start Guide

3
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

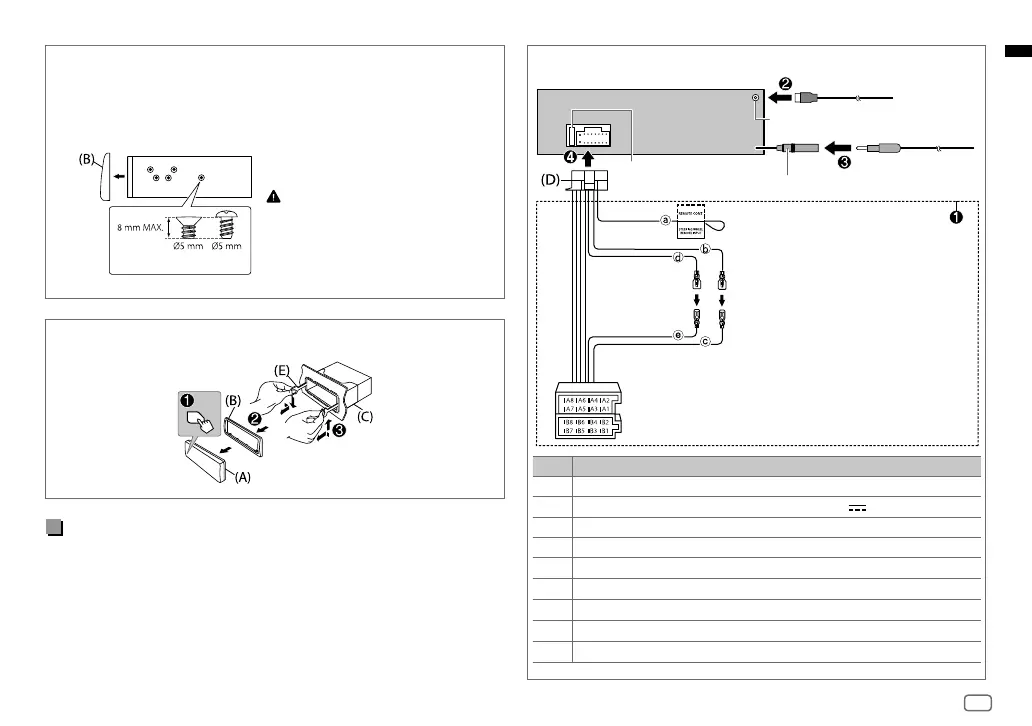

Removing the unit
Installing the unit (without mounting sleeve)
1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle
mounting bracket and secure the unit with screws (commercially
available).
Use only the specified screws.
Using wrong screws might damage
the unit.
Part list (supplied)
(A) Faceplate (×1)
(B) Trim plate (×1)
(C) Mounting sleeve (×1)
(D) Wiring harness (×1)
(E) Extraction key (×2)
Wiring connection
Pin Color and function
A4 Yellow : Battery
A5 Blue/white : Power control (12 V
350 mA)
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1, B2
Purple
] , Purple/black [
: Rear speaker (right)
B3, B4
Gray
] , Gray/black [
: Front speaker (right)
B5, B6
White
] , White/black [
: Front speaker (left)
B7, B8
Green
] , Green/black [
: Rear speaker (left)
Antenna terminal
Fuse (10 A)
a Light blue/yellow: To the steering
wheel remote control adapter
b Yellow: Battery wire
c Yellow: A4
d Red: Ignition wire
e Red: A7
ISO connectors
DAB antenna jack (SMB connector)
Self-tapping screw type
KD_DB922BT_E_B5K-0886-00_EN_1st Draft.indd 3KD_DB922BT_E_B5K-0886-00_EN_1st Draft.indd 3 12/8/2021 11:20:05 PM12/8/2021 11:20:05 PM
