JVC KD-DV5100 Service Manual

1-12 (No.MA149)
3.2.2 Removing the top cover
(See Fig.2)
(1) Remove the two screws D attaching the top cover on the
back of the body.
(2) Remove the top cover upward.
Reference:
When reassembling, set part b of the top cover under the
bending part c of the chassis frame.
3.2.3 Removing the mechanism section
(See Fig.2 to 4)
• Remove the top cover.
(1) From the bottom of the body, remove the screw E attaching
the lug wire. (See Fig.2.)
(2) Remove the two screws F attaching the right and left stop-
pers on the front side. (See Fig.2.)
(3) Remove the two floating springs on the bottom of the body.
(See Fig.3.)
(4) Move the mechanism section upward and remove from the
chassis frame.
The three damper springs come off from the dampers.
(See Fig.4.)
Caution:
• When reassembling, reattach the damper spring to the
damper respectively and insert the three shafts on the bot-
tom of the mechanism to the dampers.
• Before inserting the shaft to the dampers, apply IPA to the
hole of damper.

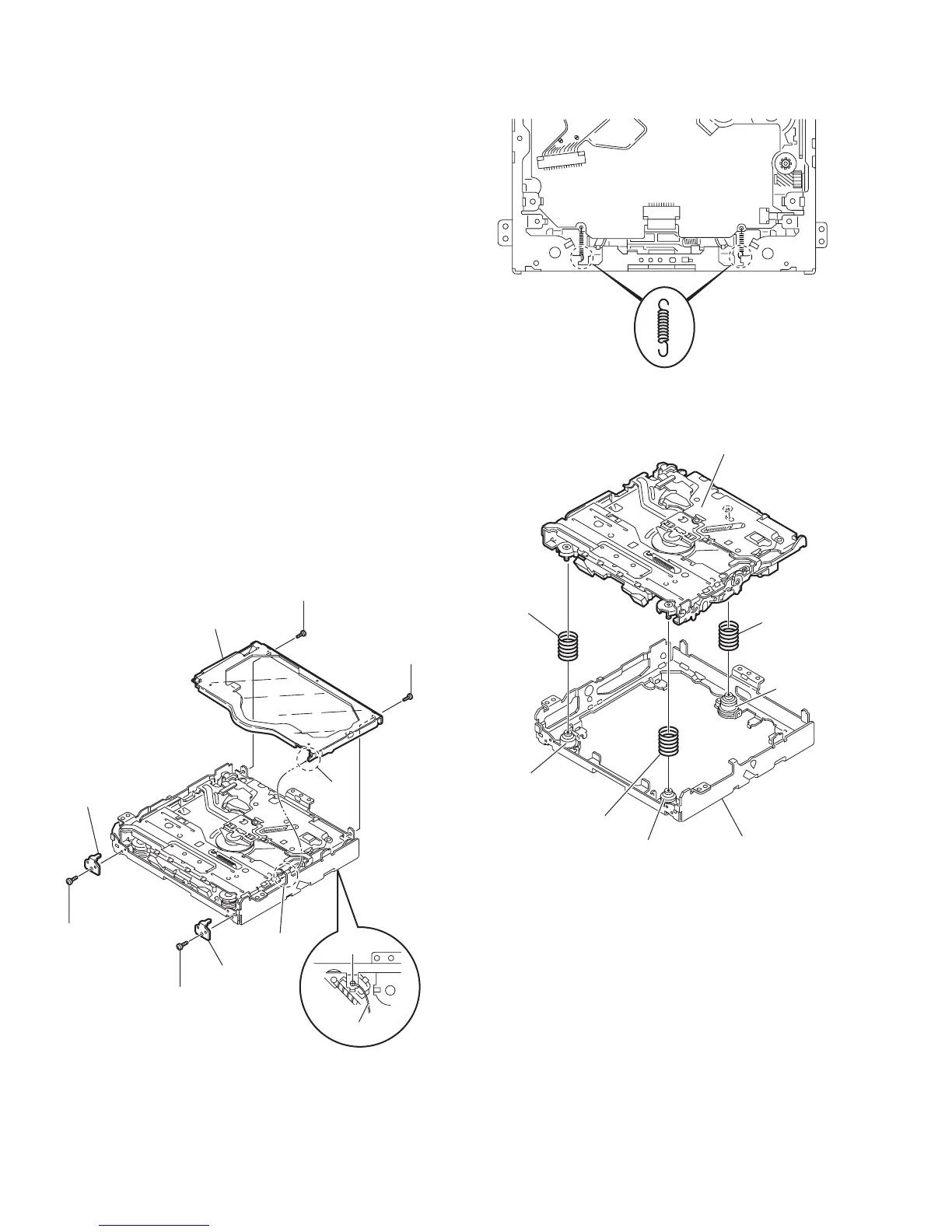

Fig.2
Fig.3
Fig.4
D
Top cover
Stopper
Stopper
F
F
b
c
E
Lug wire
D
Floating spring
Mechanism section
Damper (R)
(Purple)
Damper (F)
(Black)
Damper (F)
(Black)
Chassis frame
Damper SP.(F)
(Silver)
Damper SP.(F)
(Silver)
Damper SP.(R)
(Red)
