(No.MA151)1-17
3.2.7 Removing the loading arm assembly
(See Fig.13 , 14)
• Remove the top cover, the mechanism section and the front
unit.
(1) From the top of the body, move the loading arm assembly
from the front side upward, and release the bosses from
the right and left joints k and m of the chassis base assem-
bly.
(2) Release the boss from notch n of the connect arm on the
right side of the body, and release the boss from notch p of
the slide cam assembly on the left side.

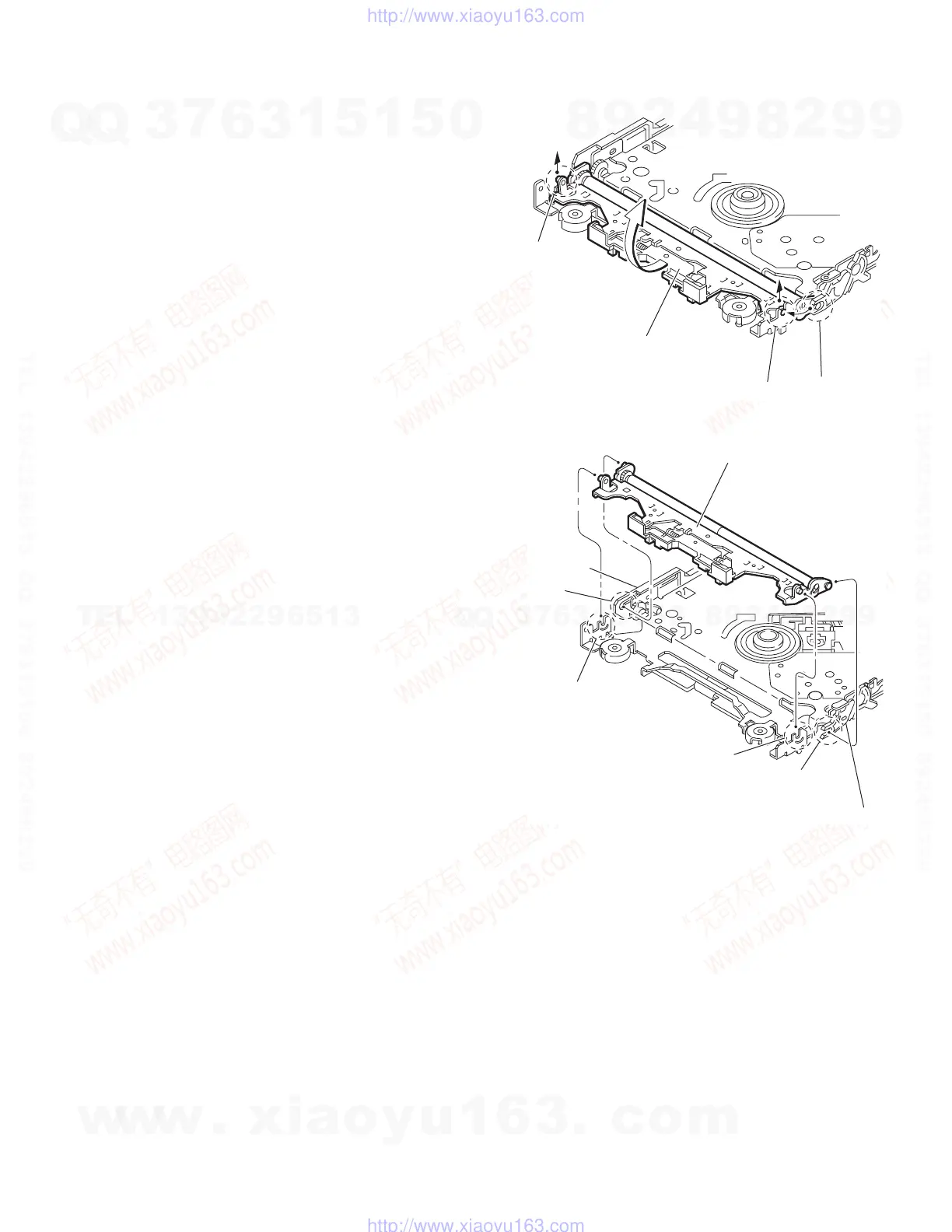

Fig.13
Fig.14
k
n
m
Loading arm assembly
k
n
m
Loading arm assembly
p
Side cam
assembly
Connect arm
