Connecting the parking brake wire
When installing the monitor in a location where it can be seen by the driver
Connect the parking brake wire to the parking brake system built in the car.
When installing the monitor in a location where it cannot be seen by the driver
Connect the parking brake wire to metallic body or chassis of the car.
Connecting the crimp connector
C
Parking brake wire
(light green)
To metallic body or
chassis of the car
Parking brake switch
(inside the car)
Parking brake
Parking brake wire (light green)
A
Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious
damage to this unit.
The leads of the power cord and those of the connector from the car body may be different in color.
*
1
Not supplied for this unit.
*
2
Before checking the operation of this unit prior to installation, this lead must be connected, otherwise power cannot be turned on.
*
3
To listen to disc playback sound while in Dual Zone operations (see page 28 of INSTRUCTIONS).
Wire connecting the battery and
the parking brake switch.
Attach the parking brake
wire to this point.
Contact the metallic part of the
crimp to the wires inside.
Pinch the crimp firmly.

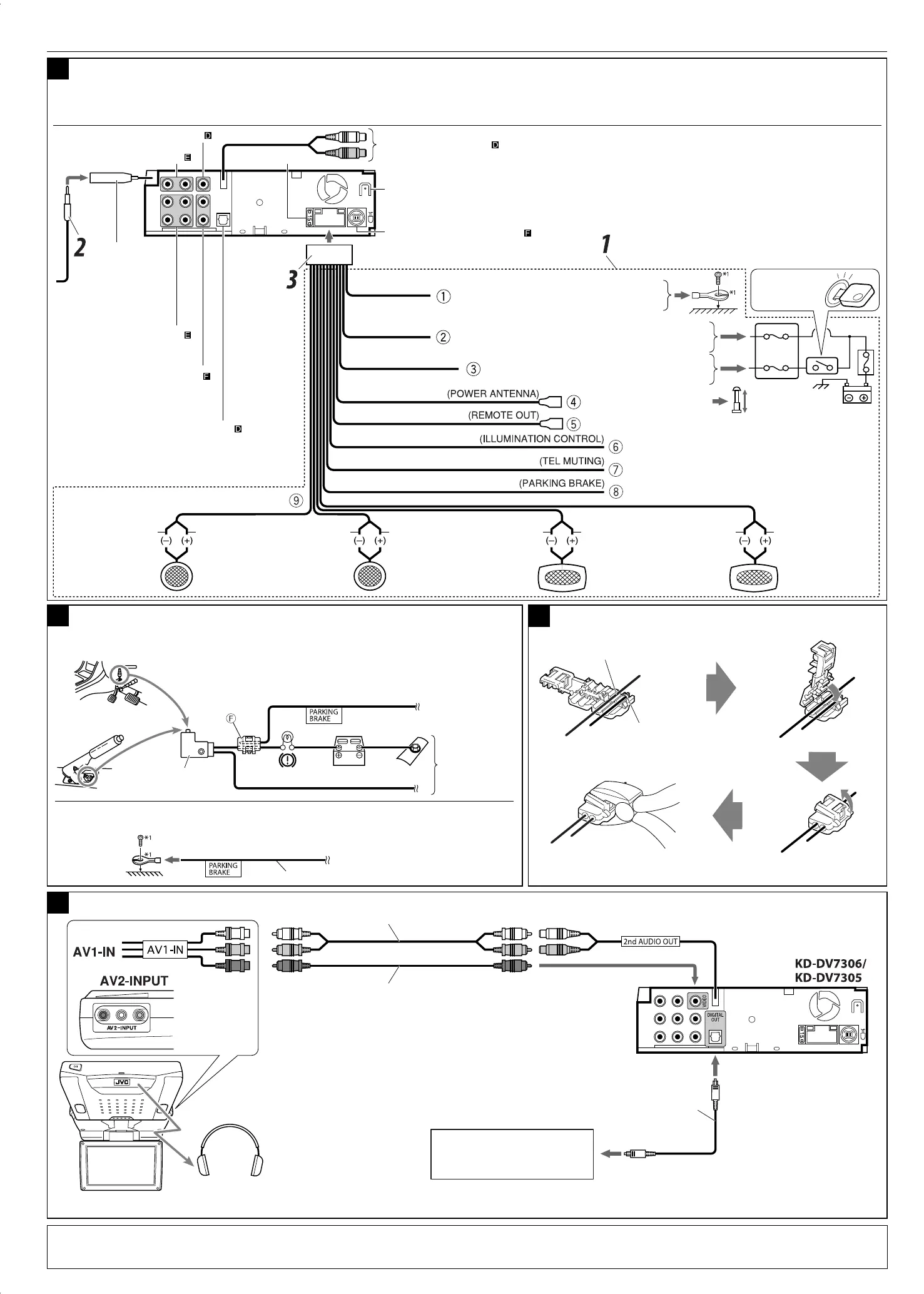

Typical connections
ELECTRICAL CONNECTIONS
To external components (see diagram )
Light green
VIDEO (see diagram
)
DIGITAL OUT (see diagram
)
To parking brake, metallic body or chassis of the car
15 A fuse
Black
Blue with white stripe
Red
Yellow
*
2
To metallic body or chassis of the car
Ignition switch
Fuse block
To an accessory terminal in the fuse block
To the remote lead of other equipment (200 mA max.)
To a live terminal in the fuse block connecting to the car battery
(bypassing the ignition switch) (constant 12 V)
LINE OUT (see diagram
)
Rear ground terminal
Left speaker (front)
Right speaker (front)
Left speaker (rear)
Right speaker (rear)
PurplePurple with black stripeGreenGreen with black stripeGrayGray with black stripeWhiteWhite with black stripe
LINE IN (see diagram
)
To the automatic antenna if any
(250 mA max.)
Blue
2nd AUDIO OUT (see diagram
)
SW (Subwoofer) (see diagram
)
Antenna connector
Brown
To cellular phone system
Orange with white stripe
To car light control switch
D
Required connections for DVD playback
Audio/video control amplifier or the
decoder compatible with the multichannel
digital sources
KV-MR9010
9-INCH WIDESCREEN MONITOR *
1
Digital optical cable *
1
Video cord *
1
KS-HP2 *
1
Cordless headphones *
3
or
Rear side
Signal cord
*
1
1 Connect the colored leads of the power cord in the order specified in the illustration below.
2 Connect the antenna cord.
3 Finally connect the wiring harness to the unit.
To Next Page
