3.2.4 Removing the chassis unit
(See Figs.8 and 9)
Prior to performing the following procedure, remove the top
cover and connector board.
(1) Remove the two suspension springs (L) and (R) attaching
the chassis unit to the frame.
CAUTION:
The shape of the suspension spring (L) and (R) are dif-
ferent. Handle them with care.
When reassembling, make sure that the three shafts
on the underside of the chassis unit are inserted to the
dampers certainly.

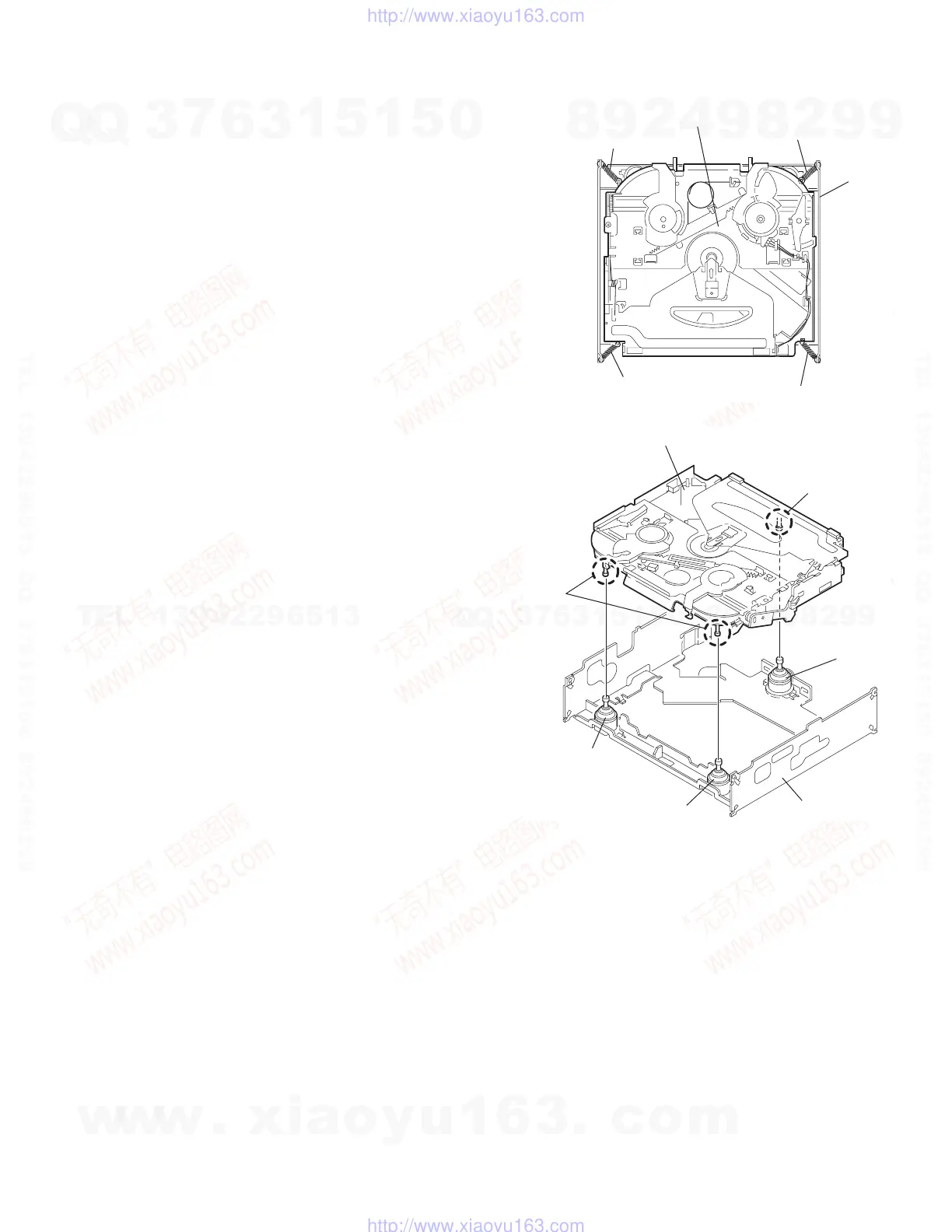

Fig.8
Fig.9
Suspension spring (L)
Suspension spring (L)
Suspension spring (R)
Suspension spring (R)
Chassis unit
Frame
Chassis unit
Frame
Shafts
Shaft
Dampe
r
Damper
Damper
