1-18 (No.MA136)
3.2.11 Removing the mode sw. / select lock arm
(See Figs.22 and 23)
Prior to performing the following procedure, remove the top
plate assembly.
(1) Bring up the mode sw. to release from the link plate (joint t)
and turn in the direction of the arrow to release the joint u.
(2) Unsolder the wire of the mode sw. marked s if necessary.
(3) Turn the select lock arm in the direction of the arrow to re-
lease the two joints v.
(4) The select lock arm spring comes off the select lock arm at
the same time.

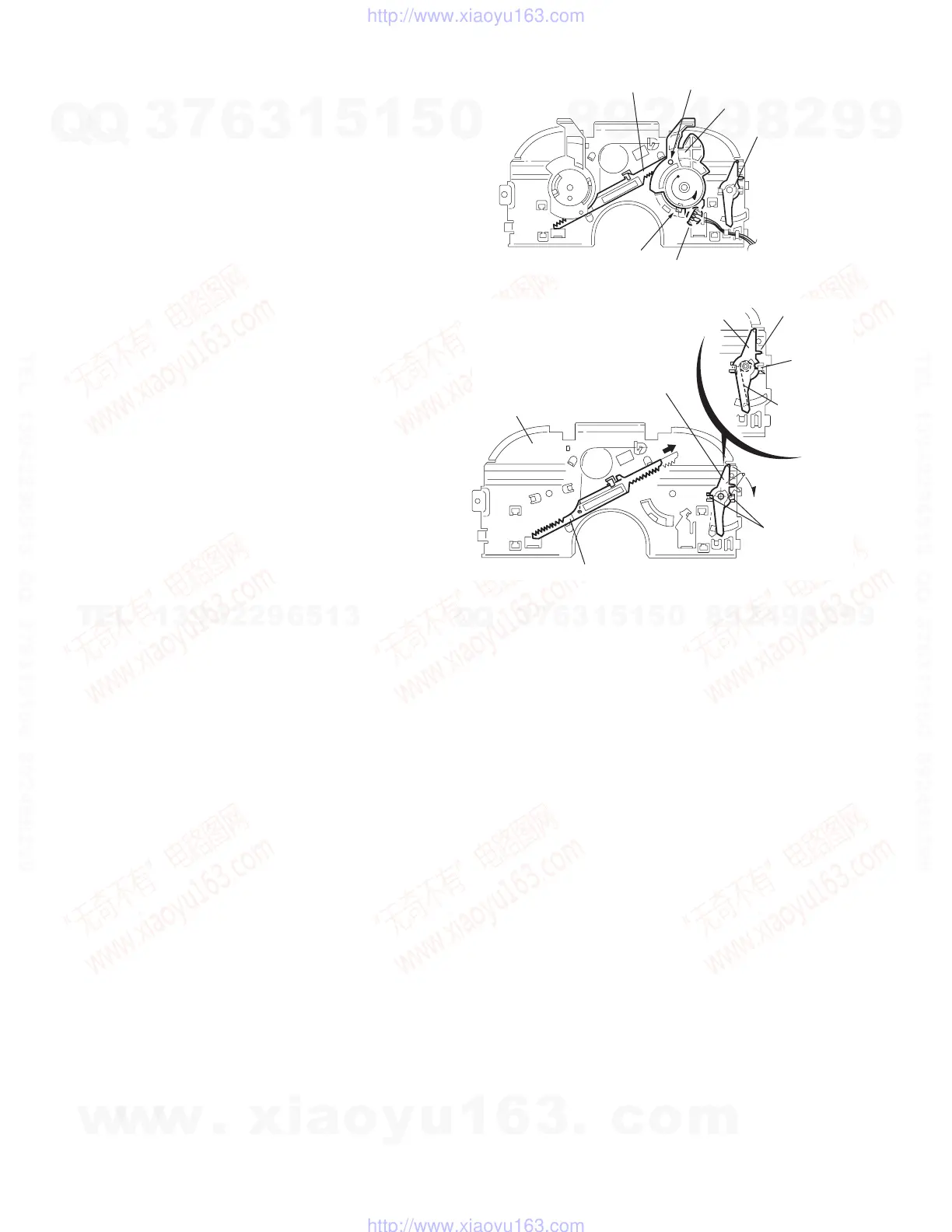

Fig.22
Fig.23
Mode sw.
Select lock arm
Joint t
Link plate
Joint u
s
Top plate
Top plate
Select lock arm
Select lock
arm spring
Select lock arm
Link plate
Joints v
Hook w
w
w
w
.
x
