3-4

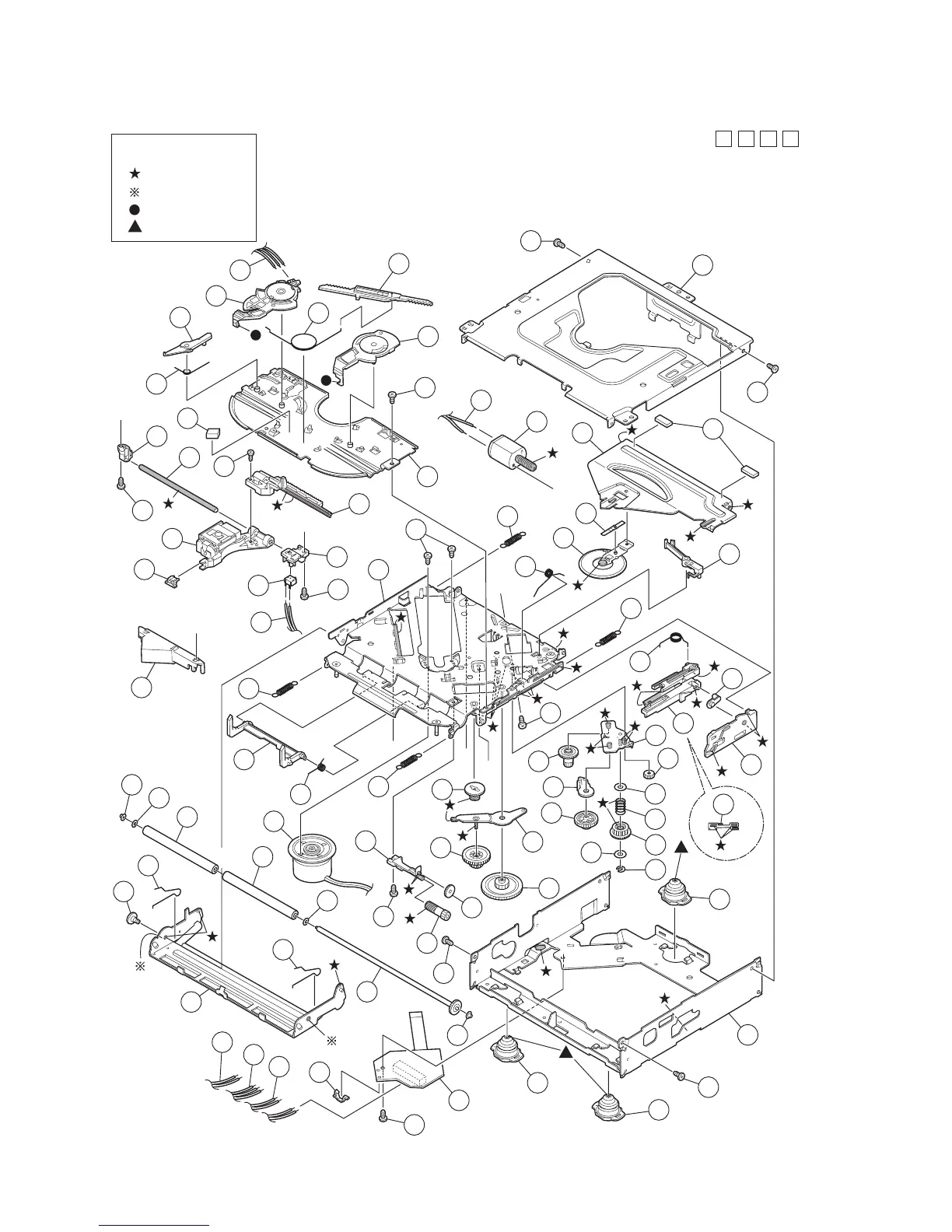

CD mechanism assembly and parts list
Grease
TNG-87
GP-501MK
CFD-005Z
GP-501A
Block No.
M
M
M
B
A
A
C
C
D
D
B
a
a
B
TN-2001-1011
111
2
111
37
27
32
23
13
15
99
28
98
83
12
86
121
16
17
124
4
125
1
111
3
3
71
111
93
111
91
92
113
88
89
82
87
20
18
115
90
32
30
38
114
11
85
25
73
111
33
34
74
72
35
26
31
22
36
116
29
112
19
61
24
112
62
21
38
76
95
96
14
97
100
123
81
94
77
75
74
73
84
94
101
100
122
93
75
83
